Relay Box: Application and ID

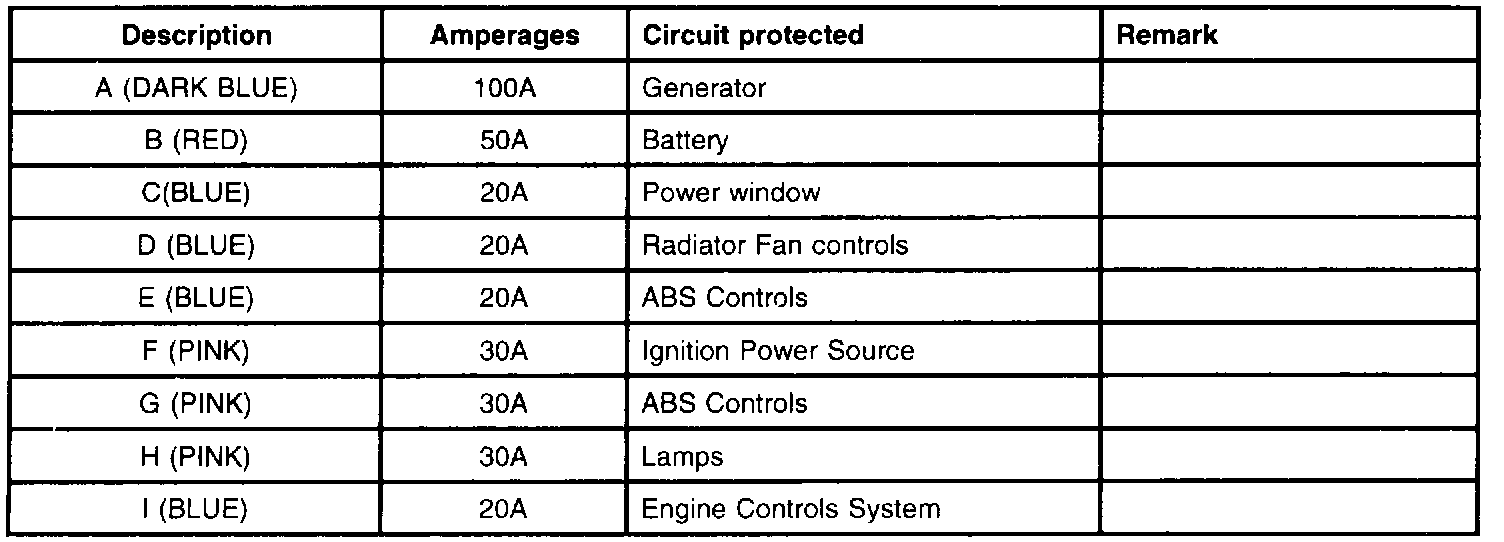

Engine Compartment Relay And Fuse Box - Layout:



Engine Compartment Relay And Fuse Box - Circuit:
