Lift and Support Points

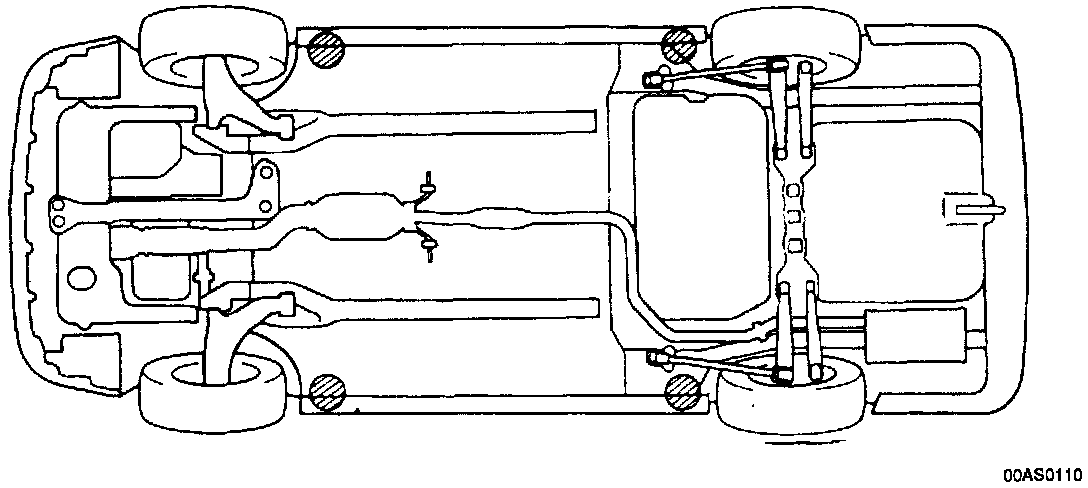

HOISTING POINTS

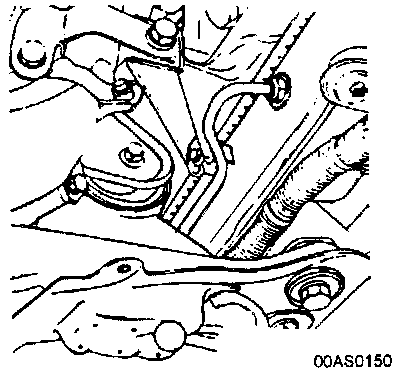

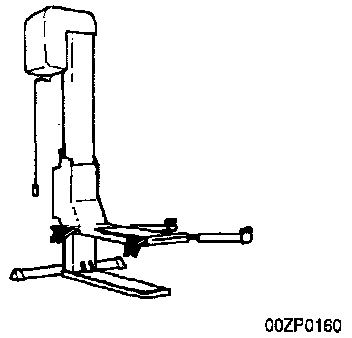

When using a single-post lift

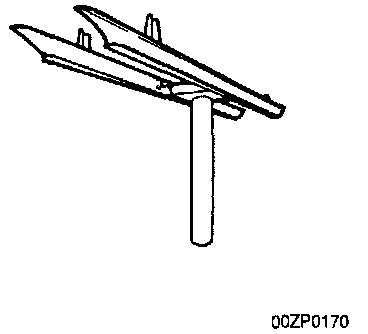

When using a free wheel type auto lift

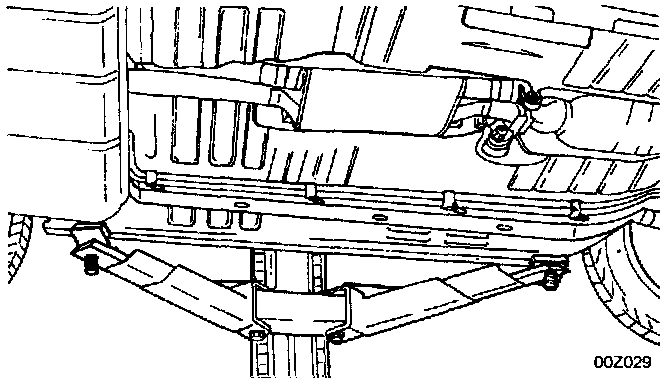

When using double-post lift

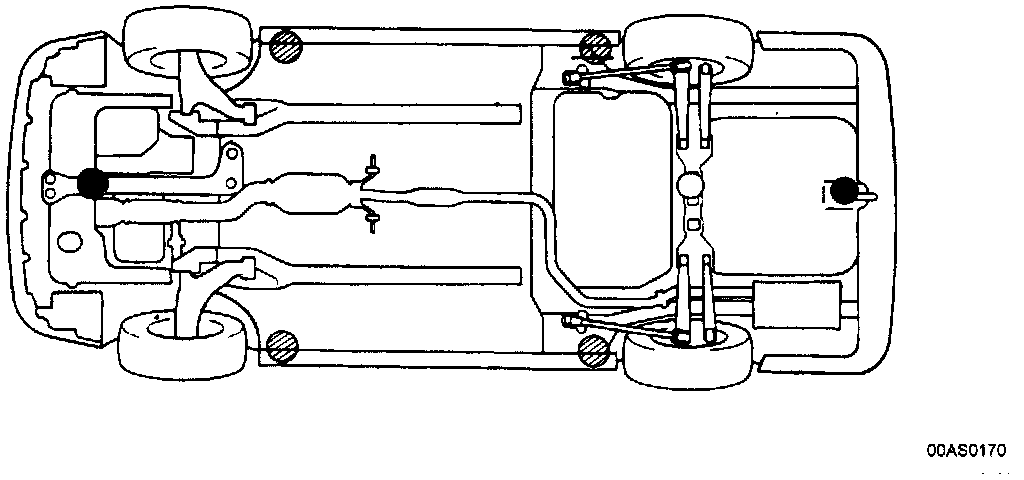

JACKING POINTS





When using a floor jack

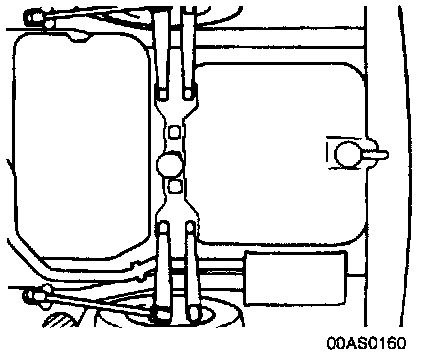

When using the jack provided with the vehicle (for reference)

NOTE: Do not support car at locations other than the specified support points. This will cause damage to the body.
