Accelerator Pedal Assembly - Manual Revision

Group: FUEL SYSTEM

Number: 96-30-001

Date: MARCH 1996

Model: ACCENT

Subject
ACCELERATOR PEDAL ASSEMBLY (SHOP MANUAL REVISION)

DESCRIPTION:

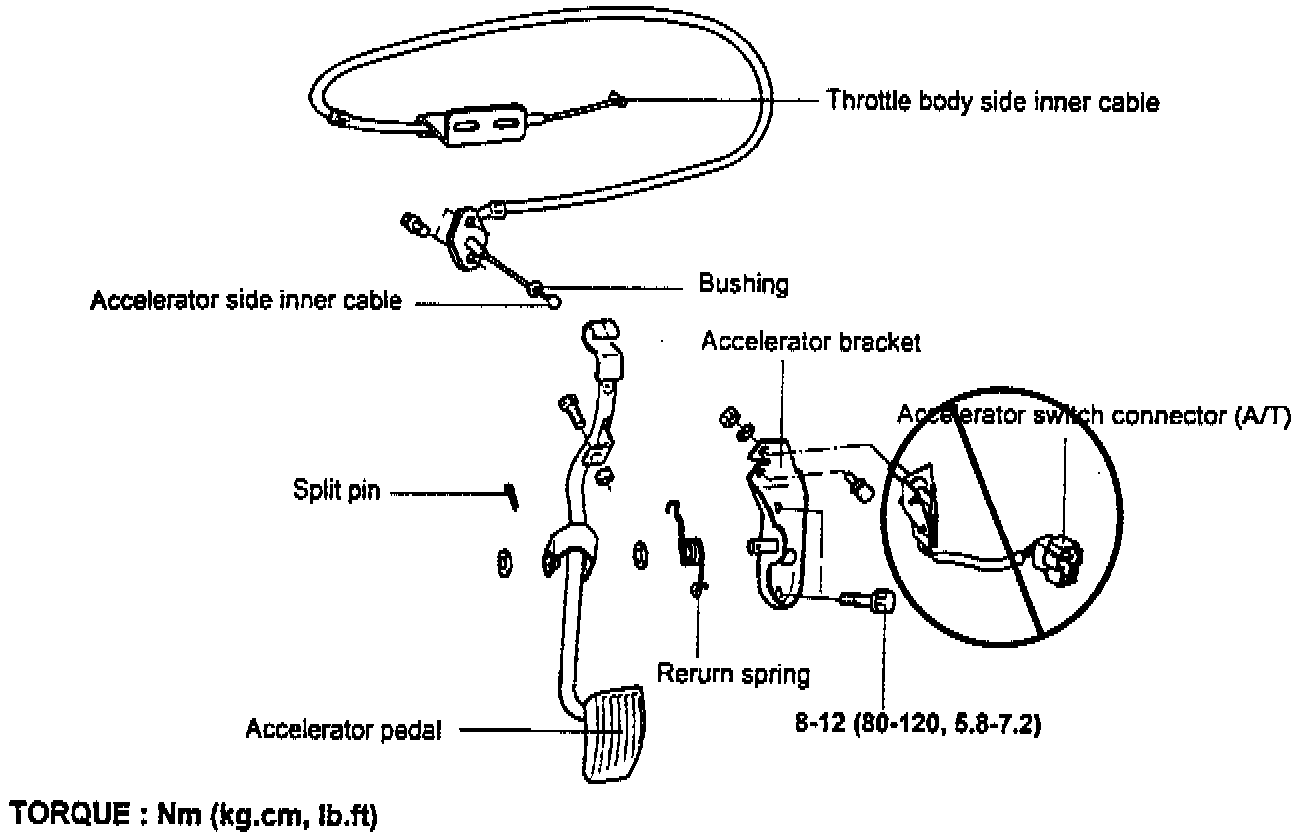

The 1995/1996 Accent shop manuals incorrectly include an accelerator switch as part of the accelerator pedal assembly. The diagrams on pages 31-96 (1995 manual) and FL-97 (1996 manual) should not include an accelerator switch and connector. When referring to these illustrations, disregard the accelerator switch reference. See illustration.

Note:
Please write this TS8 number in the revision box on the relevant pages of of the 1995 and 1996 Accent Shop Manuals.
