Engine - Engine Mount Bracket Torque Revision

Group
20 - ENGINE MECHANICAL

Number
97-20-001

Date
01-1997

Model
Accent 1995-1997

Subject
ENGINE MOUNT BRACKET TORQUE SPECIFICATION (SHOP MANUAL CORRECTION)

DESCRIPTION:

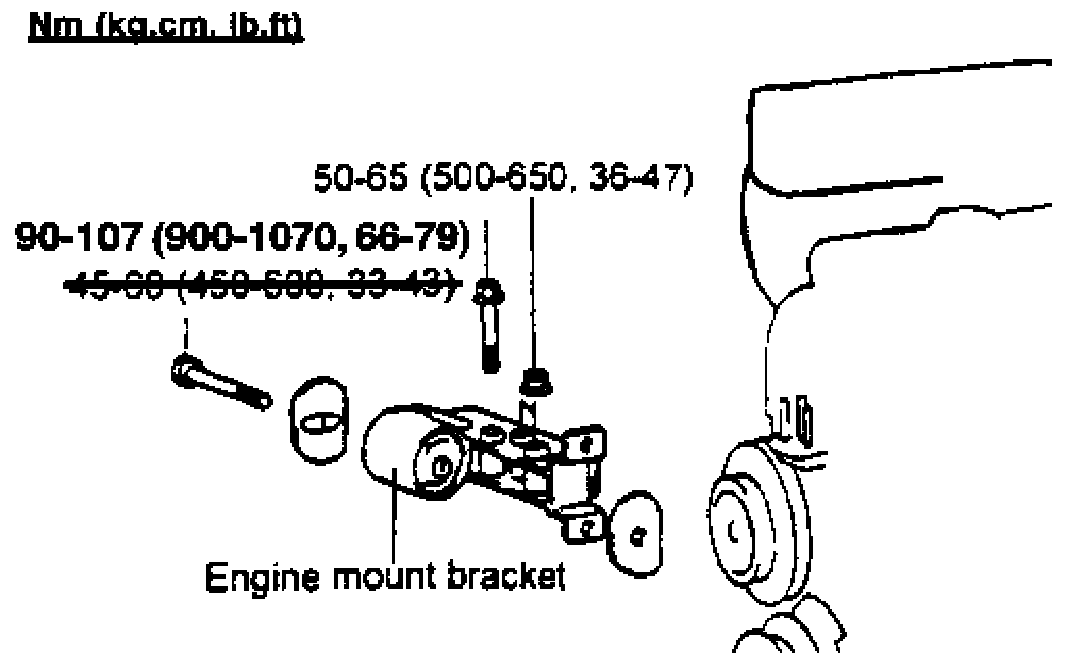

The torque specification for the engine mount bracket in the 1995-97 Accent Shop Manuals is incorrect. The correct torque specification is 90-107 Nm 900-1070 kg.cm (66-79 lb.ft)





Please make the correction as indicated, and write the TSB number at the bottom of the appropriate pages in the 1995-97 Accent Shop Manuals for future reference.

PLEASE CHANGE THE FOLLOWING SHOP MANUAL PAGES:

^ 1995 Accent Shop Manual: page 20-19

^ 1996 Accent Shop Manual: page EM-21

^ 1997 Accent Shop Manual: page EM-22
