M/T - Control Shaft Assembly Procedure
Group40 - TRANSAXLE
Number
98-40-011
Date
10-1998
Model
Accent 1995-1999
Subject
CONTROL SHAFT ASSEMBLY PROCEDURE MANUAL TRANSAXLE
DESCRIPTION
The purpose of this bulletin is to provide you an assembly procedure for the control shaft on all Accent M5AF3 Manual Transaxle.
The photo shows the individual control shaft components required for the assembly. They are placed in appropriate order for assembly.
PROCEDURE
1. Insert the rubber boot onto the control shaft.

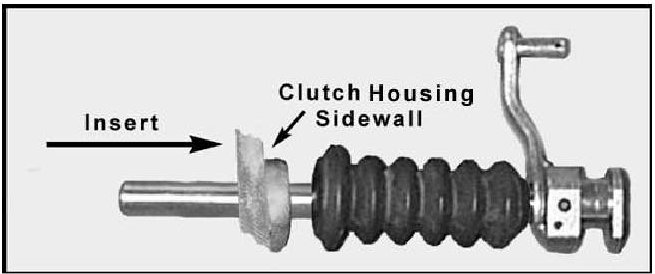

2. Insert the control shaft with the boot into the clutch housing hole.
NOTE
Insert the control shaft partially into the clutch housing to allow room for the remaining components to be installed.

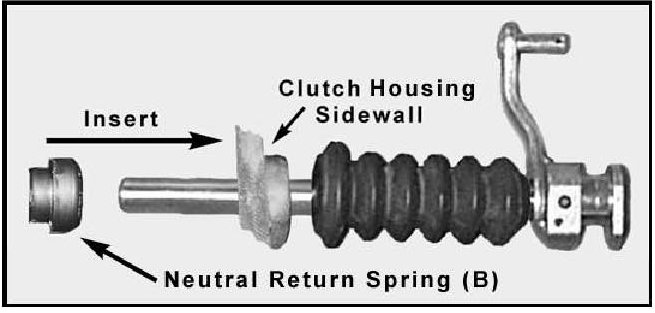

3. Insert the neutral return spring (B) onto the control shaft.
NOTE
Larger diameter of the neutral return spring (B) should be toward the side wall of the clutch housing as shown above.

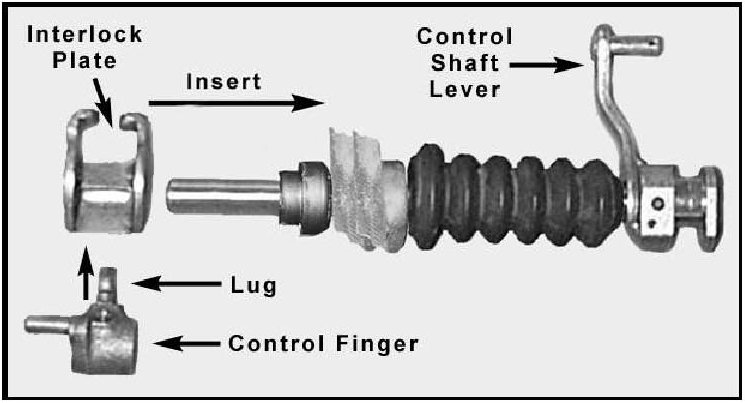

4. Slide the control finger inside the interlock plate, and then slide the assembly onto the control shaft.
NOTE
The lug on the control finger should point in the same direction as the control shaft lever.
5. Insert the reverse plate followed by the stopper plate aligned as shown in the two photos.
6. Install the neutral return spring (A) as shown in the photo.
7. Push the control shaft assembly into the clutch housing support hole.
8. Push the lock pin through the control finger and control shaft.
9. Complete the transaxle assembly following the steps outlined in the Shop Manual.
