Campaign - ECM Wiring Harness Rerouting Re-Issue
Group01 - RECALL BULLETINS
Number
97-01-002
Date
04-1997
Model
Accent 1995
Subject
1995 ACCENT ECM WIRING HARNESS ROUTING (25)
THE TSB, PREVIOUSLY ISSUED AS 95-01-003, HAS BEEN RE-ISSUED IN CONJUNCTION WITH THE SECOND CUSTOMER NOTICE LETTER INSPECTION/REPAIR PROCEDURE:
1. Using a flashlight, look under the instrument panel towards the clutch pedal pivot.

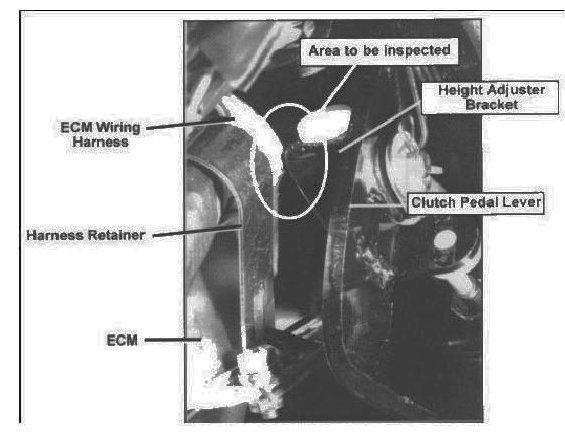

2. Inspect the area between the clutch pedal lever height adjuster bracket and ECM (see photo). Verify the bracket does not contact the ECM wiring harness as the pedal is depressed and released. The minimum clearance between the bracket and ECM harness should be 3/8" (10 mm).
NOTE
If the bracket has contacted the ECM harness and abrasion or damage to the ECM harness insulation has occurred, repair the insulation prior to proceeding to Step 3.
3. If the ECM harness is closer than 3/8" (10 mm) to the clutch lever height adjuster bracket during any point of clutch pedal travel, the ECM harness should be moved away from the bracket, and routed over the top of the ECM. The harness retainer should then be bent towards the ECM case to secure the harness.
4. Place a punch mark over the 16th digit on the VIN plate located on the drivers door to indicate that this campaign has been completed.
NOTE
Always check for a VIN plate punch mark before performing this campaign procedure.
EFFECTIVE PRODUCTION DATE: Thru 02/06/1995
CAMPAIGN CLAIM INFORMATION:
SUBMIT CLAIMS FOR THE ABOVE CAMPAIGN OPERATION CODES USING THE CAMPAIGN CLAIM SCREEN.
