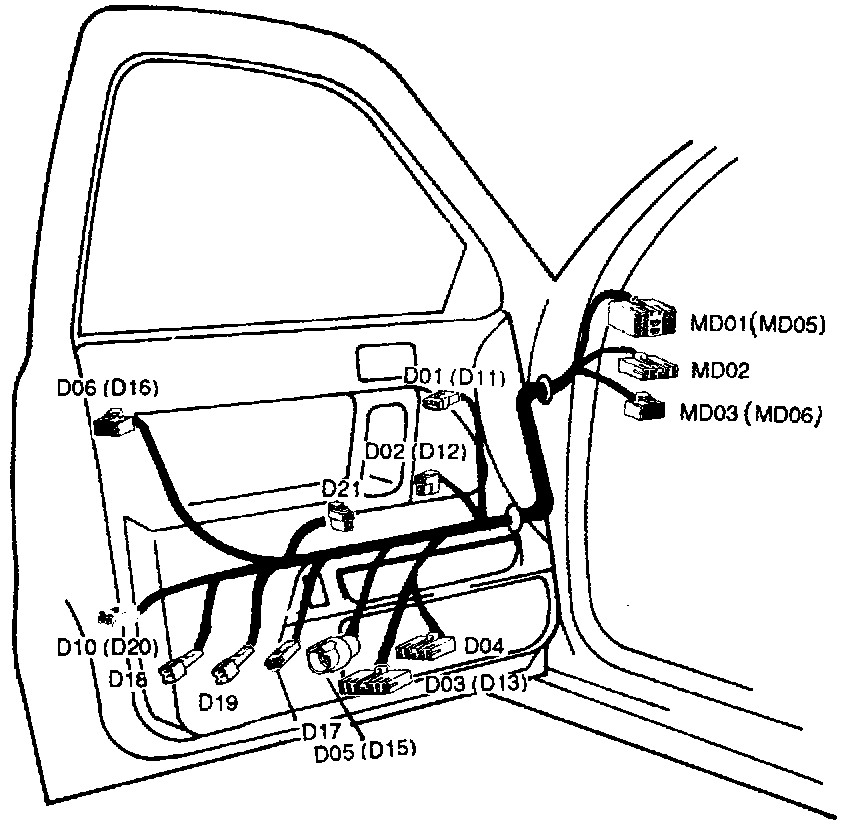

Door Harness (Front)

Front Door Harness:

D01 (D11) Outside mirror
D02 (D12) Speaker (FRT, LH)
D03 (D13) Power window switch
D04 Power Window switch
D05 (D15) Power window motor
D06 (D16) Central door locking actuator
D17 Door latch switch (FRT, RH)
D18 Shoulder retractor (FRT, RH)
D19 Lap retractor (FRT, RH)
D10 (D20) Door lamp
D21 Trunk lid switch
MD01 Connection with MAIN wiring harness (FRT LH)
MD02 Connection with MAIN wiring harness (FRT, LH)
MD03 Connection with MAIN wiring harness (FRT, LH)
MD05 Connection with MAIN wiring harness (FRT, RH)
MD06 Connection with MAIN wiring harness (FRT RH)
