Engine Harness

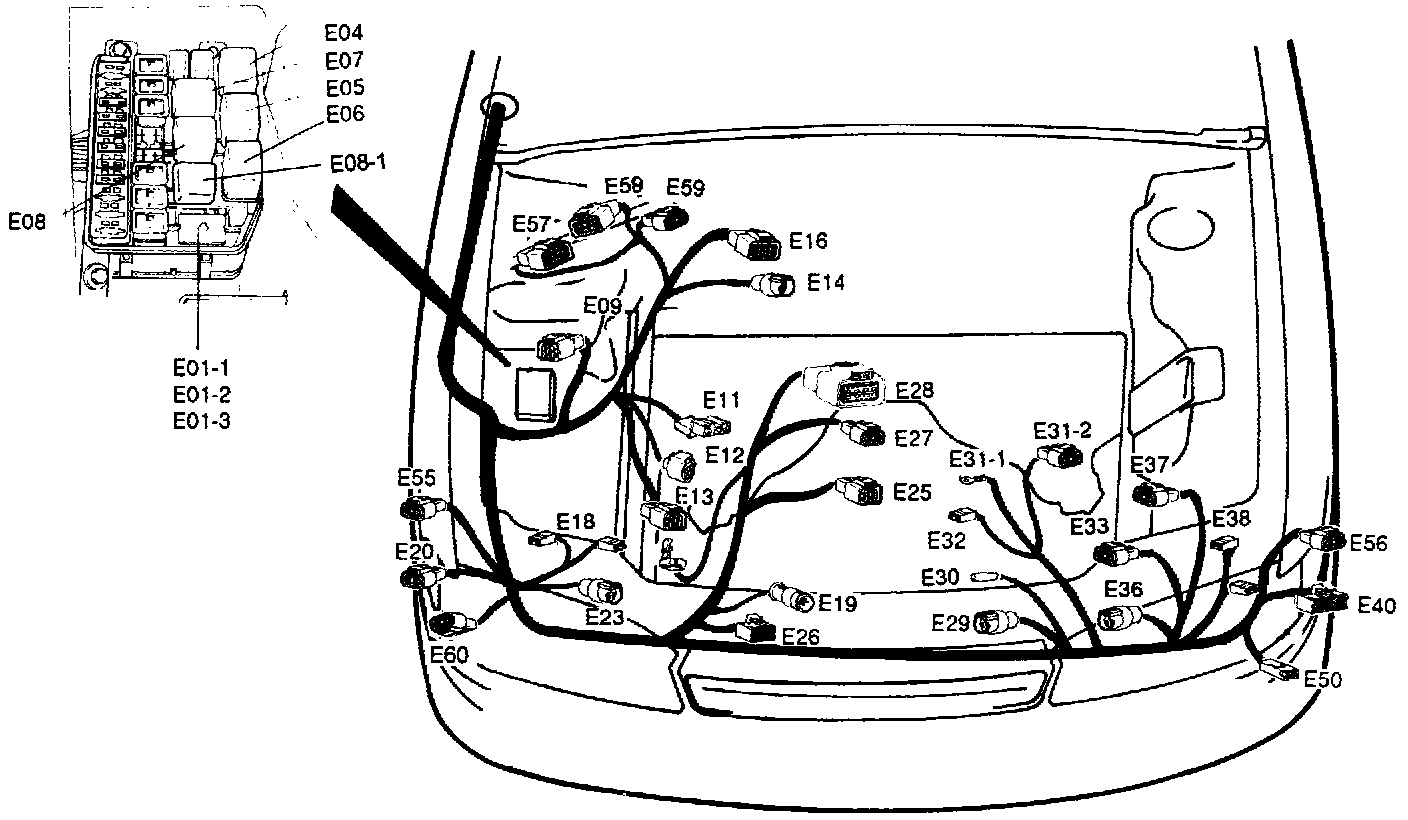

Engine Harness (Part 1 Of 2):

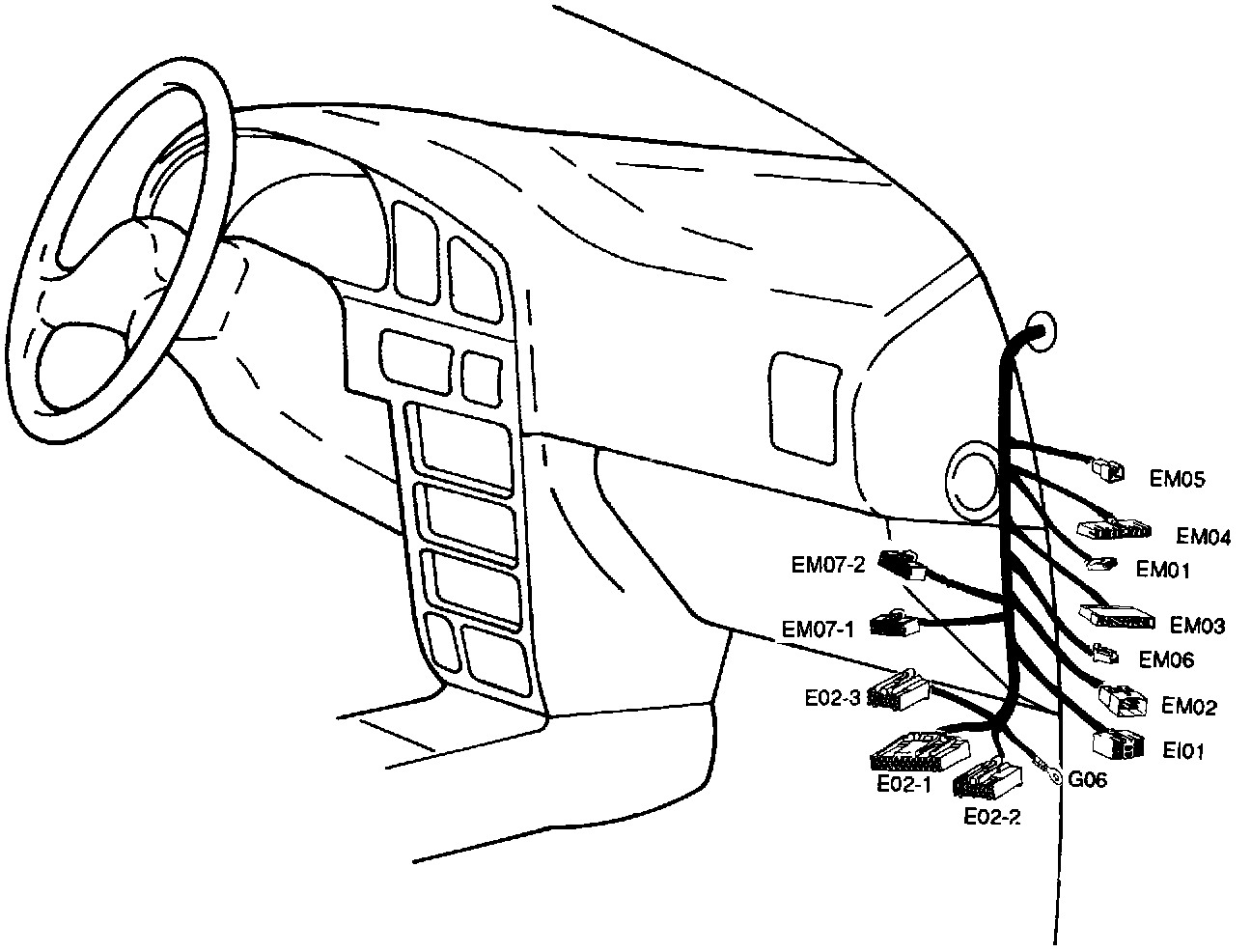

Engine Harness (Part 2 Of 2):

E01-1 Joint connector (IGN)
E01-2 Joint connector (TAIL LH)
E01-3 Joint connector (TAIL RH)
E04 Radiator fan control relay
E05 Condenser fan relay
E06 Head lamp relay
E07 Radiator fan relay
E08 Air conditioning relay
E08-1 Horn relay
E09 Cruise control actuator
E11 Kick down switch (A/T)
E12 Oil temperature sensor (A/T)
E13 Pulse generator (A/T)
E14 Brake fluid sensor
E16 Wiper motor
E18 Horn (RH)
E19 Thermo sensor (U.S.A)
E20 Front turn signal lamp (RH)
E23 Head lamp
E01-1 Joint connector (IGN)
E01-2 Joint connector (TAIL LH)
E01-3 Joint connector (TAIL RH)
E04 Radiator fan control relay
E05 Condenser fan relay
E06 Head lamp relay
E07 Radiator fan relay
E08 Air conditioning relay
E08-1 Horn relay
E09 Cruise control actuator
E11 Kick down switch (A/T)
E12 Oil temperature sensor (A/T)
E13 Pulse generator (A/T)
E14 Brake fluid sensor
E16 Wiper motor
E18 Horn (RH)
E19 Thermo sensor (U.S.A)
E20 Front turn signal lamp (RH)
E23 Head lamp
E25 T/A control solenoid (A/T)
E26 Radiator fan
E27 Back up lamp switch (M/T)
E28 Transaxle range switch (A/T)
E29 Condenser fan
E30 Power steering switch
E31-1 Generator (B+)
E31-2 Generator (S.L)
E32 Oil pressure switch
E33 Front turn signal lamp (LH)
E36 Head lamp (LH)
E37 Washer motor
E38 Horn (LH)
E40 DRL module
E55 Front sensor RH (ABS)
E56 Front sensor LH (ABS)
E57 ABS modulator
E58 ABS relay box connector 2
E59 ABS relay box connector 1
E60 DRL resistor
E02-1 TCM
E02-2 TCM
E02-3 TCM
EM01 Connection with MAIN wiring harness
EM02 Connection with MAIN wiring harness
EM03 Connection with MAIN wiring harness
EM04 Connection with MAIN wiring harness (A/T)
EM05 Connection with MAIN wiring harness (A/T, Cruise)
EM06 Connection with MAIN wiring harness (M/T, Cruise)
EM07-1 Connection with ABS wiring harness
EM07-2 Connection with ABS wiring harness
E101 Connection with CRASH PAD wiring harness
