Symptom Related Diagnostic Procedures



TROUBLESHOOTING

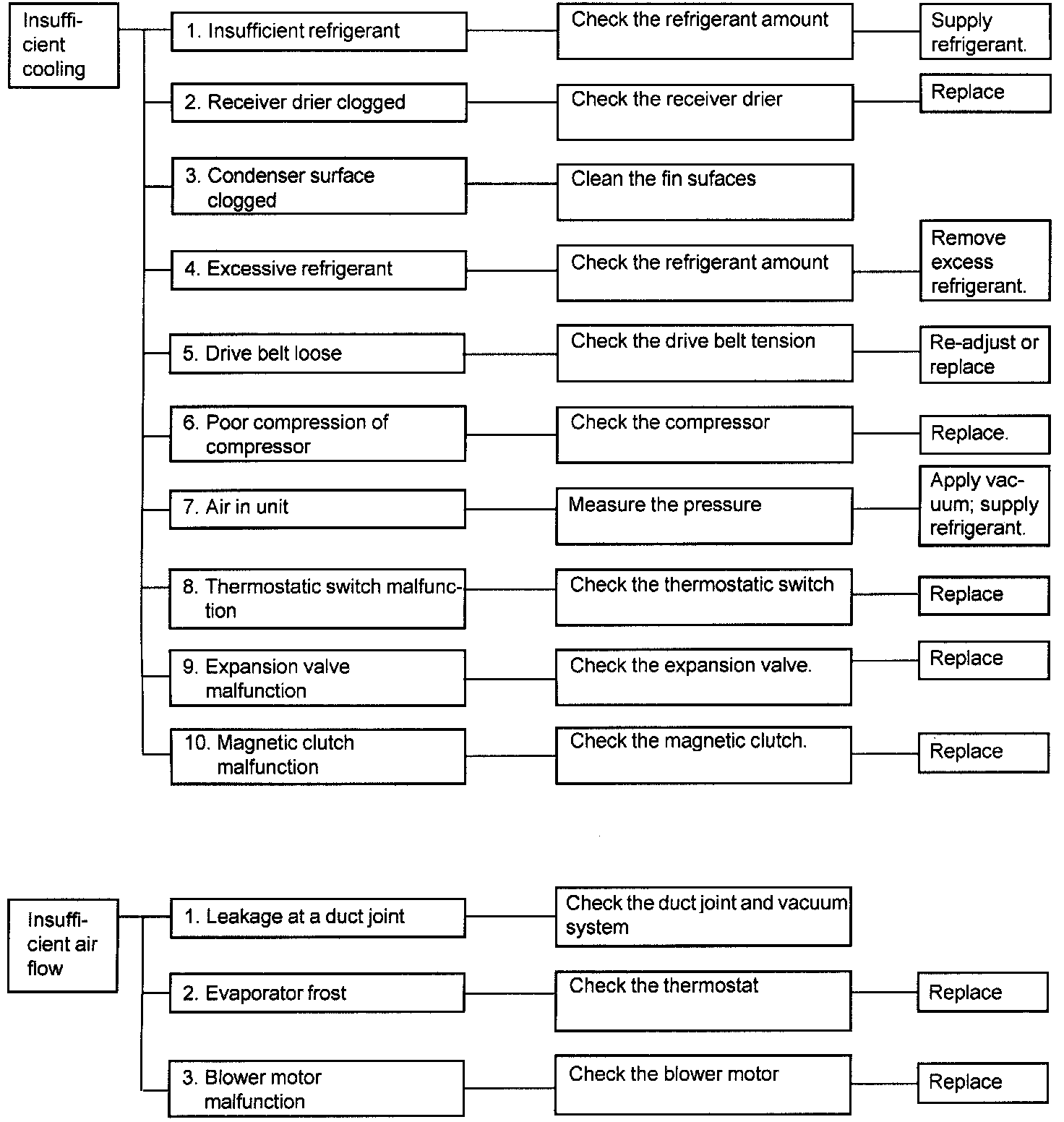

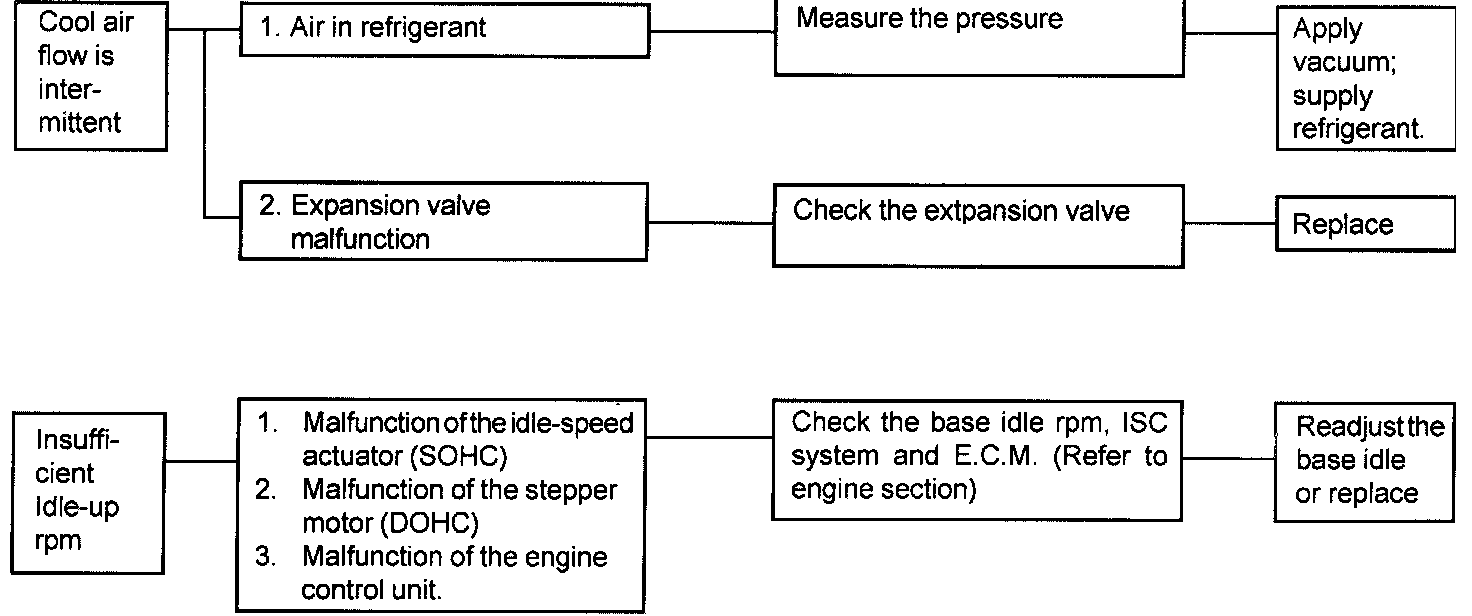

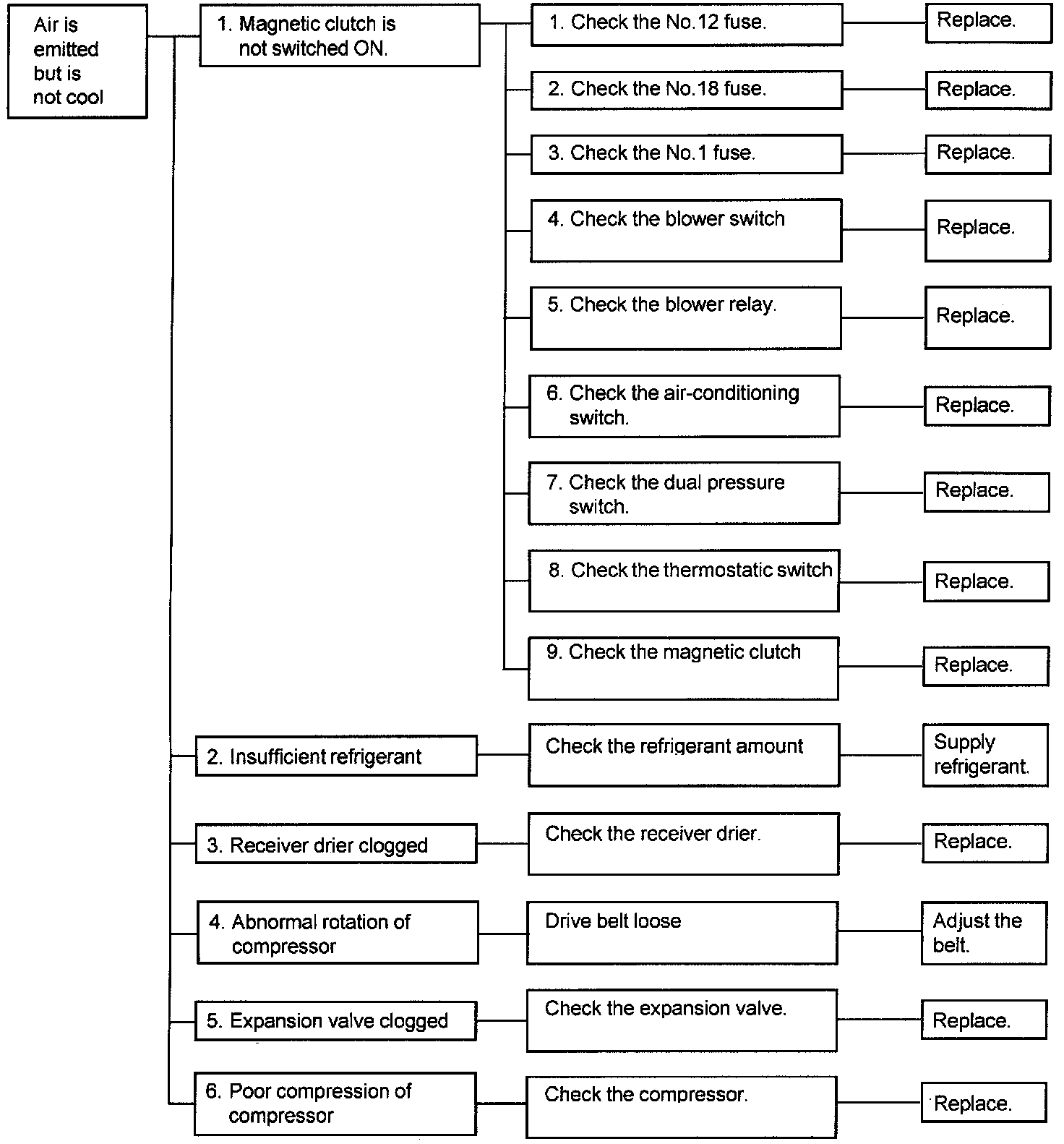

You will find the cause of the malfunction easily by using the following diagnostic chart. In this chart, the numbers indicate the order of priority of the cause of malfunction.
