Air Bag Systems: Application and ID

Warning/Caution Labels

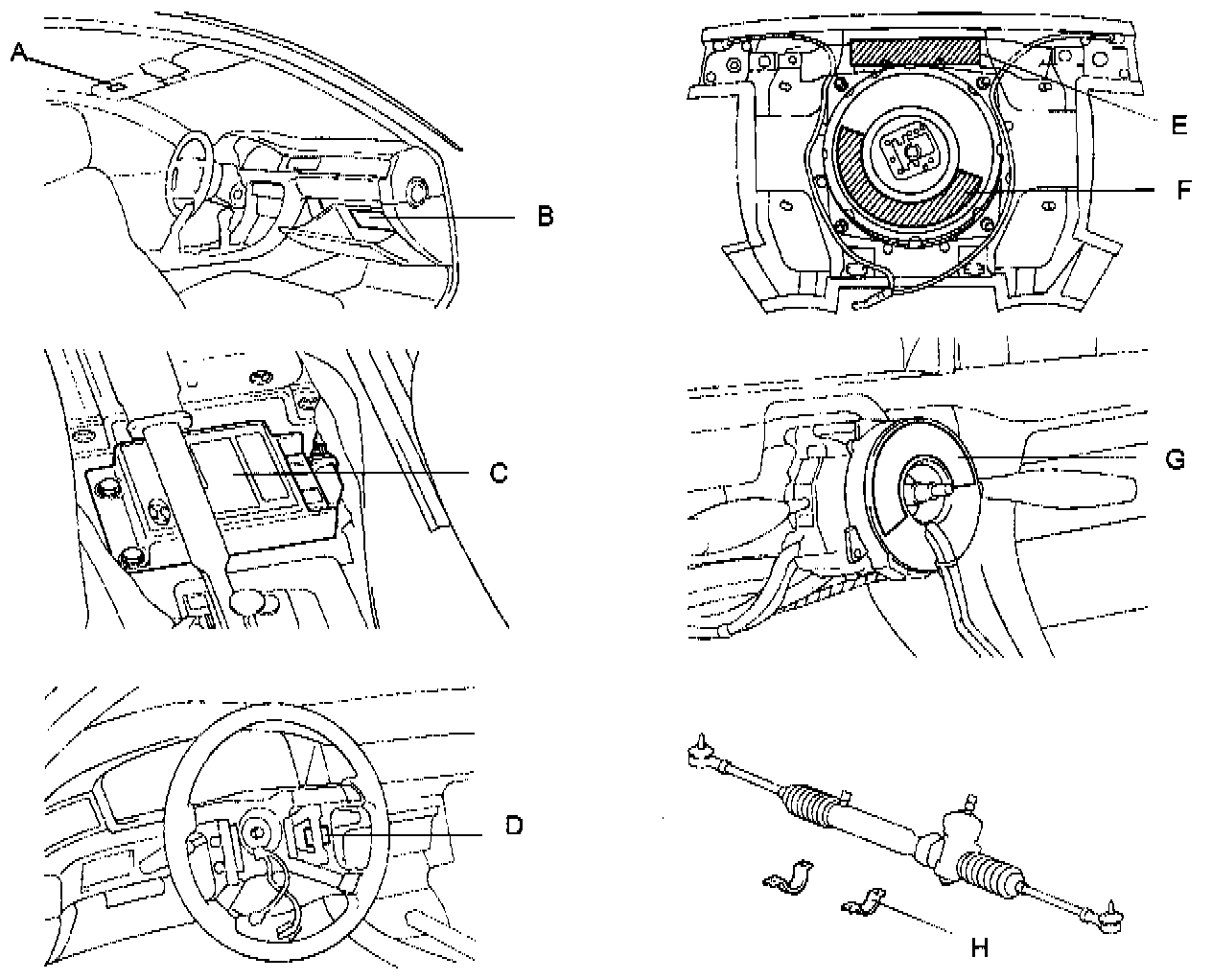

A number of caution labels relating to the SRS are found in the vehicle, as shown in the following illustration. Follow label instructions when servicing SRS.
If labels are dirty or damaged, replace them with new ones.

A. DAB ONLY
CAUTION
TO AVOID SERIOUS INJURY:
For maximum safety protection in all types of crashes, you must always wear your safety belt. Do not sit or lean unnecessarily close to the air bag. Do not place any objects over the air bag or between the air bag and yourself.

B. DAB ONLY
Air bag system is normal if "SRS" lamp, in cluster flashes approximately 6 times and then goes out after ignition key is turned on.
However, if any ofthe following conditions occur the system must be serviced.
1. "SRS" lamp does not light when key is turned on.
2. "SRS" lamp flashes or stays lit continuously.
3. The airbag has inflated.
Always fasten children in child-restraints placed in the rear seat.
Rear seating positions are safer for children. WARNING! failure to follow above instruction can result in injury to you or other occupants and children in the vehicle.
See "SRS" section in Owner's Manual for more information about airbag.

C. CAUTION: AIRBAG ESPS UNIT
Detach connector before unmounting. Assemble strictly according to manual instructions.

D. CAUTION: SRS
Before replacing steering wheel, read service manual, center front wheels and align SRS clock spring neutral marks.
Failure to do so may render SRS system inoperative, risking serious driver injury.

E. WARNING SRS
To help avoid personal injury due to unwanted inflation do not service or dispose of this unit without following instructions in the service manual.

F. Danger! Poison. Keep out of the reach of children. Contains sodium azide and potassium nitrate contents are poisonous and extremely flammable. Contact with acid, water, or heavy metals may produce harmful and irritating gases orexplosive compounds. Do not dismantle, incinerate, bring into contact with electricityofstore attemperature exceeding (93.3°C) 200°F.
First aid: lf contents are swallowed, induce vomiting. For eye contact flush eye with water for 15 minutes. lfgases from acid or water contact are inhaled, seek fresh air. In every case, get prompt medical attention.
For additional information, see material safety data sheet (MSDS) for this product.

G. CAUTION: SRS clock spring
This is not a repairable part. Do not disassemble or tamper.
If defective, remove and replace entire unit per service manual instructions.
Before replacement, read service manual, center front wheels and align neutral marks. Failure to follow instructions may render SRS system inoperative, risking serious driver injury.

H. CAUTION: SRS
Before removal of steering gearbox, read service manual, center front wheels and remove ignition key.
Failure to do so may damage SRS clock spring and render SRS system inoperative, risking serious driver injury.
