Home >> Hyundai >> 1995 >> Scoupe L4-1468cc 1.5L SOHC (12 VALVE) Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Trunk Lamp

Trunk Lamp

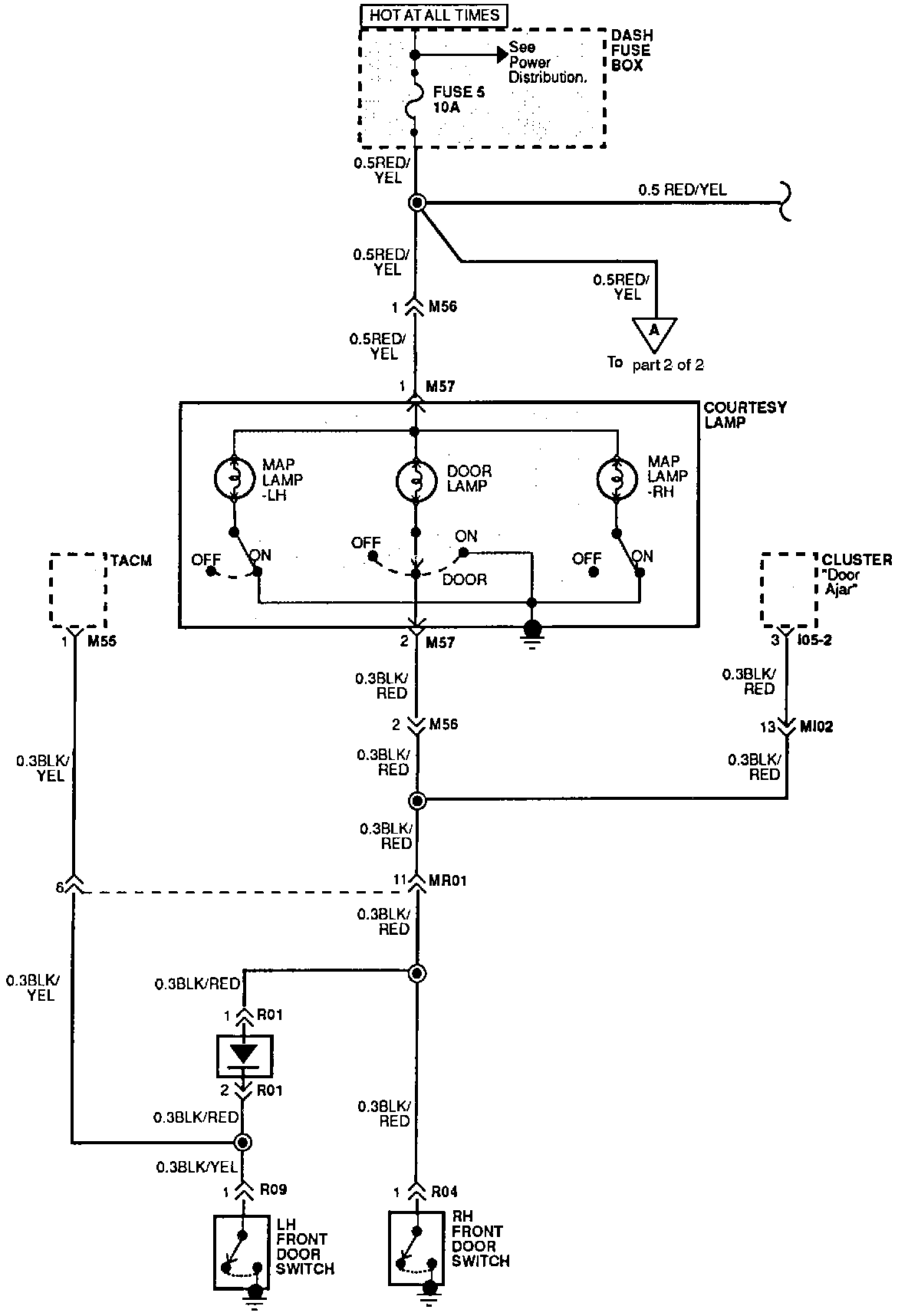

Courtesy And Trunk Lamps (Part 1 Of 2):

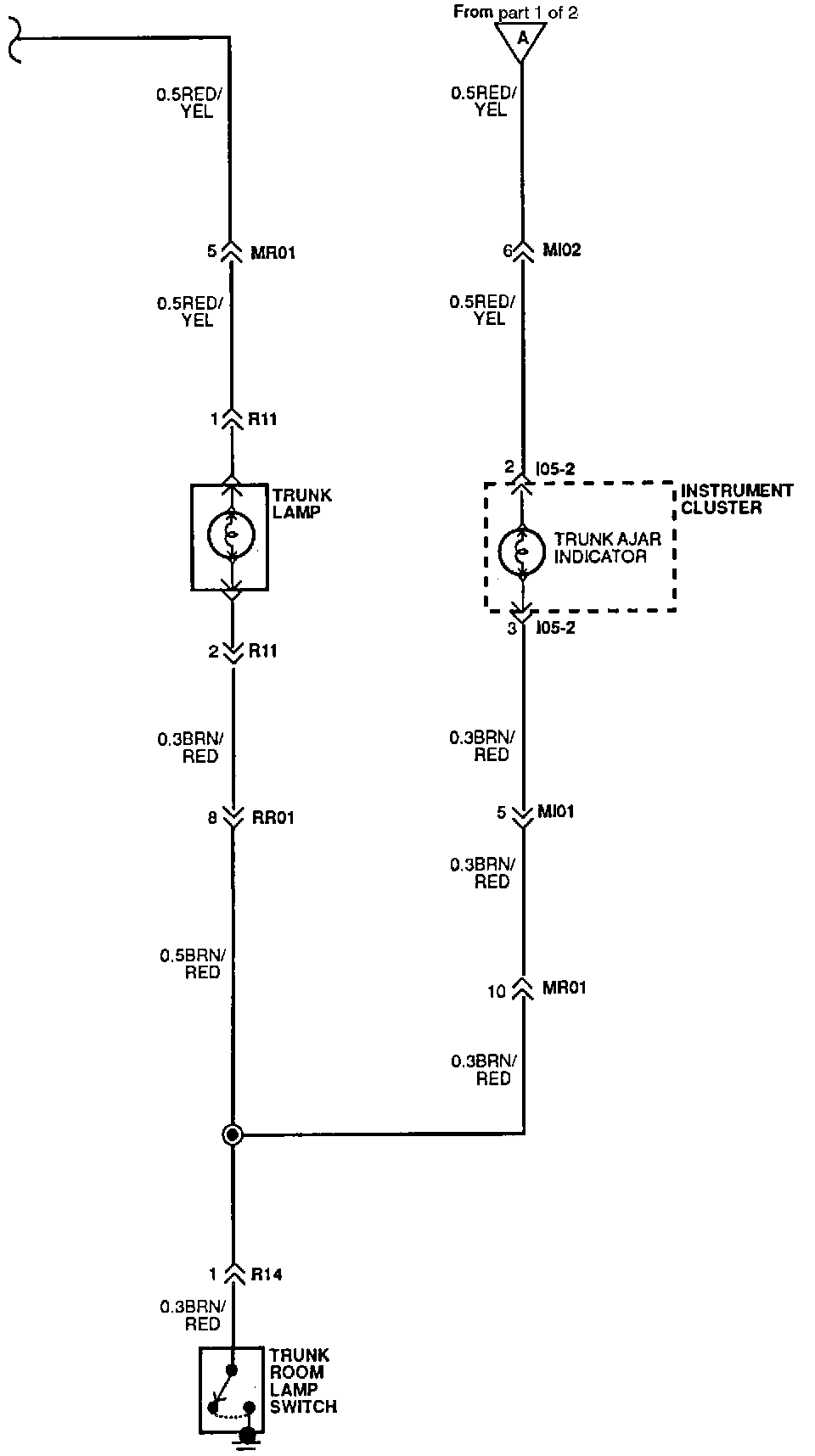

Courtesy And Trunk Lamps (Part 2 Of 2):
