System Diagram

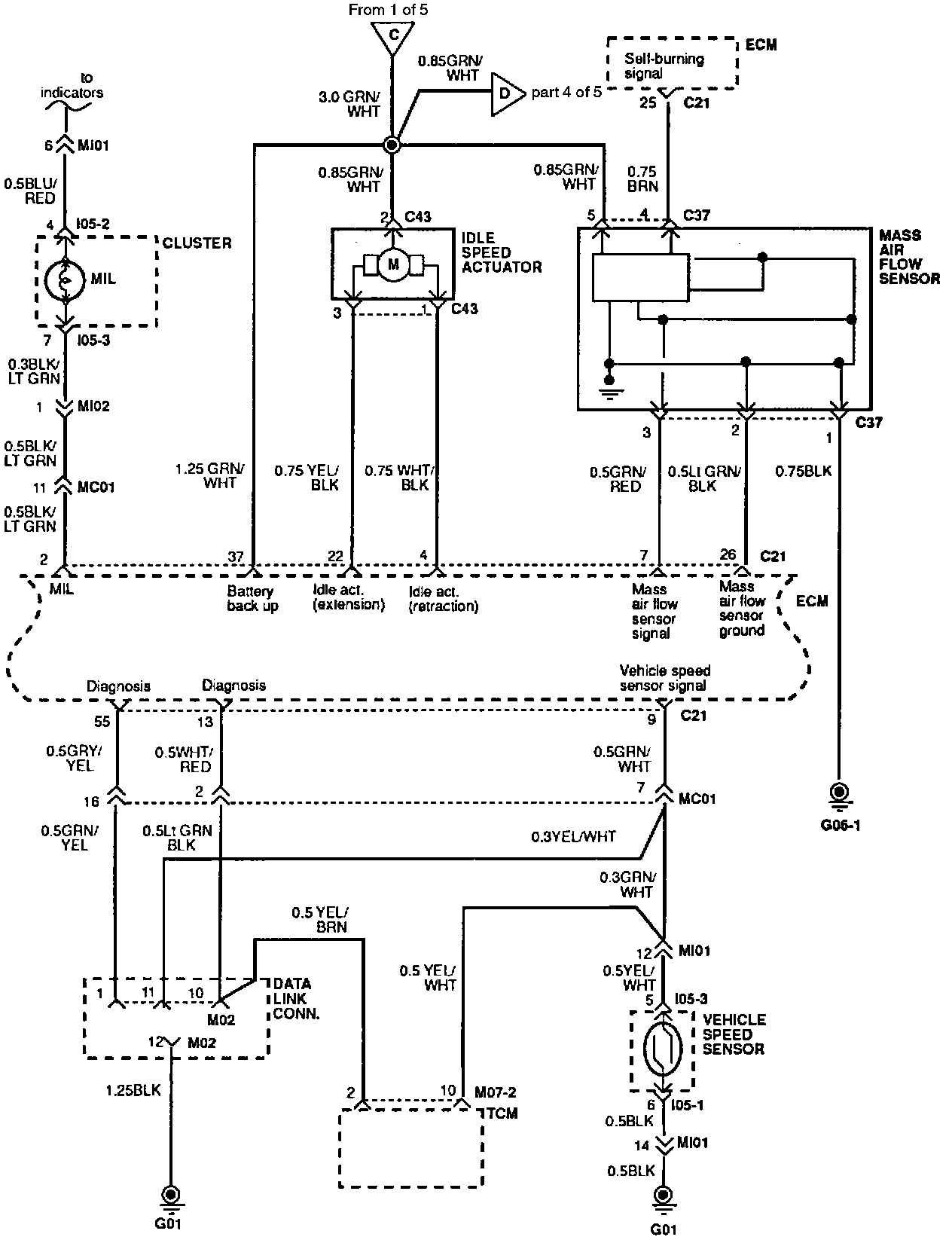

MFI System (T/C) (Part 1 Of 5):

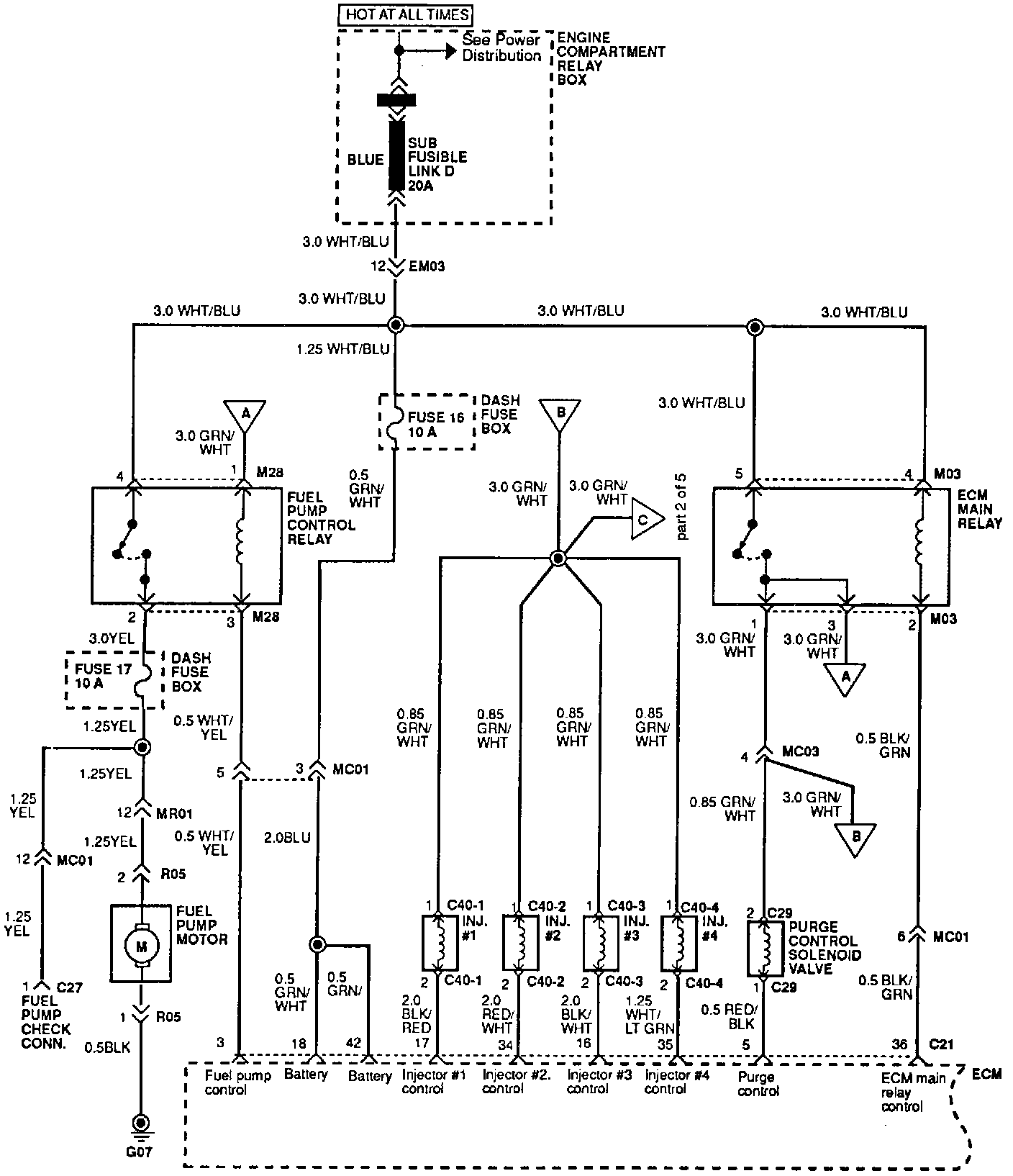

MFI System (T/C) (Part 2 Of 5):
MFI System (T/C) (Part 3 Of 5):
MFI System (T/C) (Part 4 Of 5):
MFI System (T/C) (Part 5 Of 5):
