Vehicle Views

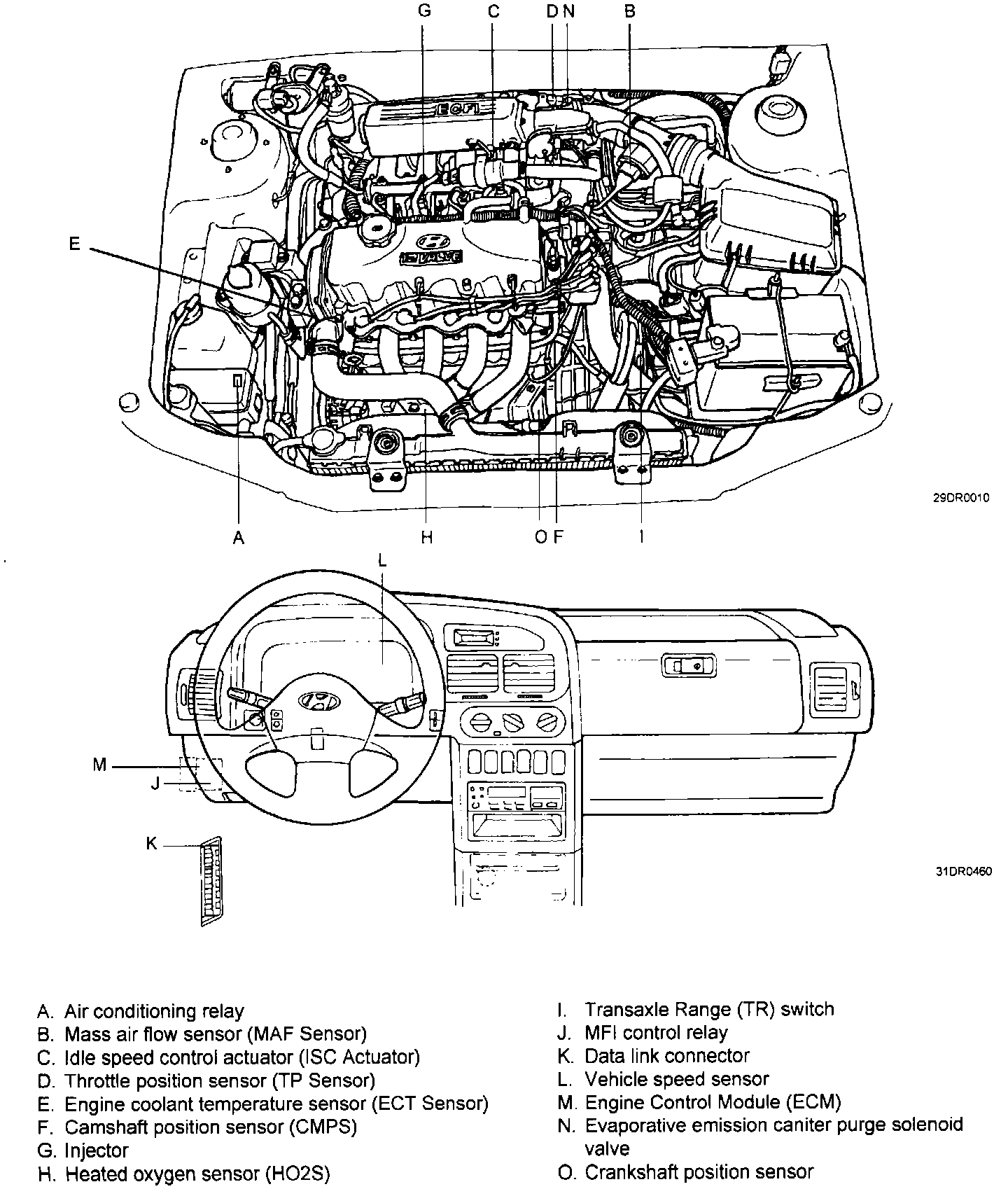

COMPONENT LOCATOR

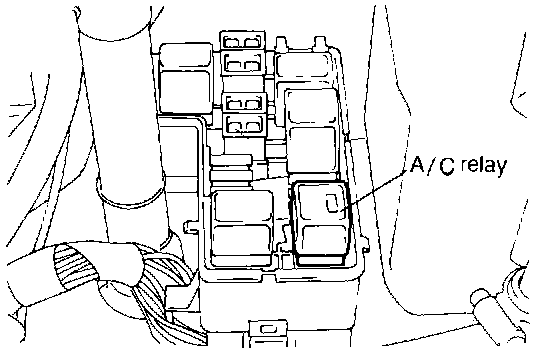

A: Air conditioning relay

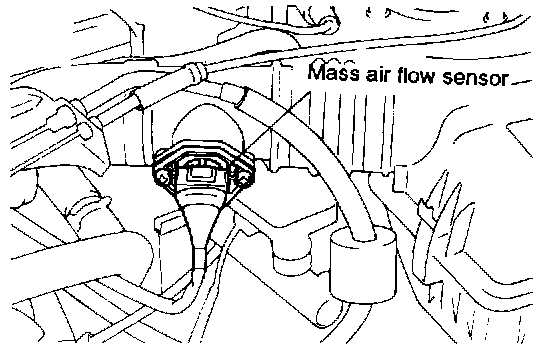

B: Mass air flow sensor

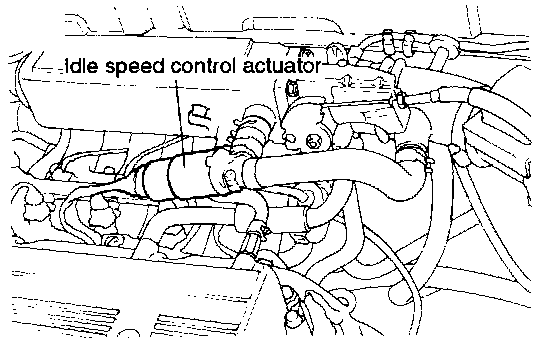

C: Idle speed control actuator

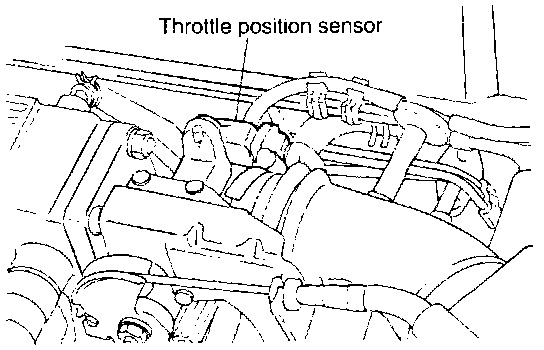

D: Throttle position sensor

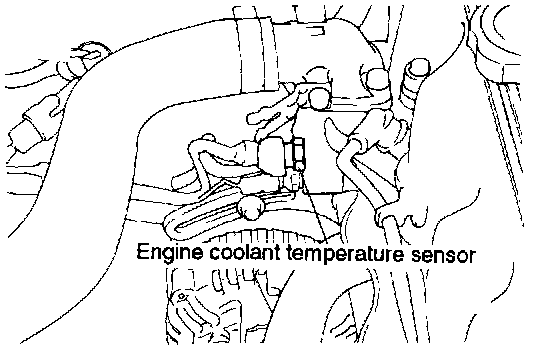

E: Engine coolant temperature sensor

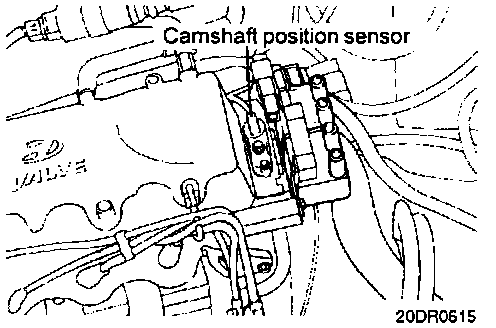

F: Camshaft position sensor

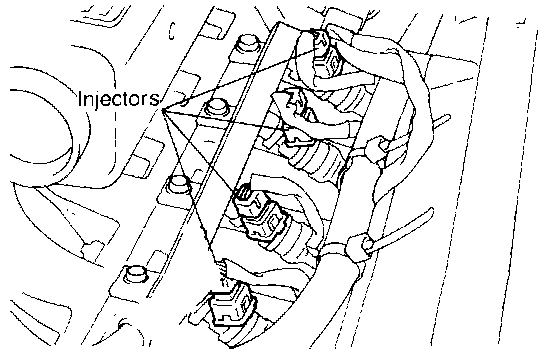

G: Injectors

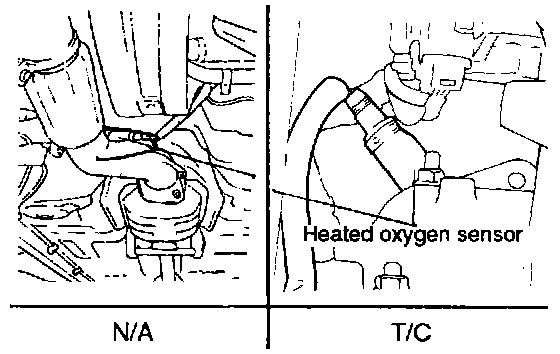

H: Heated oxygen sensor





I: Transaxle range switch

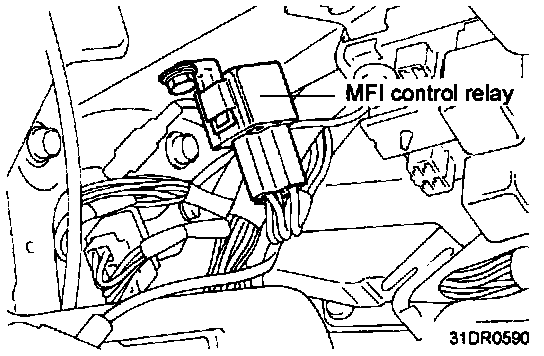

J: MFI control relay

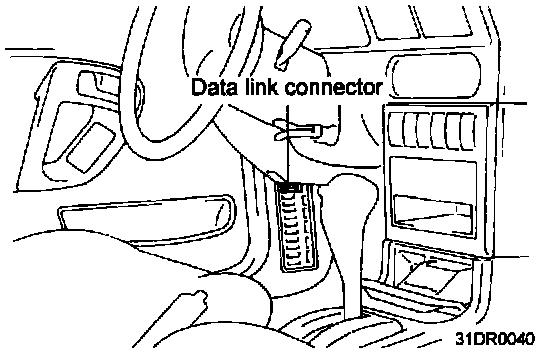

K: Data link connector

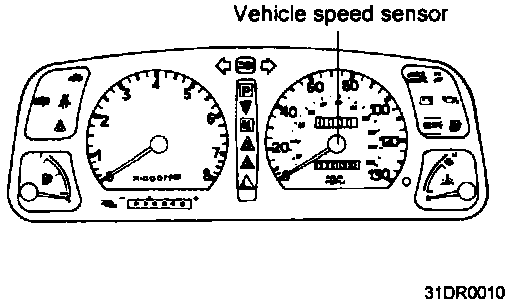

L: Vehicle speed sensor

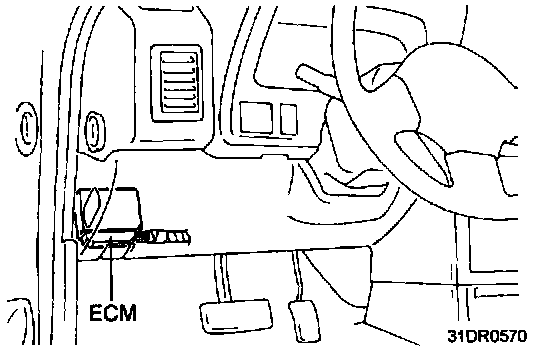

M: Engine control module

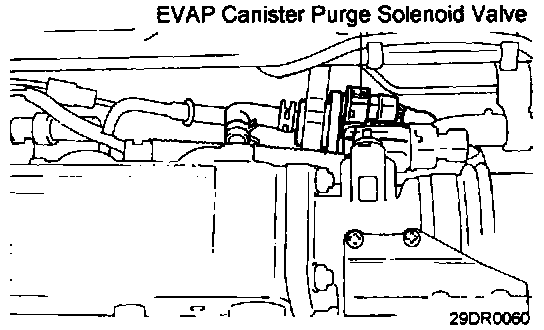

N: EVAP cannister purge solenoid valve

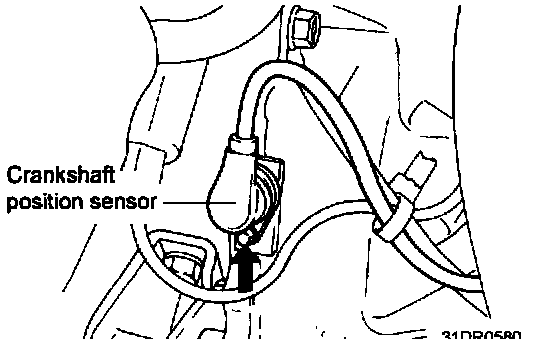

O: Crankshaft position sensor
