System Diagram

Electronic Time And Alarm Control System (ETACS) (Part 1 Of 3):

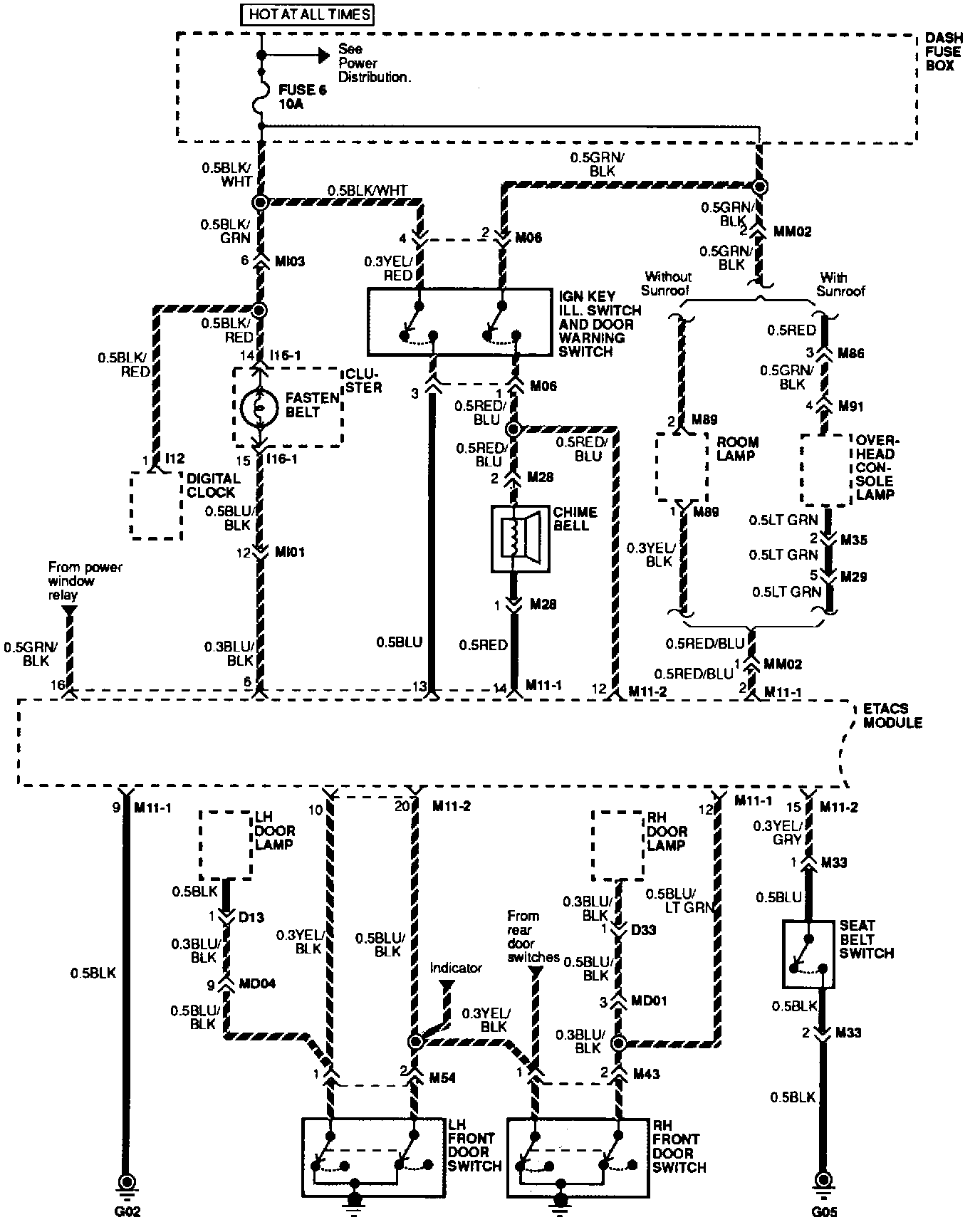

Electronic Time And Alarm Control System (ETACS) (Part 2 Of 3):




Electronic Time And Alarm Control System (ETACS) (Part 3 Of 3):
