Powertrain Management: Locations

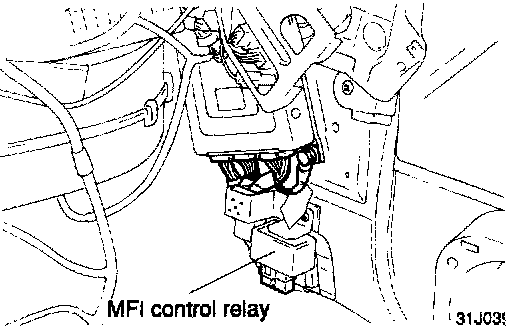

MFI Control Relay:

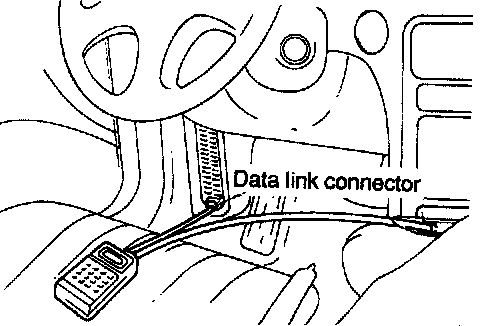

Data Link Connector:

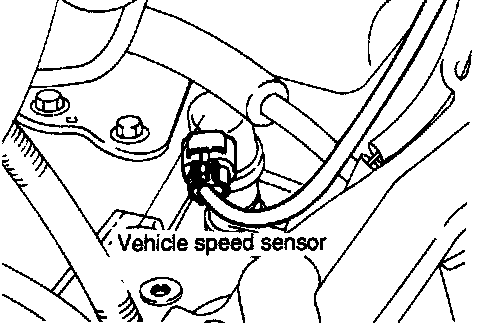

Vehicle Speed Sensor:

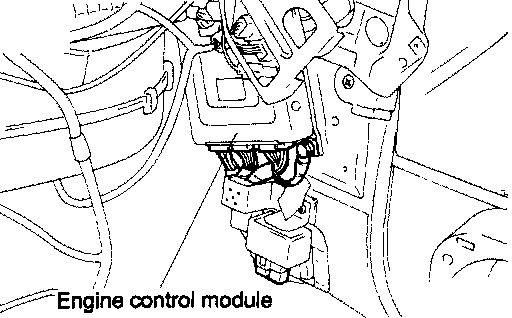

Engine Control Module:

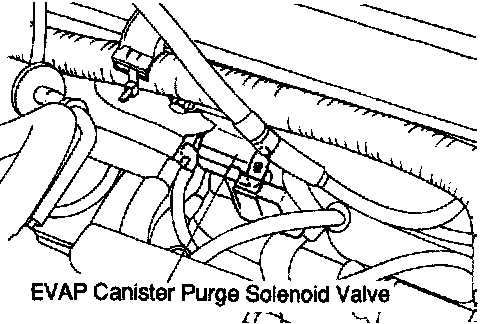

EVAP Cannister Purge Solenoid Valve:

Fuel Pump Check Terminal:

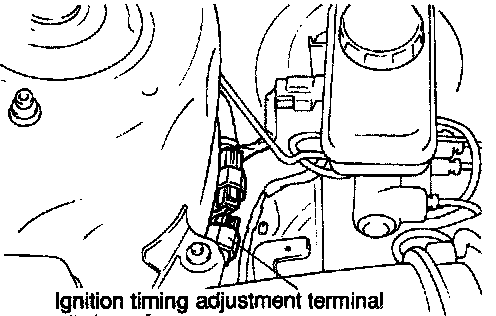

Ignition Timing Adjustment Terminal:

Power Steering Oil Pressure Switch:

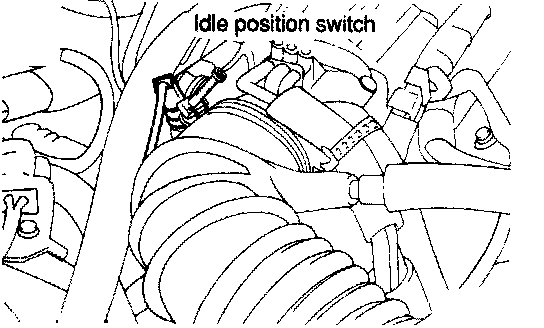

Idle Position Switch:

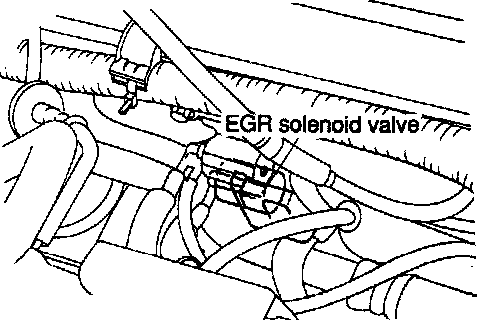

Egr Solenoid Valve:
