With Dual O2S

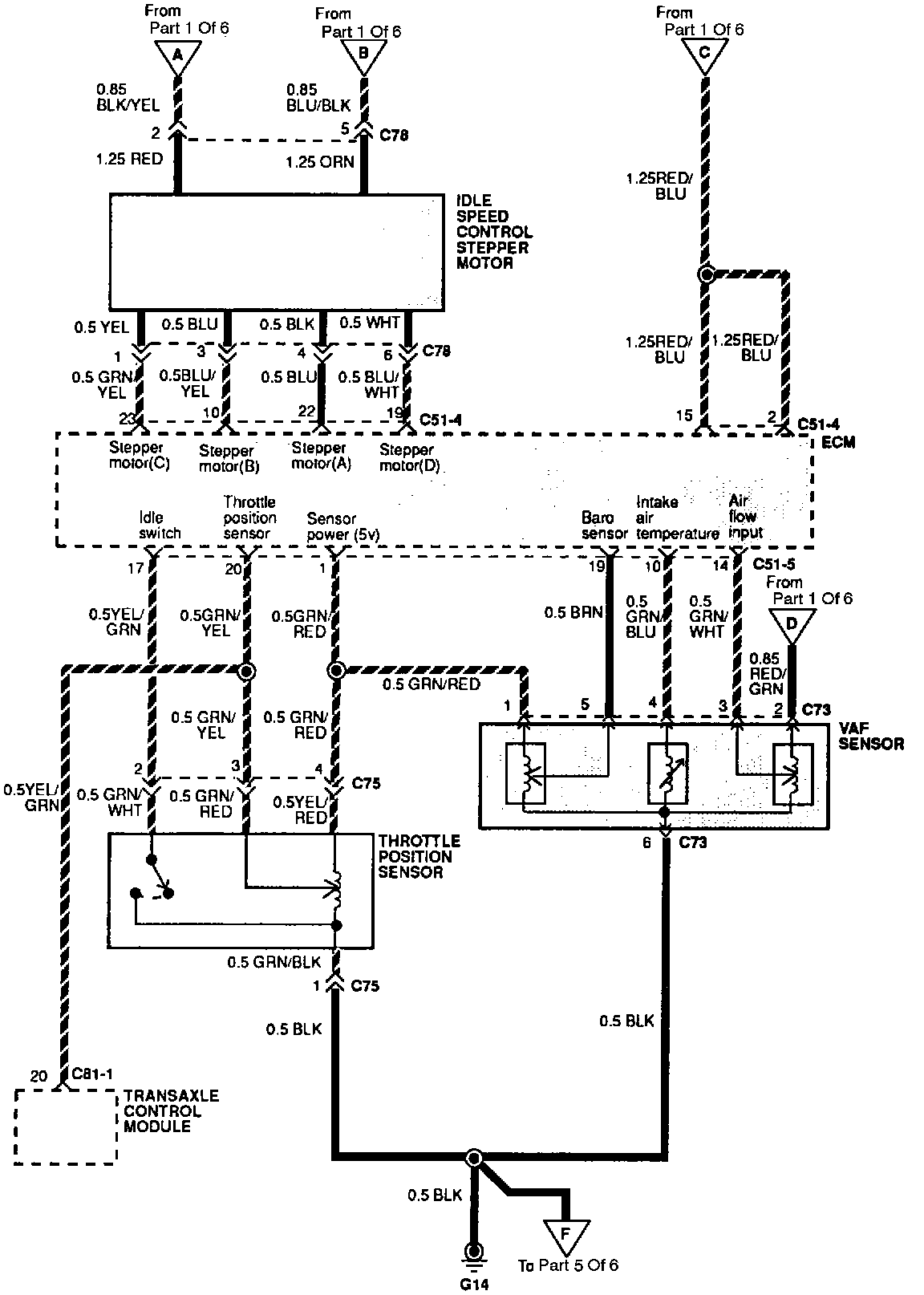

Multiport Fuel Injection System (With Dual Oxygen Sensor) (Part 1 Of 6):




Part 1 of 6

See Locations/Components for the location of fusible link E.
Component Locations

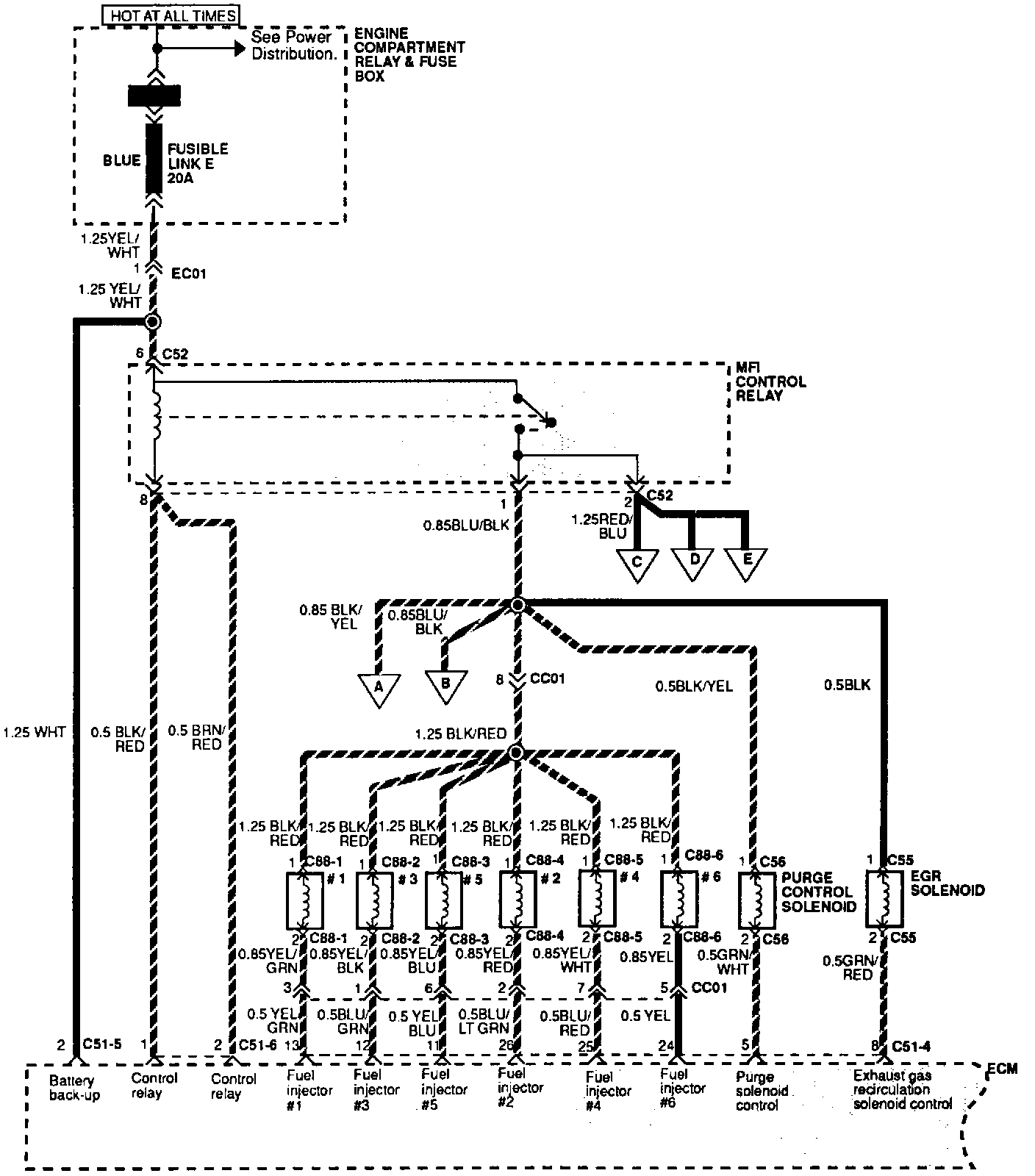

Multiport Fuel Injection System (With Dual Oxygen Sensor) (Part 2 Of 6):




Part 2 of 6

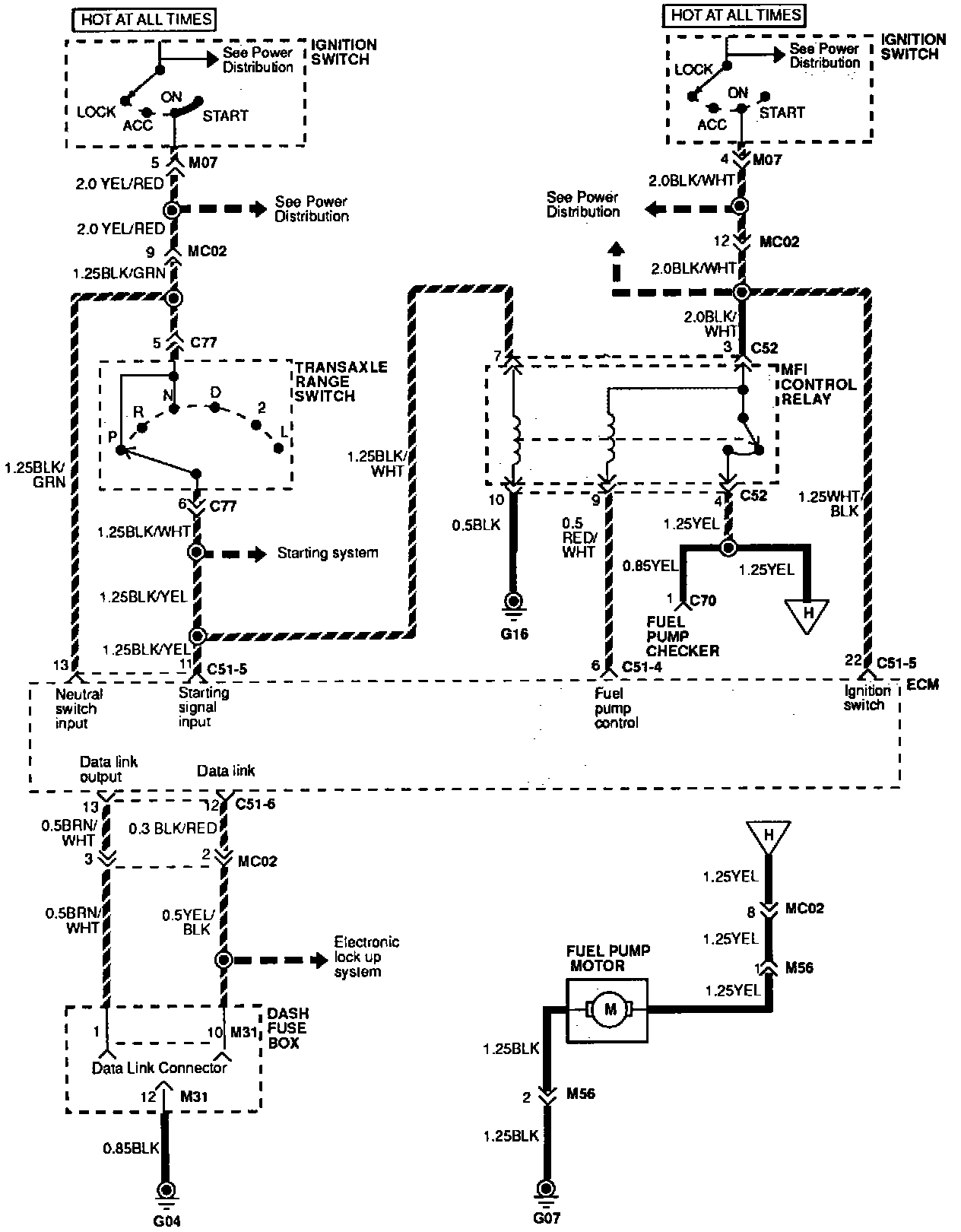

Multiport Fuel Injection System (With Dual Oxygen Sensor) (Part 3 Of 6):




Part 3 of 6

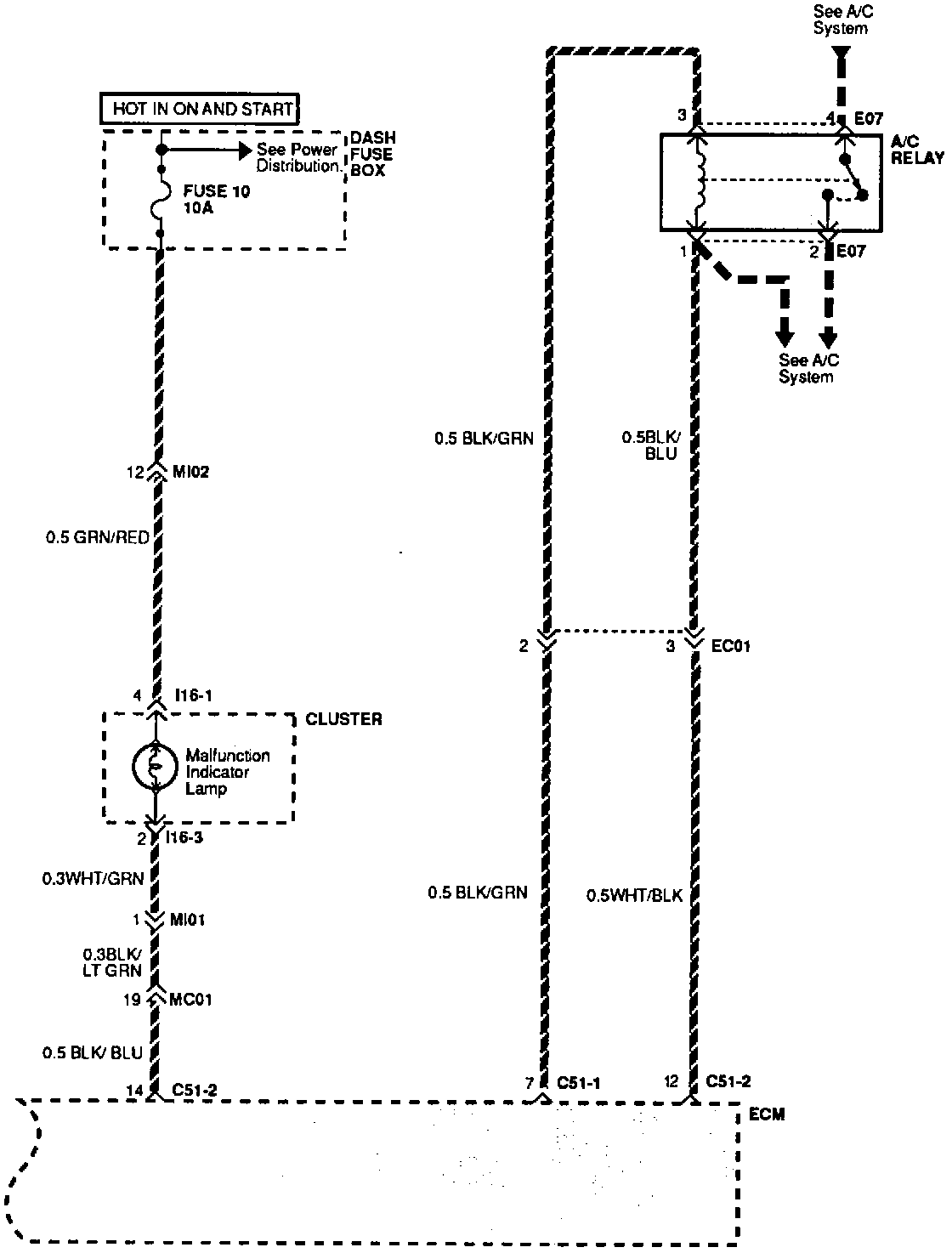

Multiport Fuel Injection System (With Dual Oxygen Sensor) (Part 4 Of 6):




Part 4 of 6

Multiport Fuel Injection System (With Dual Oxygen Sensor) (Part 5 Of 6):




Part 5 of 6

Multiport Fuel Injection System (With Dual Oxygen Sensor) (Part 6 Of 6):




Part 6 of 6
