SRS Connectors

All wiring in the airbag system is wrapped in yellow type to distinguish if from others. For ensuring high reliability, air-bag connectors have special functions and specifically designed. The connectors use gold-plated terminals

SRS Control Module Connector (SRSCM (SRS Control Module) Connector)

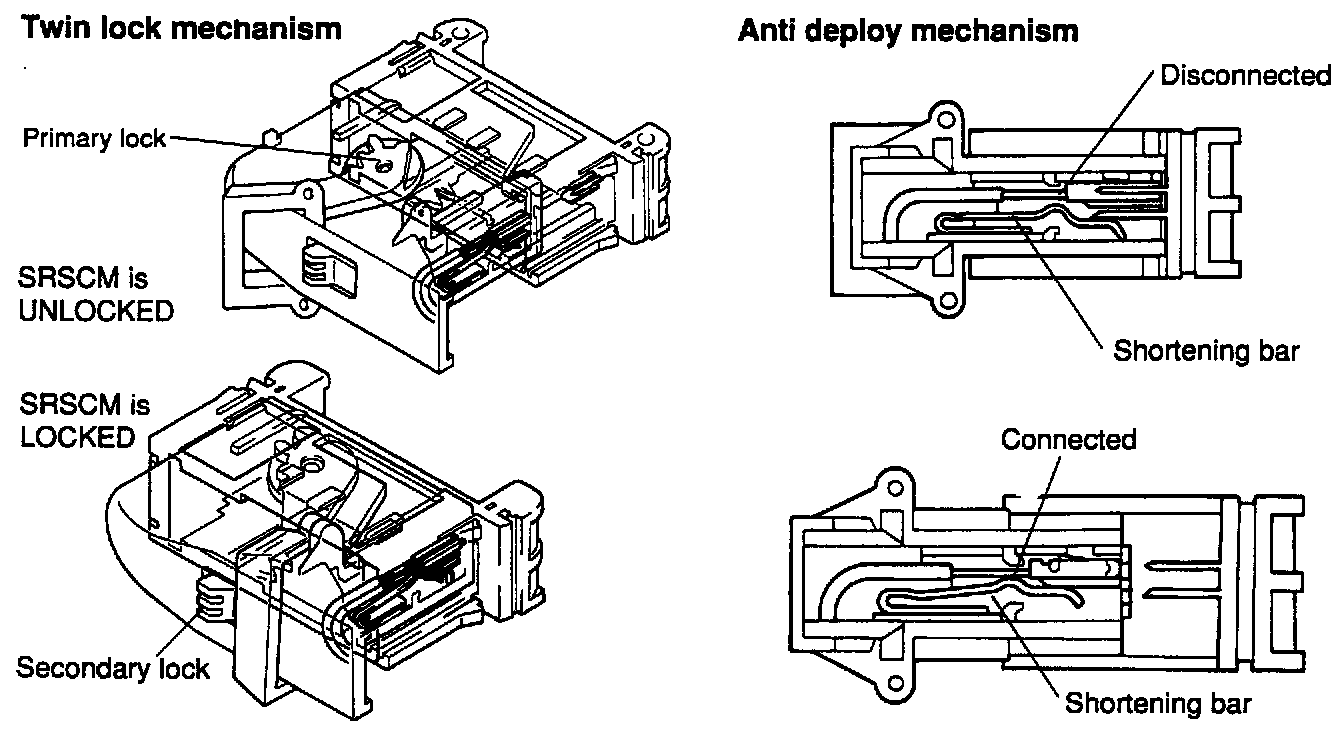

- SRSCM Connector is designed with 3 security systems for preventing unexpected deployment because of poor connections.





1. Twin Lock mechanism secures the locking of the terminal by a locking device to prevent the terminal from coming out.
2. Anti-deploy mechanism to prevent unexpected deployment by shortening of the two squib terminals.
3. Electrical Connection check mechanism is designed for finding poor connections at the SRSCM connector. If faults occur the SRS SRI lights up permanently.

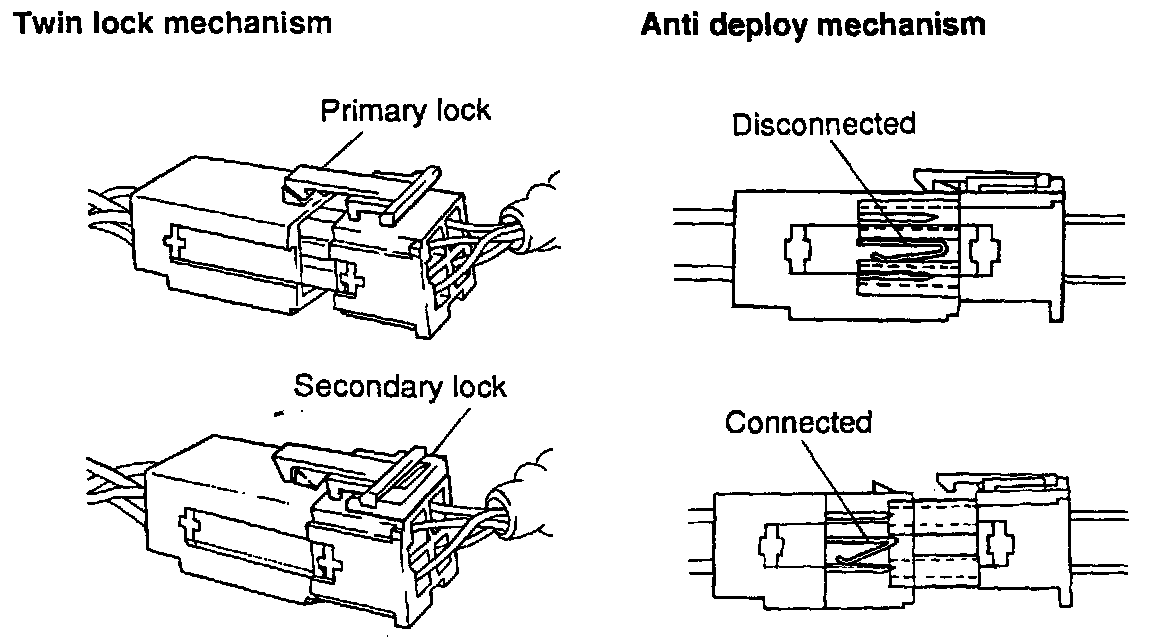

Driver Air-Bag Module (DAB)
- Two security mechanisms of the DAB are the twin-lock mechanism and anti-deploy mechanism. The Anti-deploy mechanism prevents unexpected deployment by the shortening of the two squib terminals.
- The twin-lock mechanism connectors (male and female) are fastened by two locking devices to increase connection reliability. If the primary lock is incomplete, ribs will prevent the secondary lock from coming apart.





Passenger Air-Bag module (PAB)
- Twin-lock mechanisms of the PAB (Passenger Air Bag) connectors (male and female) are designed for preventing terminal from coming out.
- Anti-deploy mechanism prevent unexpected deploy by shortening of two squib terminals.
