System Diagram

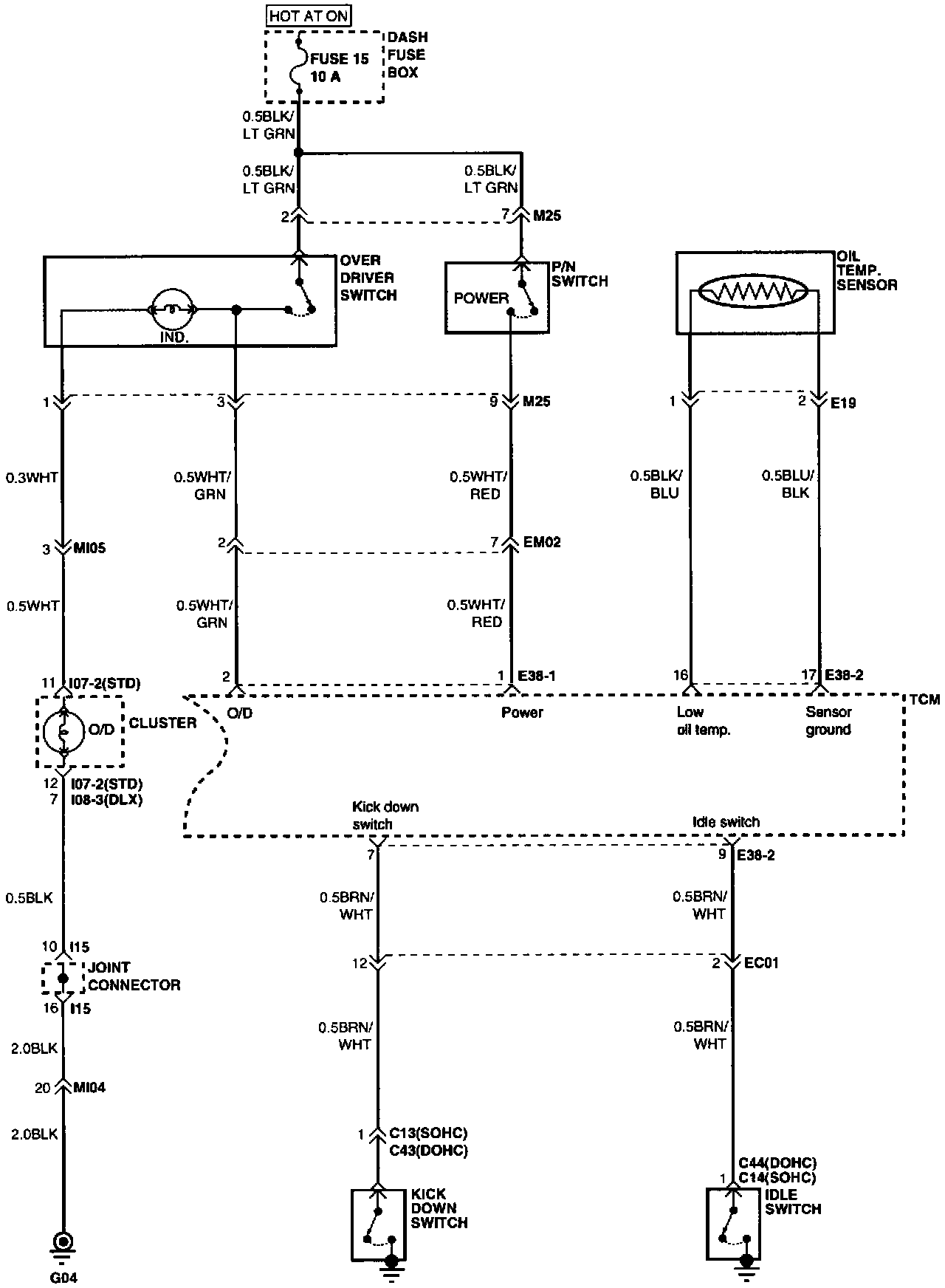

Electronic Lock Up Control System (Part 1 Of 3):

Electronic Lock Up Control System (Part 2 Of 3):

Electronic Lock Up Control System (Part 3 Of 3):

A/T And Ignition Key Lock Controls:
