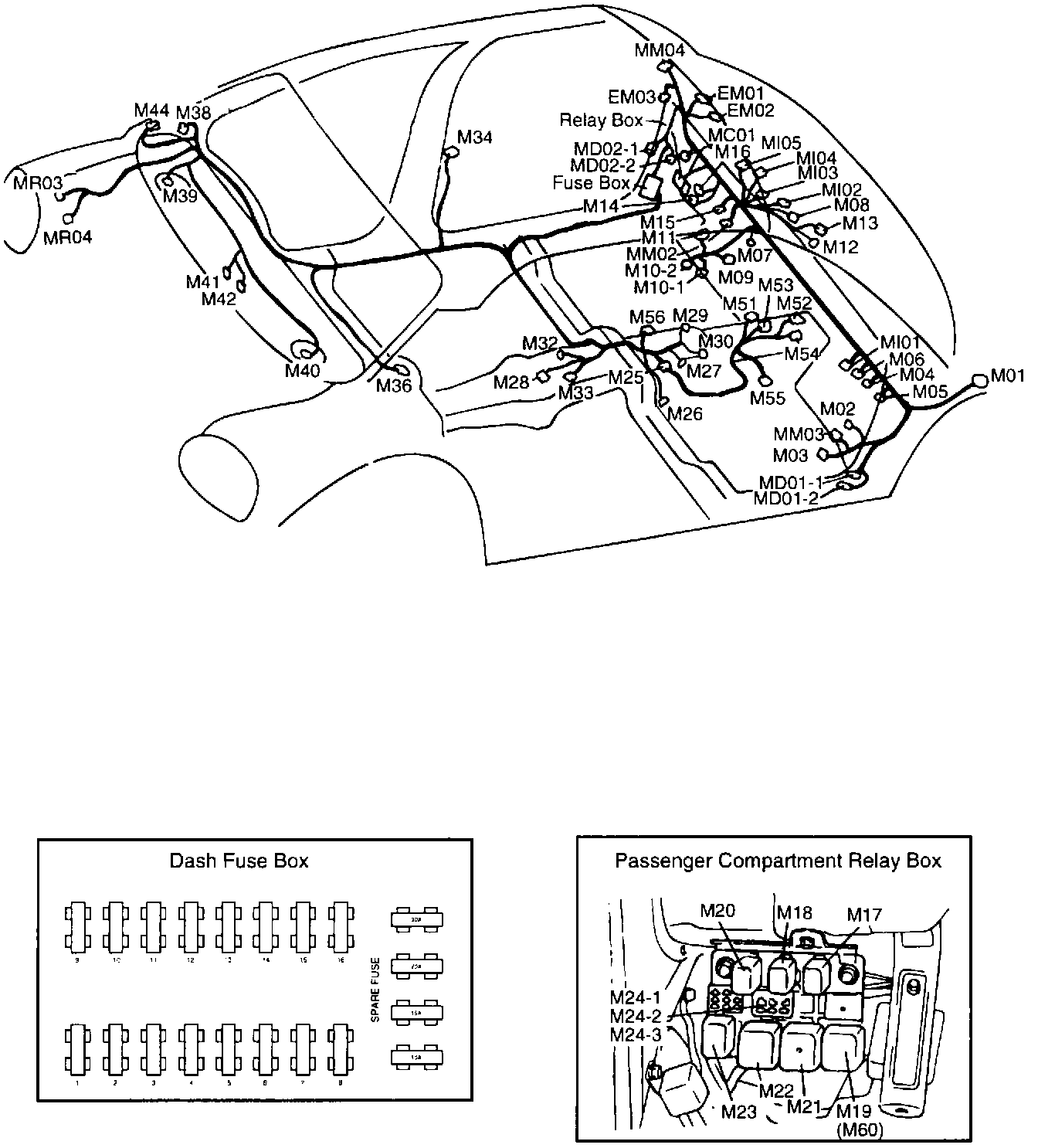

Main Harness (3 Door)

Main Harness (For 3 Door):

M01 Side Repeater Lamp (RH)
M02 Power Antenna
M03 A/T Inter Lock Control Module
M04 Blower Resistor
M05 Blower Motor
M06 Thermo Switch (with Thermistor)
M07 Chime Bell
M08 Seat Belt Timer
M09 Door Warning Switch
M10-1 Multitunction Switch
M10-2 Multifunction Switch
M11 Ignition Switch
M12 Acoustic Warning
M13 Rear Defogger Timer
M14 Ignition Lock Switch
M15 Intermittent Wiper Relay
M16 Stop Switch
M17 Starter Relay
M18 Fuel Pump (FP) Relay
M19 Fuel Pump (FP) Control Relay
M20 Rear Fog Lamp Relay
M21 Flasher Unit
M22 Power Window Relay
M23 Blower Relay
M24-1 Joint Connector
M24-2 Joint Connector
M24-3 Joint Connector
M25 Connection With A/T Connector
M26 Seat Warmer (RH)
M27 Seat Warmer Switch (RH)
M28 Parking Brake Switch
M29 Power Window Switch
M30 Seat Warmer Switch (LH)
M32 Seat Warmer (LH)
M33 Seat Belt Switch
M34 Front Door Switch (LH)
M36 Fuel Sender
M38 Rear Wheel Sensor (LH, ABS)
M39 Speaker (LH)
M40 Speaker (RH)
M41 Trunk Room Lamp
M42 High Mounted Stop (HMS) Lamp
M44 Rear Defogger Glass
M51 Overdrive (O/D) Switch (A/T, Subsidized in M25)
M52 A/T Solenoid (A/T, Subsidized in M25)
M53 Key Inter Lock Switch (A/T, Subsidized in M25)
M54 ECT Switch (A/T, Subsidized in M25)
M55 Park ("P") Position Switch (A/T, Subsidized in M25)
M56 A/T Illumination (Subsized in M25)
M60 Front Fog Lamp Relay
EM01 Connection With ENGINE Harness
EM02 Connection With ENGINE Harness
EM03 Connection With ENGINE Harness
MM02 Connection With MAIN (AIR BAG) Harness
MM03 Connection With MAIN (ABS) Harness
MC01 Connection With CONTROL Harness
MD01-1 Connection With DOOR (FRT LH) Harness
MD01-2 Connection With DOOR (FRT LH) Harness
MDO2-1 Connection With DOOR (FRT RH) Harness
MD02-2 Connection With DOOR (FRT RH) Harness
MI01 Connection With INSTRUMENT Harness
MI02 Connection With INSTRUMENT Harness
MI03 Connection With INSTRUMENT Harness
MI04 Connection With INSTRUMENT Harness
MI05 Connection With INSTRUMENT Harness
MM04 Connection With MAIN (ROOF) Harness
MR03 Connection With REAR Harness
MR04 Connection With REAR Harness
