Transmission

Code 1701 Through 0708:

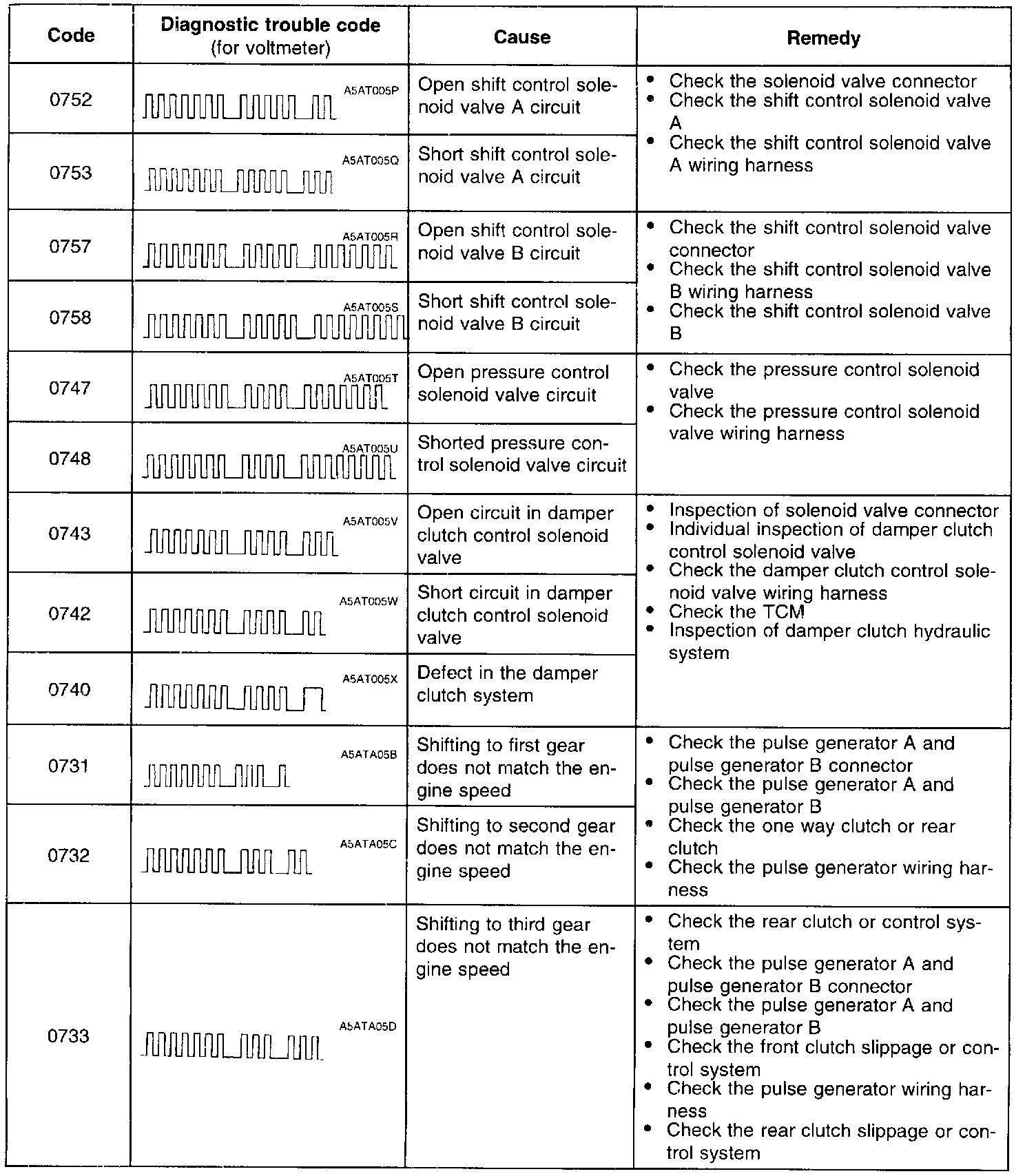

Code 0752 Through 0733:

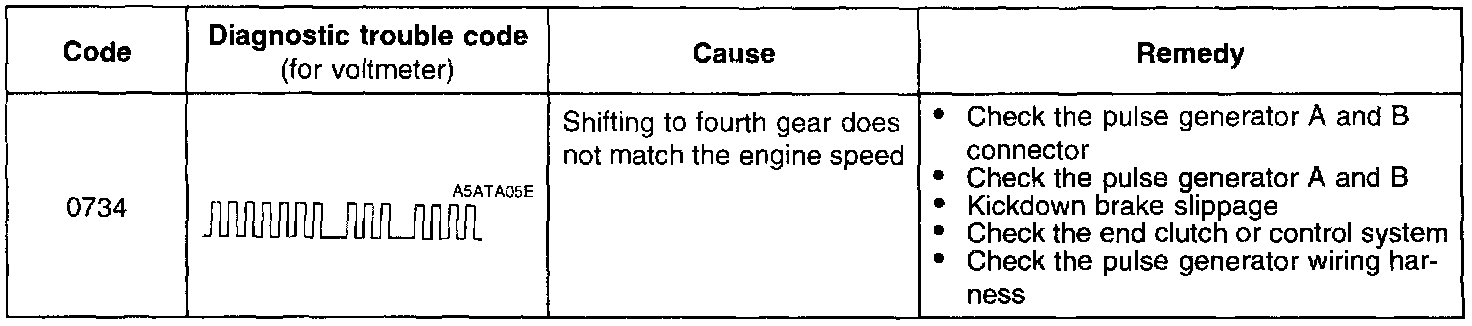

Code 0734:

TROUBLE CODE DESCRIPTIONS

Code 0717 Through 0734:

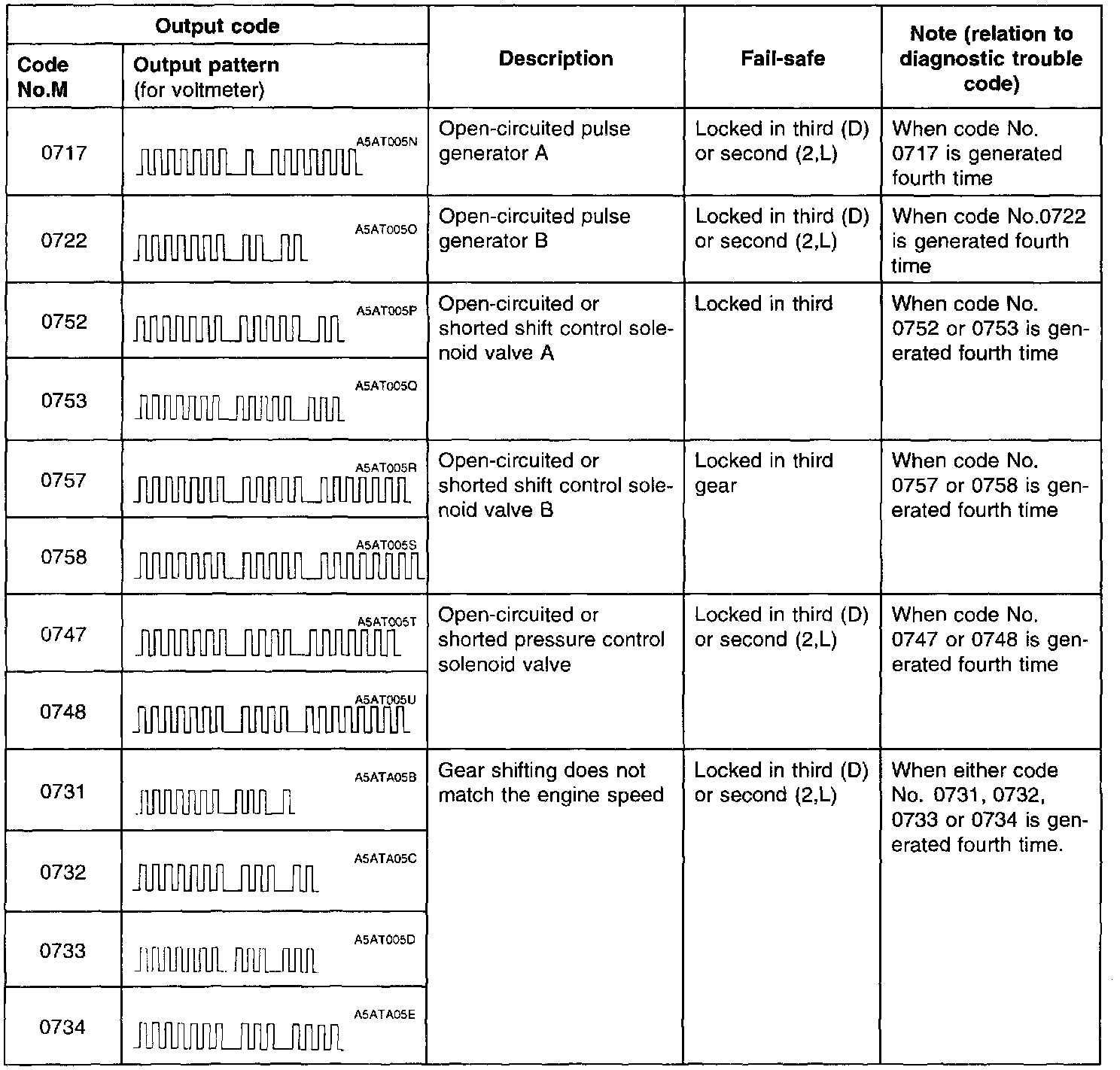

FAIL-SAFE RELATED TROUBLE CODES

NOTE: Hyundai Motor Company does not provide DTC specific flow charts for all DTCs. See the trouble code description list for a remedy or probable cause. In this instance, you may refer to specific component testing to determine the fault. See: Component Tests and General Diagnostics

In addition, refer to TSBs for updated diagnostics.
