System Diagram
System Diagram

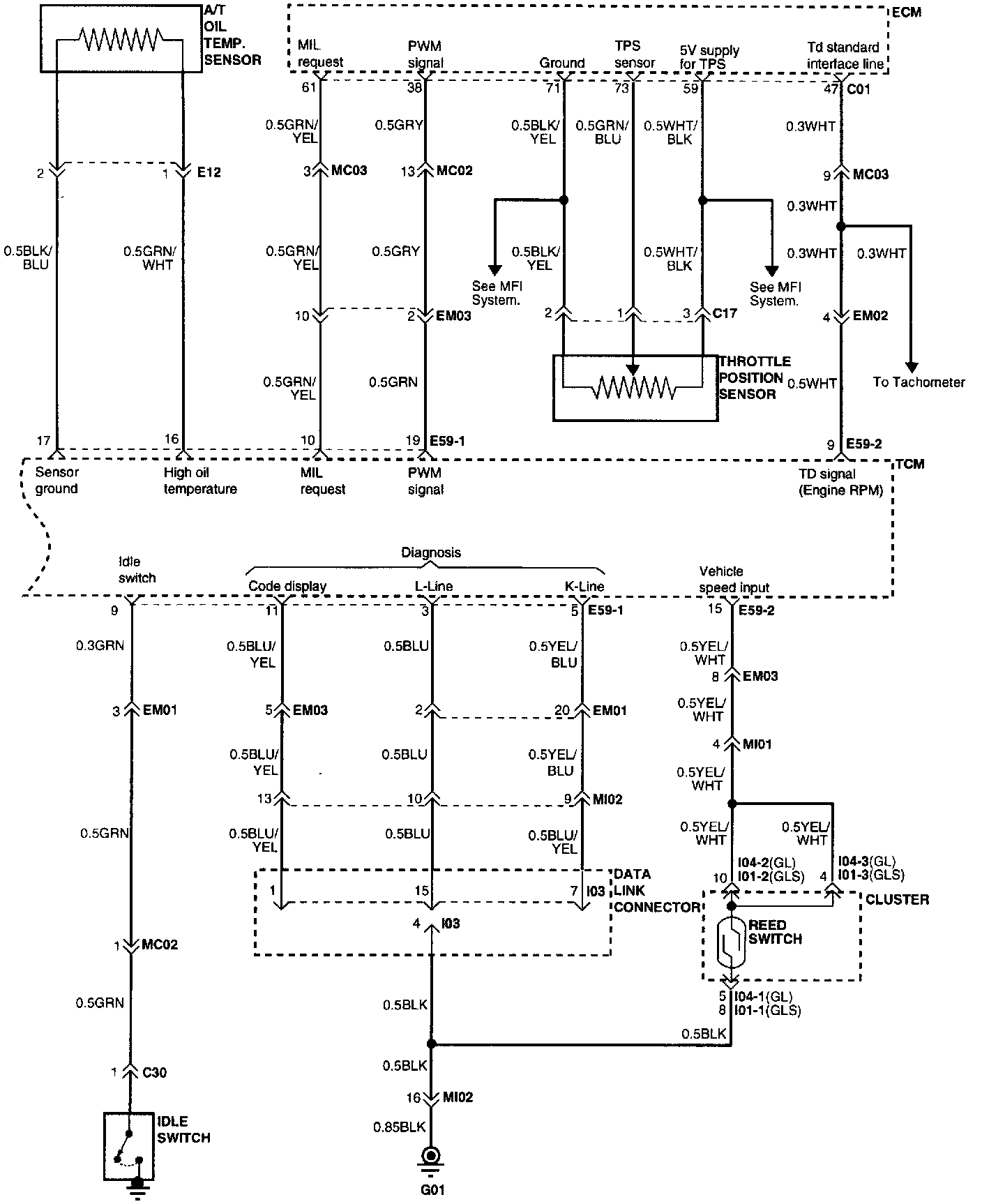

Automatic Transaxle Control System (Part 1 Of 3):
Automatic Transaxle Control System (Part 2 Of 3):
Automatic Transaxle Control System (Part 3 Of 3):
