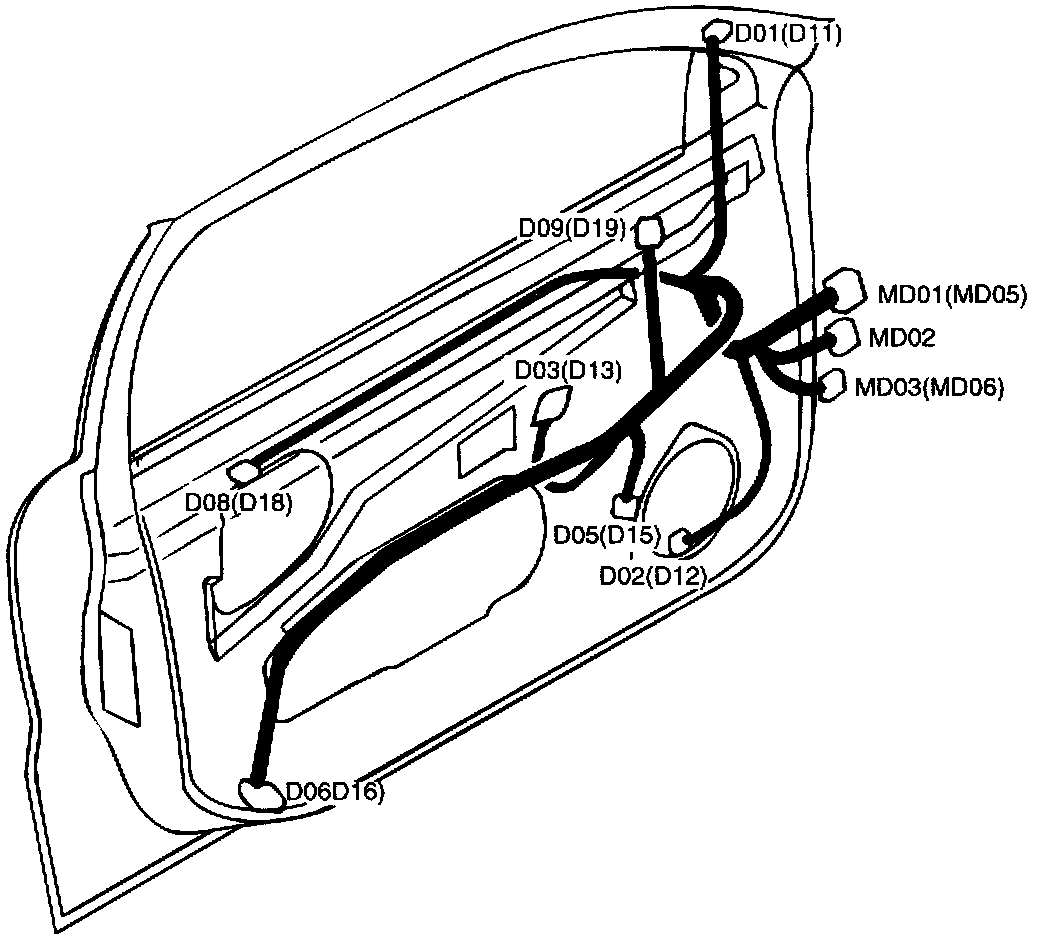

Door Harness (Front)

Door Harness (Front):

D01 Power door mirror (LH)
D11 Power door mirror (RH)
D02 Front speaker (LH)
D12 Front speaker (RH)
D03 Power window switch (LH)
D05 Power window motor (LH)
D15 Power window motor (RH)
D06 Front door lock actuator (LH)
D16 Front door lock actuator (RH)
D08 Door unlock switch (LH)
D18 Door unlock switch (RH)
D09 Tweeter speaker (LH)
D19 Tweeter speaker (RH)
D13 Power window switch (RH)
MD01 Connection with MAIN harness (FRONT LH)
MD02 Connection with MAIN harness (FRONT LH)
MDO3 Connection with MAIN harness (FRONT LH)
MD05 Connection with MAIN harness (FRONT RH)
MD06 Connection with MAIN harness (FRONT RH)
