Condenser Fan Motor Relay: Testing and Inspection

Fig. 8 Cooling System Wiring Circuit:

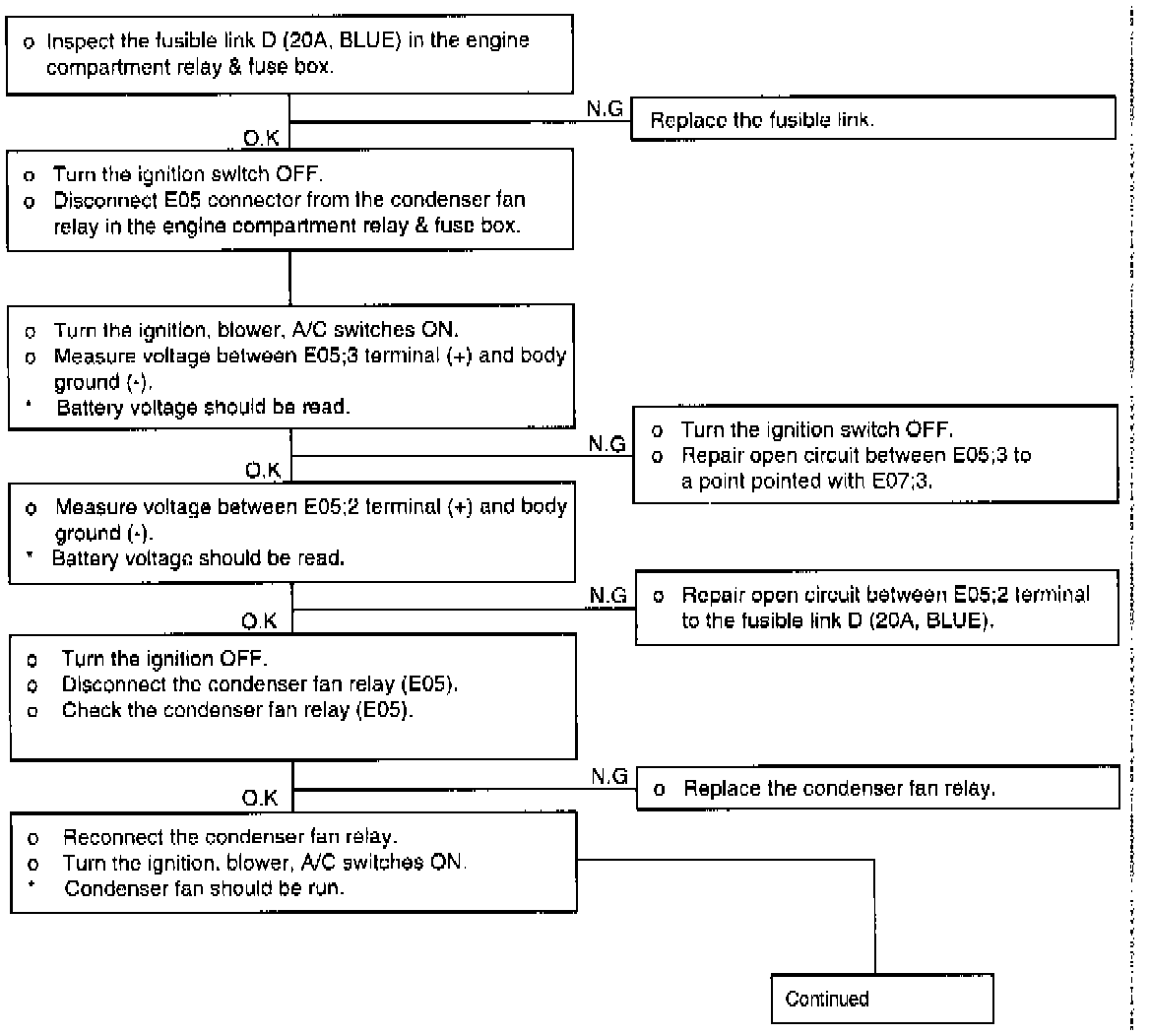

Fig. 9 Condenser Fan Relay & Motor Diagnosis (Part 1 Of 2):

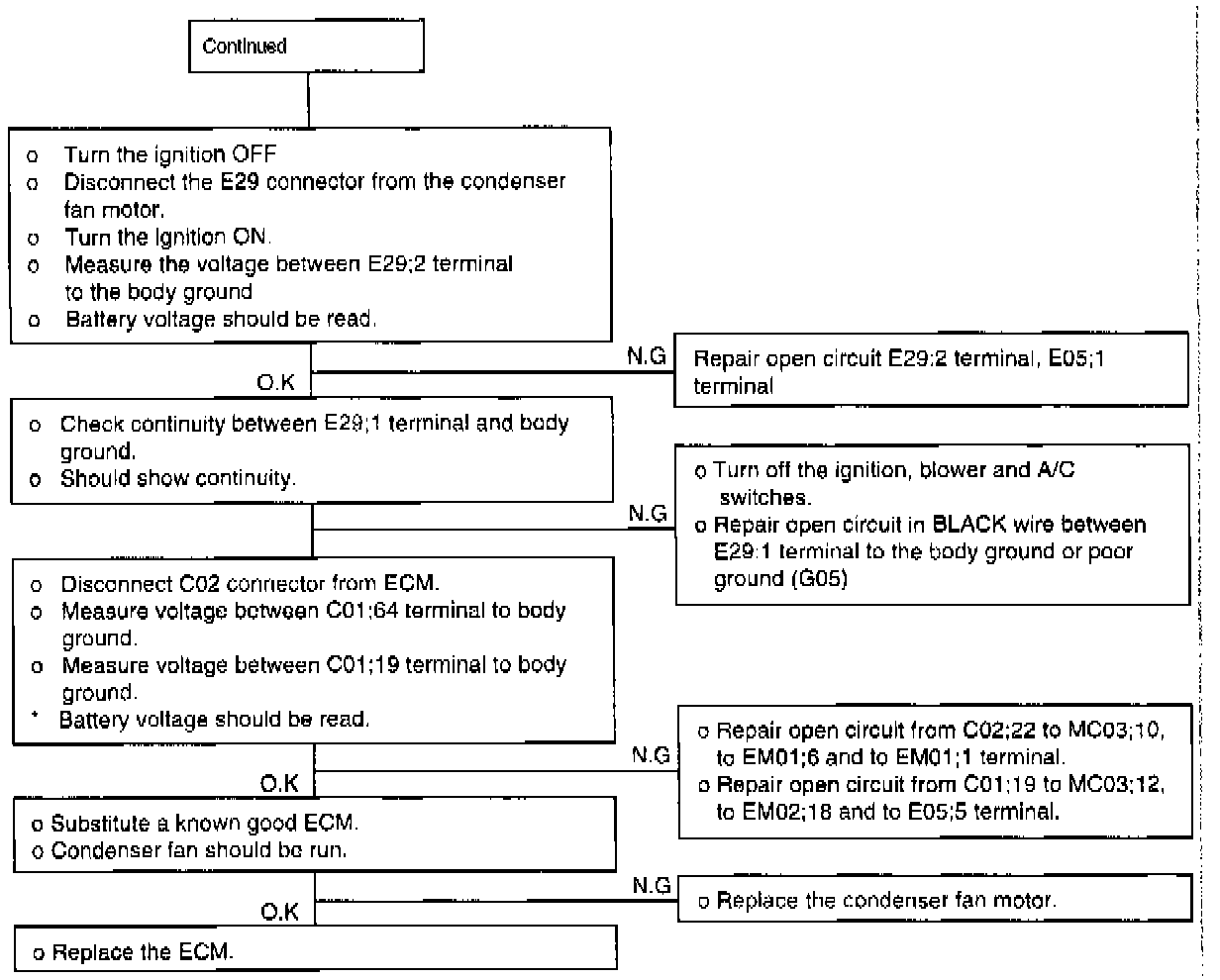

Fig. 9 Condenser Fan Relay & Motor Diagnosis (Part 2 Of 2):

Refer to wiring circuit Fig. 8 and diagnostic chart Fig. 9 for condenser fan relay and motor diagnosis.
