Dash Console and Switch Lamps

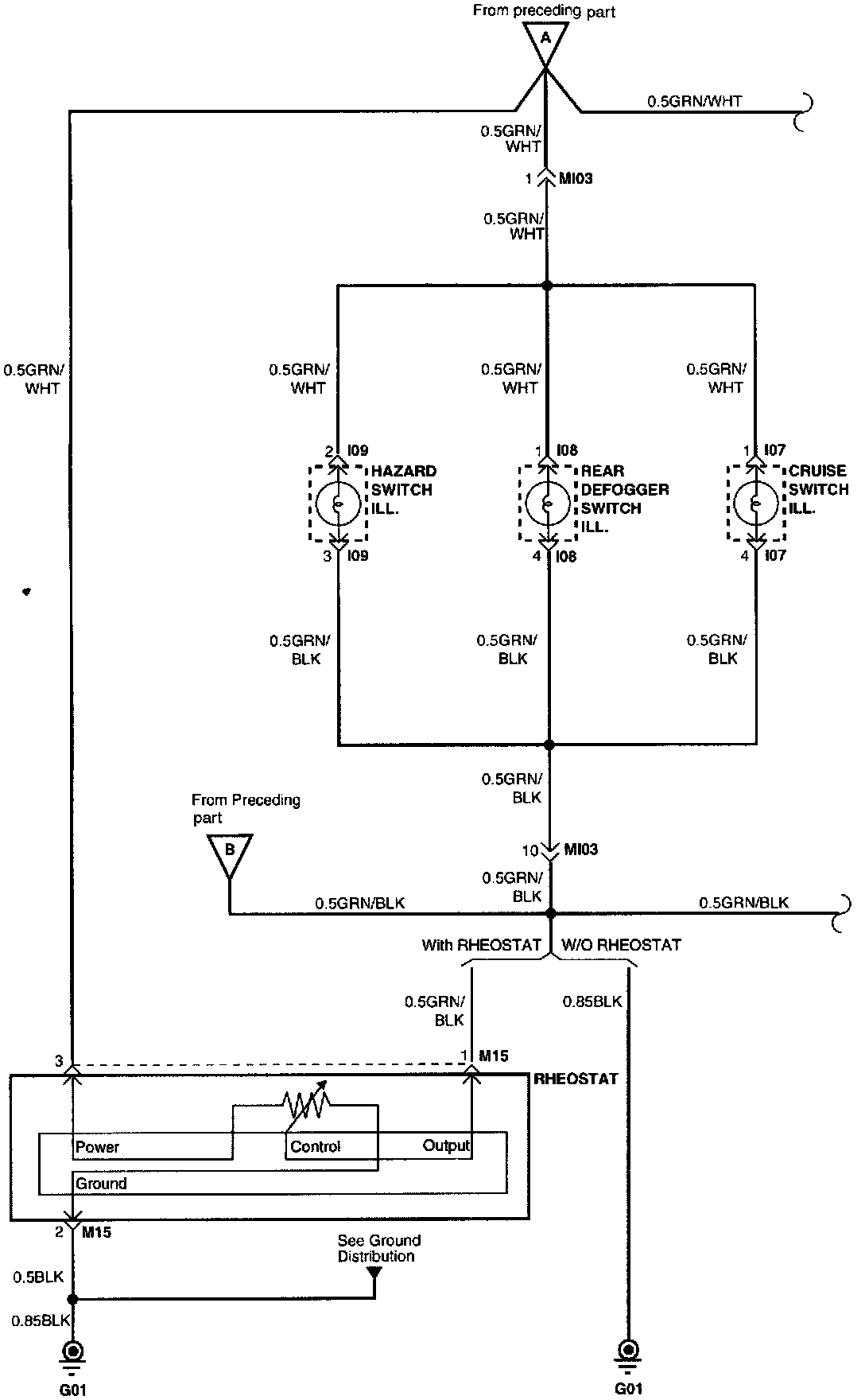

Dash Console And Switch Lamps (Part 1 Of 4):

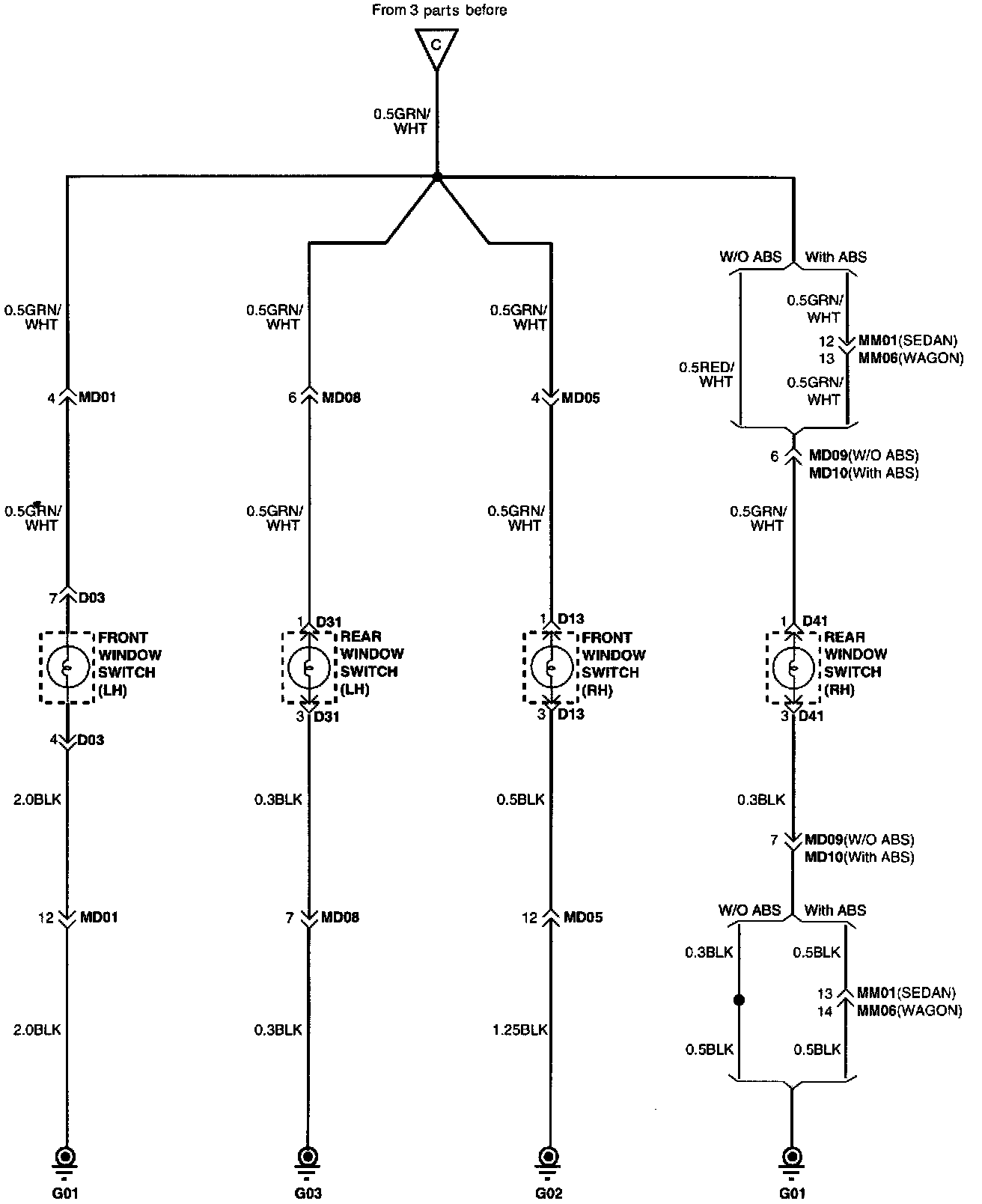

Dash Console And Switch Lamps (Part 2 Of 4):

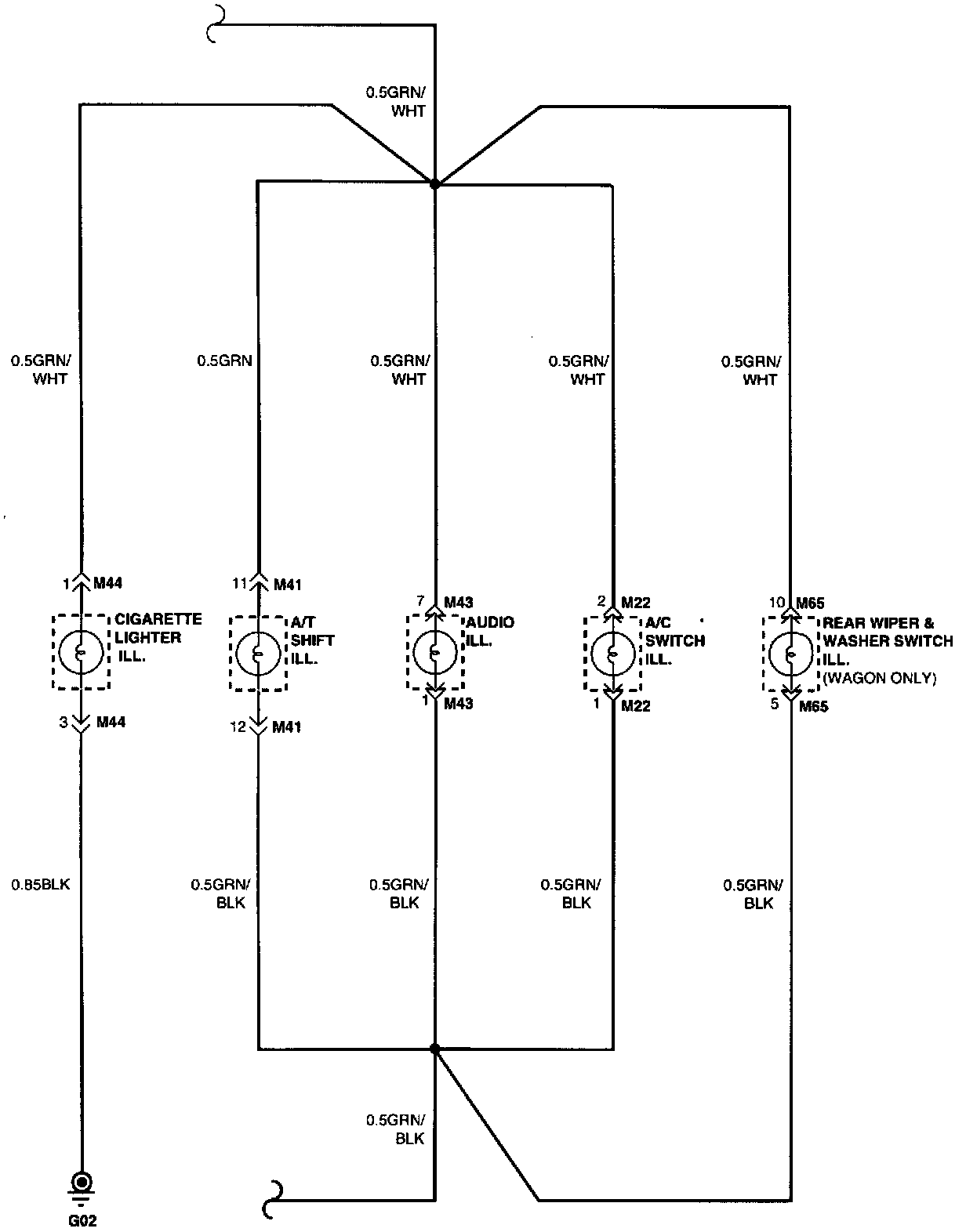

Dash Console And Switch Lamps (Part 3 Of 4):




Dash Console And Switch Lamps (Part 4 Of 4):
