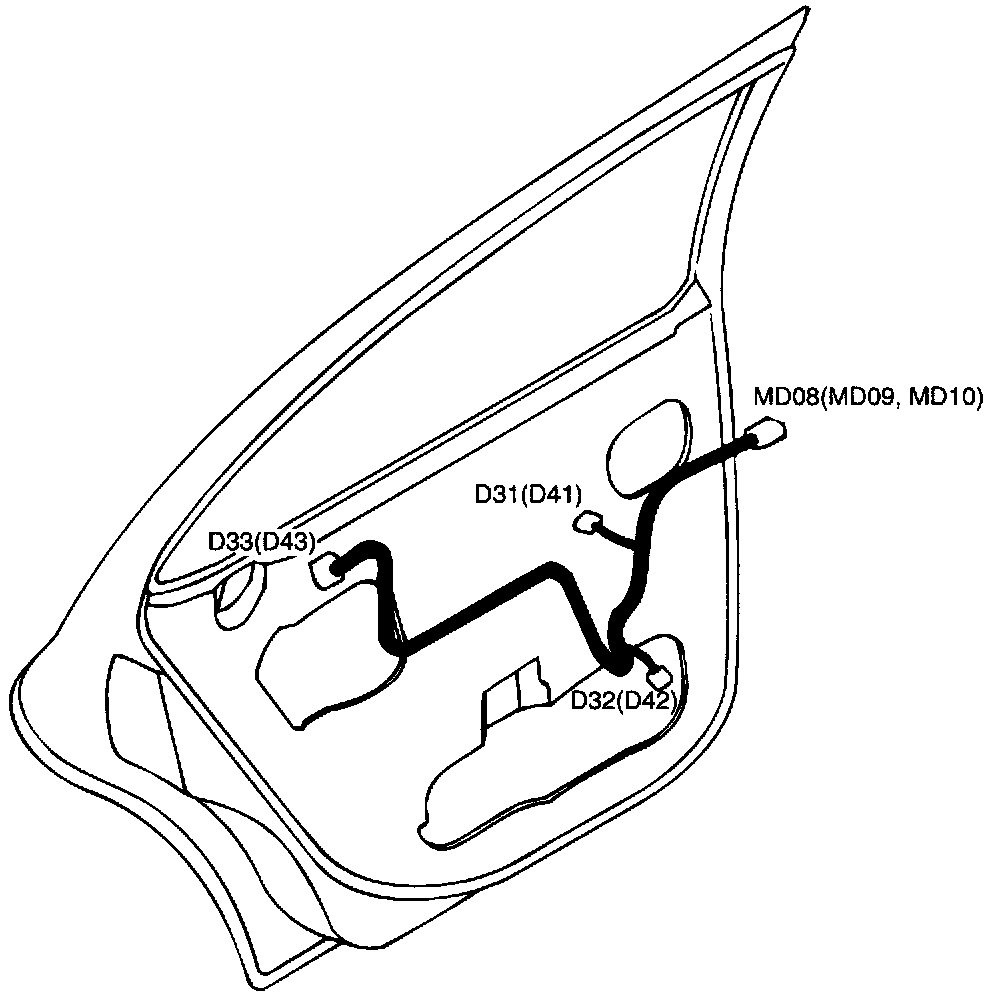

Door Harness (Rear)

Door Harness (Rear):

D31 Power window switch (LH)
D41 Power window switch (RH)
D32 Power window motor (LH)
D42 Power window motor (RH)
D33 Rear door lock actuator (LH)
D43 Rear door lock actuator (RH)
MD08 Connection with MAIN harness (REAR LH)
MD09 Connection with MAIN harness (REAR RH, without ABS)
MD10 Connection with MAIN harness (REAR RH, with ABS)
