A/T - Oil Leak Behind Torque Converter
Group: TRANSAXLENumber: 99-40-008
Date: MAY, 1999
Model: 1996-99 ELANTRA
1997-99 TIBURON
Subject
OIL LEAK BEHIND TORQUE CONVERTER
DESCRIPTION:

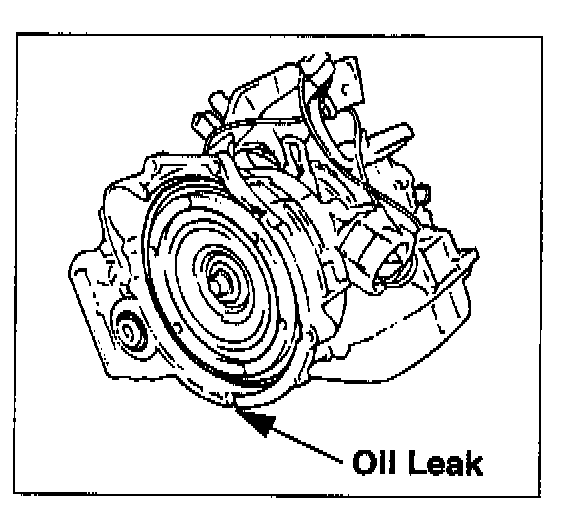

Some 1996-99 Elantra and 1997-99 Tiburon transaxles may experience an oil leak in the bellhousing behind the torque converter. If this occurs, the oil leak will be observed at the drain hole on the lower surface of the transaxle.
SERVICE INFORMATION:

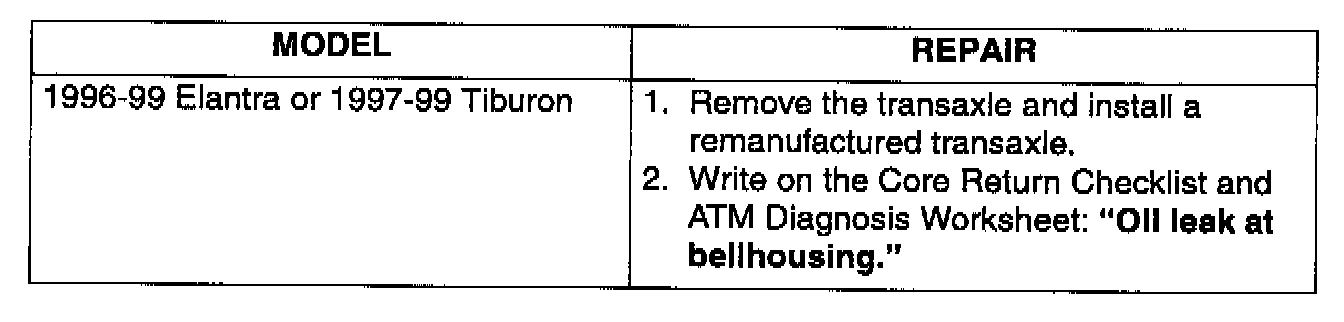

If you are servicing a vehicle with an oil leak in the bellhousing behind the torque converter, refer to the table below to determine the proper repair procedure.
WARRANTY INFORMATION:
Normal warranty labor times and operation codes apply.
