Clutch Master Cylinder Service Parts

Group: TRANSAXLE

Number: 98-40-008

Date: SEPTEMBER, 1998

Model:
96-98 ELANTRA & 98 TIBURON

Subject
CLUTCH MASTER CYLINDER
SERVICE PARTS

DESCRIPTION:

Beginning with October 14, 1997 production, Elantra and Tiburon models are equipped with a "G" type clutch master cylinder. The "G" type clutch master cylinder is interchangeable with the previous "N" type clutch master cylinder. This TSB provides interchangeability information.

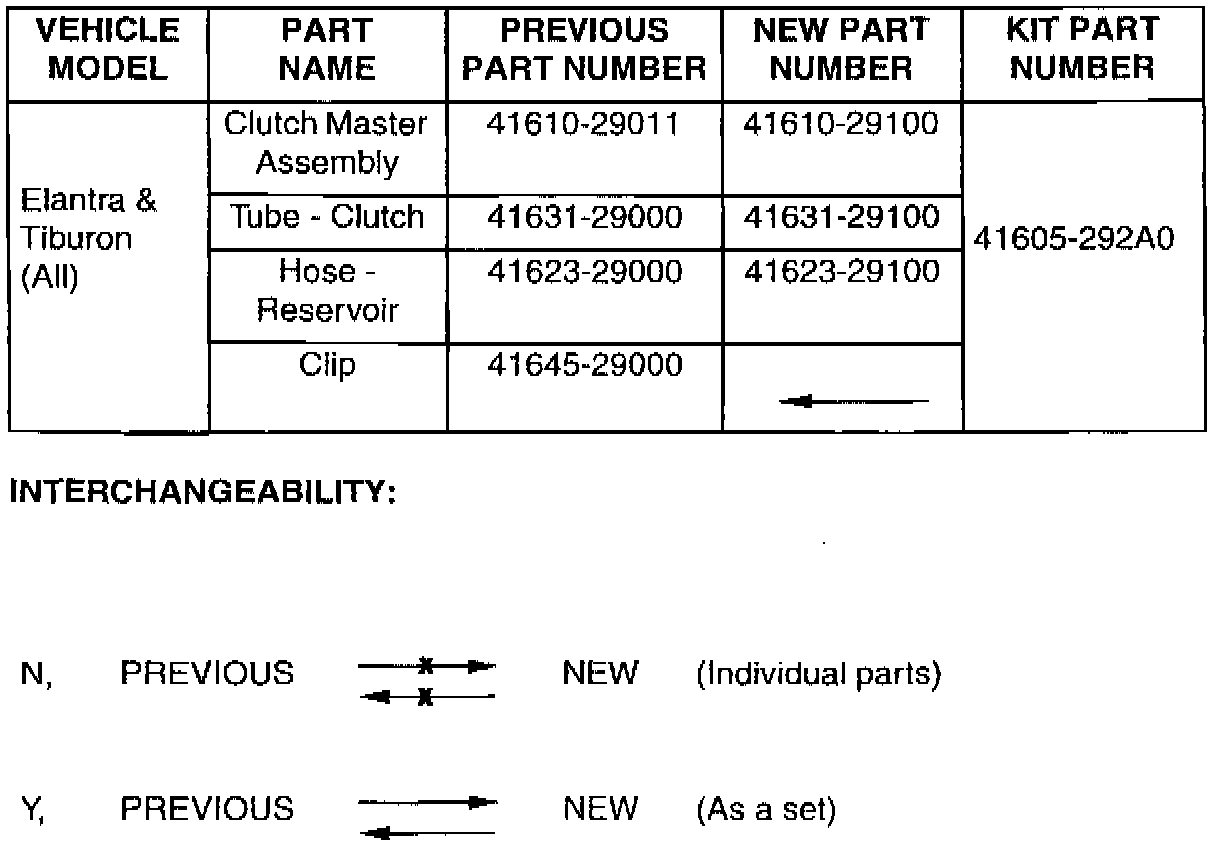

PARTS INFORMATION:

NOTE:
Kit part number contains all new part numbers.
