Clutch Pedal - Height Specification Update
Group: TransaxleNumber: 96-40-009
Date: June 1996
Model: 1996 Elantras with Manual Transaxle
Subject
CLUTCH PEDAL HEIGHT SPECIFICATION
SHOP MANUAL CORRECTION
DESCRIPTION

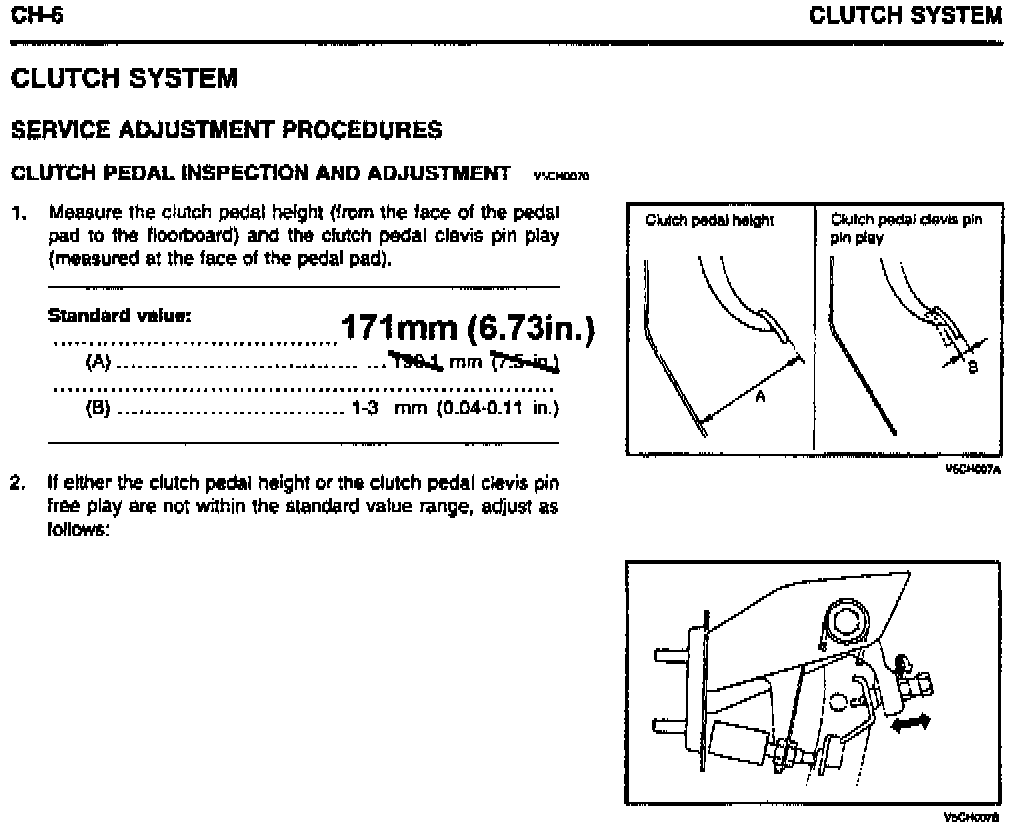

The 1996 Elantra Shop Manual clutch pedal height standard value specification on page CH-6 of Volume 1 is incorrect.
The correct clutch pedal height standard value specification (A) is 171 mm (6.73 in.).
Please make the corrections indicated, and write the TSB number at the bottom of page CH-6 for future reference.
