Fuel Sender - Resistance Specification
Group: BODY ELECTRICALNumber: 97-90-011
Date: JULY, 1997
Model: 1996-97 ACCENT
1996-97 ELANTRA
Subject:
FUEL SENDER RESISTANCE SPECIFICATION (SHOP MANUAL CORRECTION)
DESCRIPTION:
The resistance levels for the fuel sending unit listed in 1996-97 Accent and Elantra Shop Manuals Volume 2 are incorrect.
The correct fuel sender resistance specifications are listed below.
Please make the correction as indicated, and write the TSB number at the bottom of the page in the appropriate Shop Manuals for future reference.
Model Year Affected Pages
Accent 1996 BE-35
Accent 1997 BE-35
Elantra 1996 BE-64
Elantra 1997 BE-64

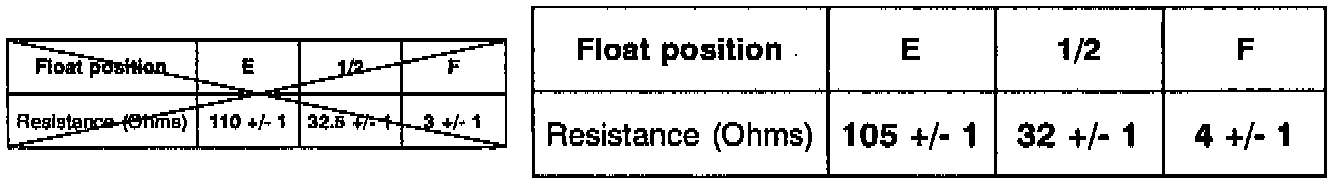

Correct values for Accent fuel sender resistance specification:
Correct values for Elantra fuel sender resistance specification:
