Installation Procedure

1. Slide the new cable connector cover end through the wire harness connector.

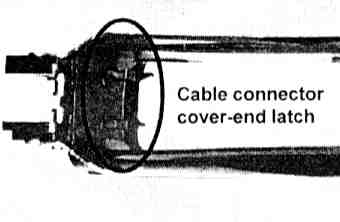

2. Fasten the rear lock latch on the wiring harness to the latch of the cable connector cover end.






3. Mount the harness connector into the cable connector cover end. Make sure the wire strands do not get caught between the harness connector and the cable connector cover end.

4. Install the cover retaining screw.






5. Install the plastic cover over the cable connector cover end.

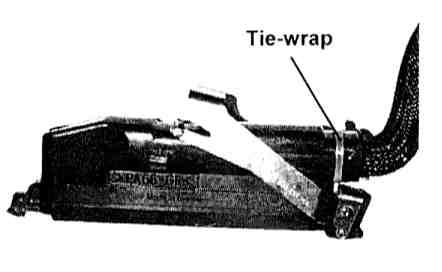

6. Tie wrap the plastic cover to the cable connector cover end.

Note:
See TSB # 97-09-001 for proper installation procedure for the HDS HYO2 adapter cable.
