Removal Procedure

1. Cut plastic tie that secures the top cover to the cable connector cover end.

2. Remove the top plastic cover.

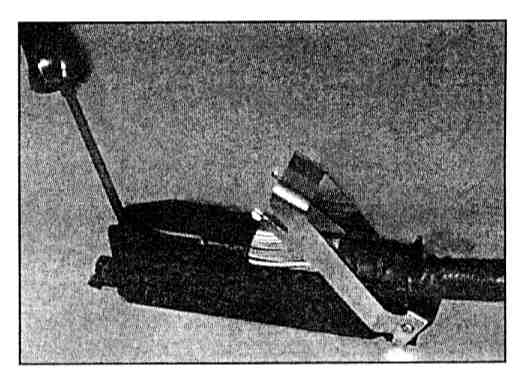

3. Using a Phillips screwdriver, remove the cover retaining screw.

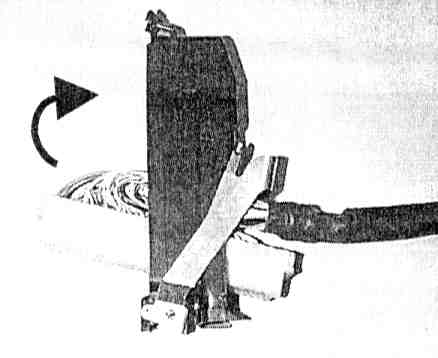

4. Tilt the cable connector cover end upward from the wire harness connector.

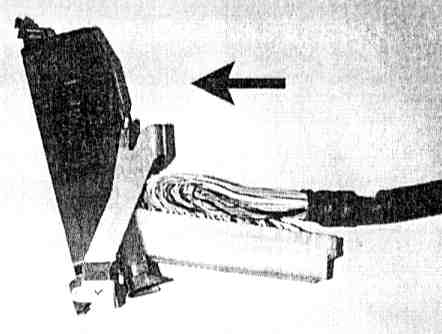

5. Slide the cable connector cover end off.
