M/T - Poppet Valve Design Change

Group: TRANSAXLE

Number: 97-40-012

Date: MAY, 1997

Model: 1997 TIBURON
1996-97 ELANTRA

Subject:
MANUAL TRANSAXLE POPPET VALVE DESIGN CHANGE

DESCRIPTION:





The current three piece poppet valve design (steel ball + spring + seal bolt) for all forward gears has been changed to a one piece monolithic type design, effective December 12, 1996.

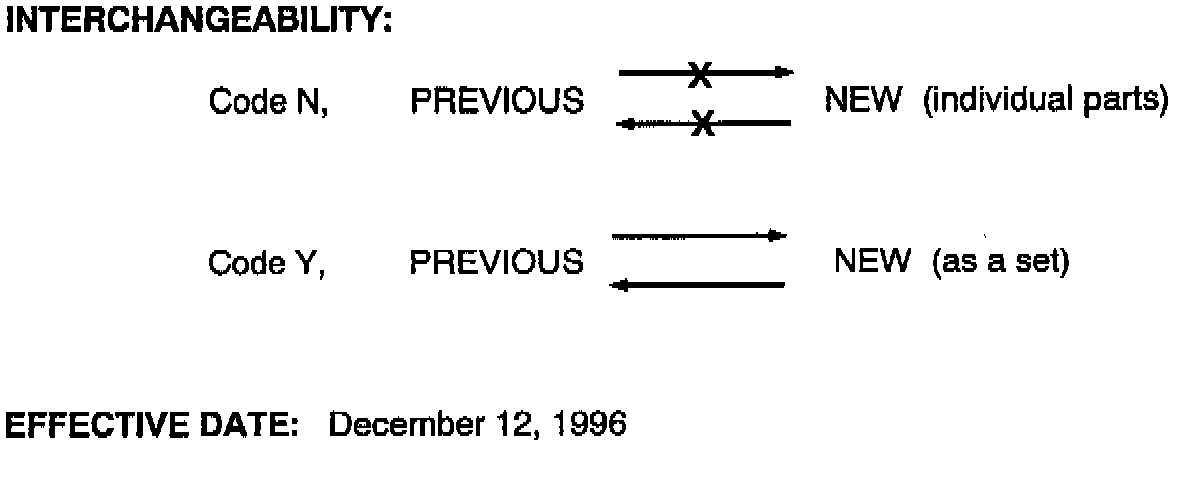

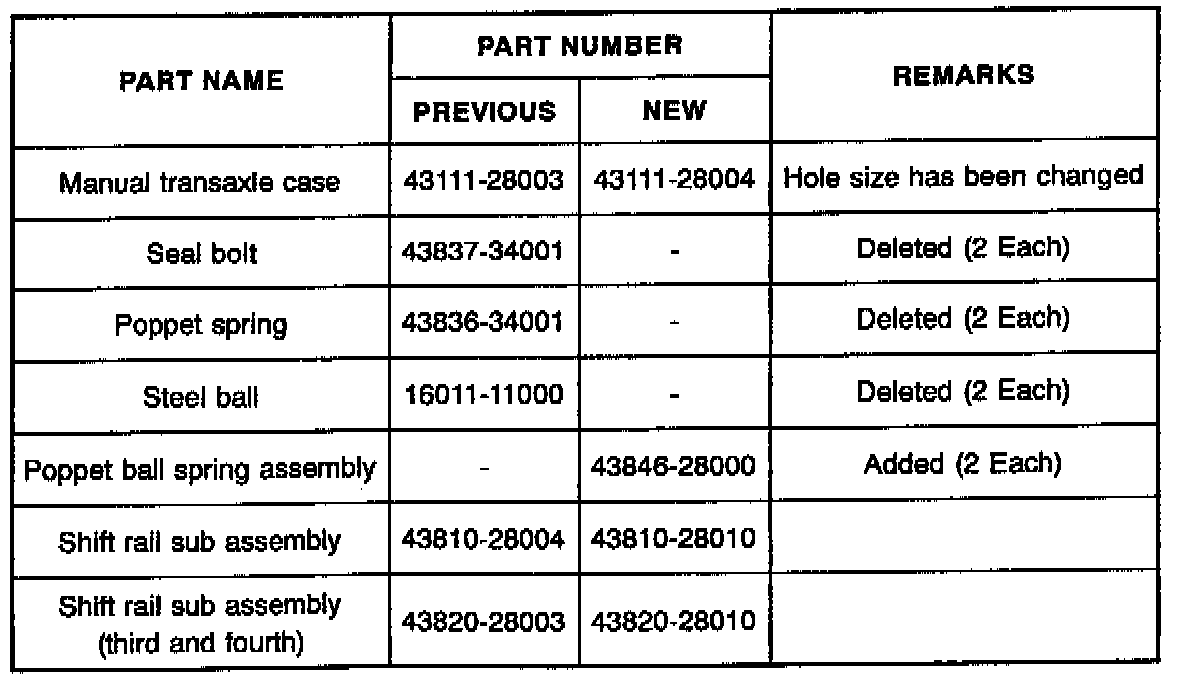

PARTS INFORMATION:
