OBD II - Diagnostic Trouble Codes

Group: GENERAL

Number: 96-00-007

Date: AUGUST, 1996

Model: ALL

Subject:
OBD II DIAGNOSTIC TROUBLE CODES

DESCRIPTION:

This bulletin provides a quick reference for 1996 OBD-II Diagnostic Trouble Codes (DTC). The 1995 DTC's are included in the table for reference. Please see TSB # 96-30-002 (OBD-II Service Data Description) for description of the service data under the 'DATA' menu on the Hyundai Scan Tool.

Note:
Please note Section 1 is for 1996 Sonata automatic transaxle only and Section 2 is for all OBD-II equipped vehicle.

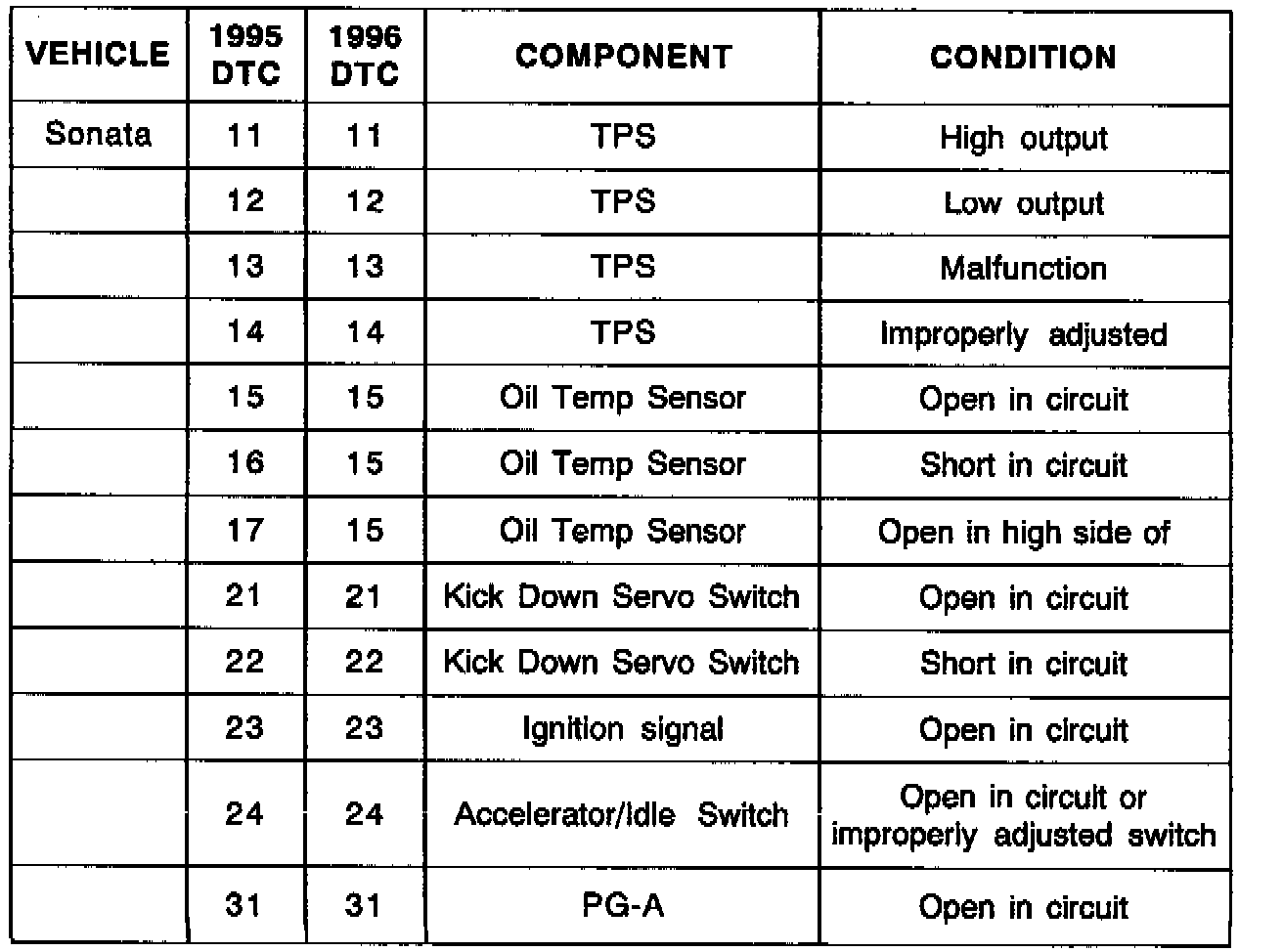

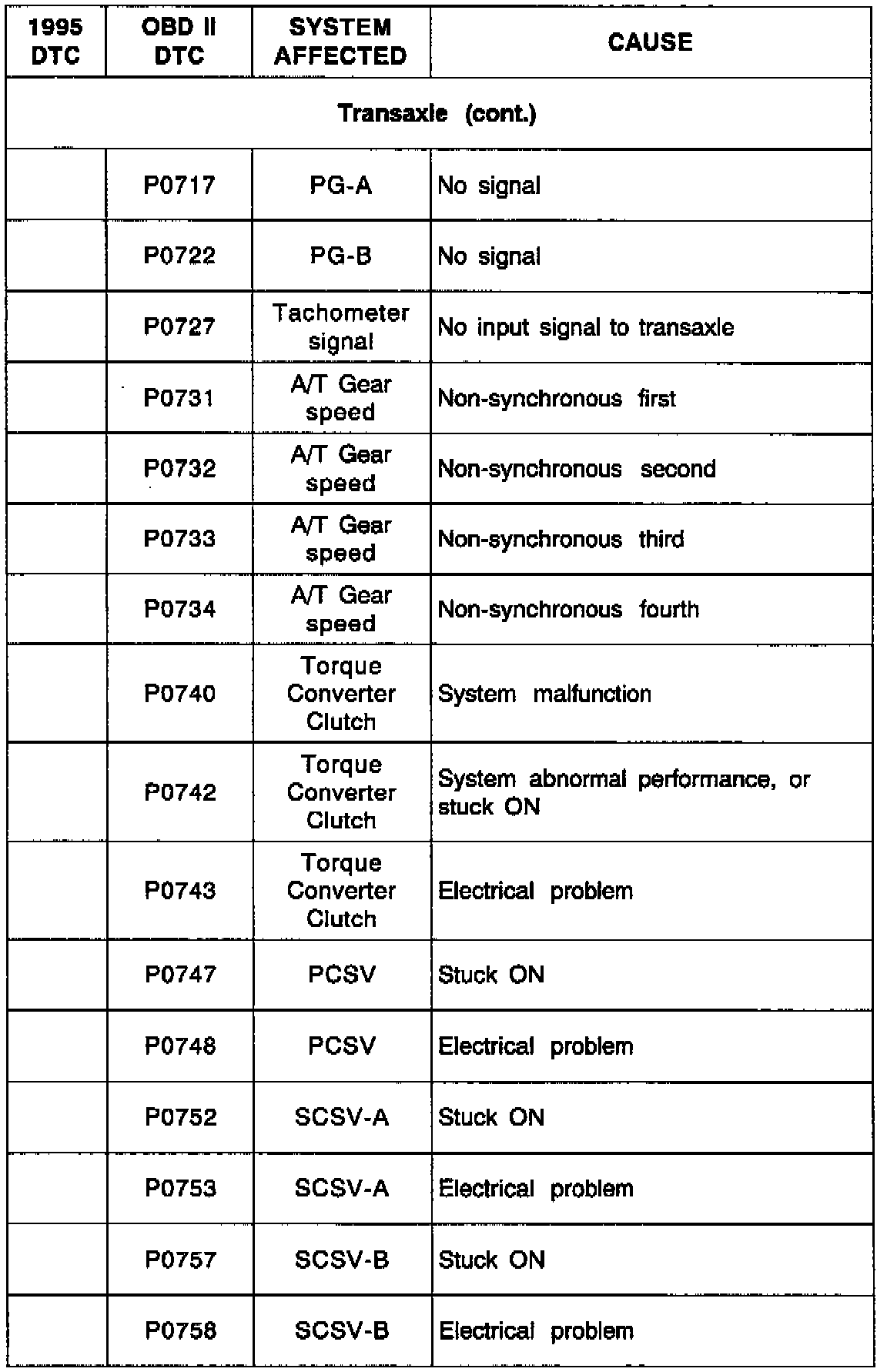

Section 1 - Sonata, Automatic Transaxle only

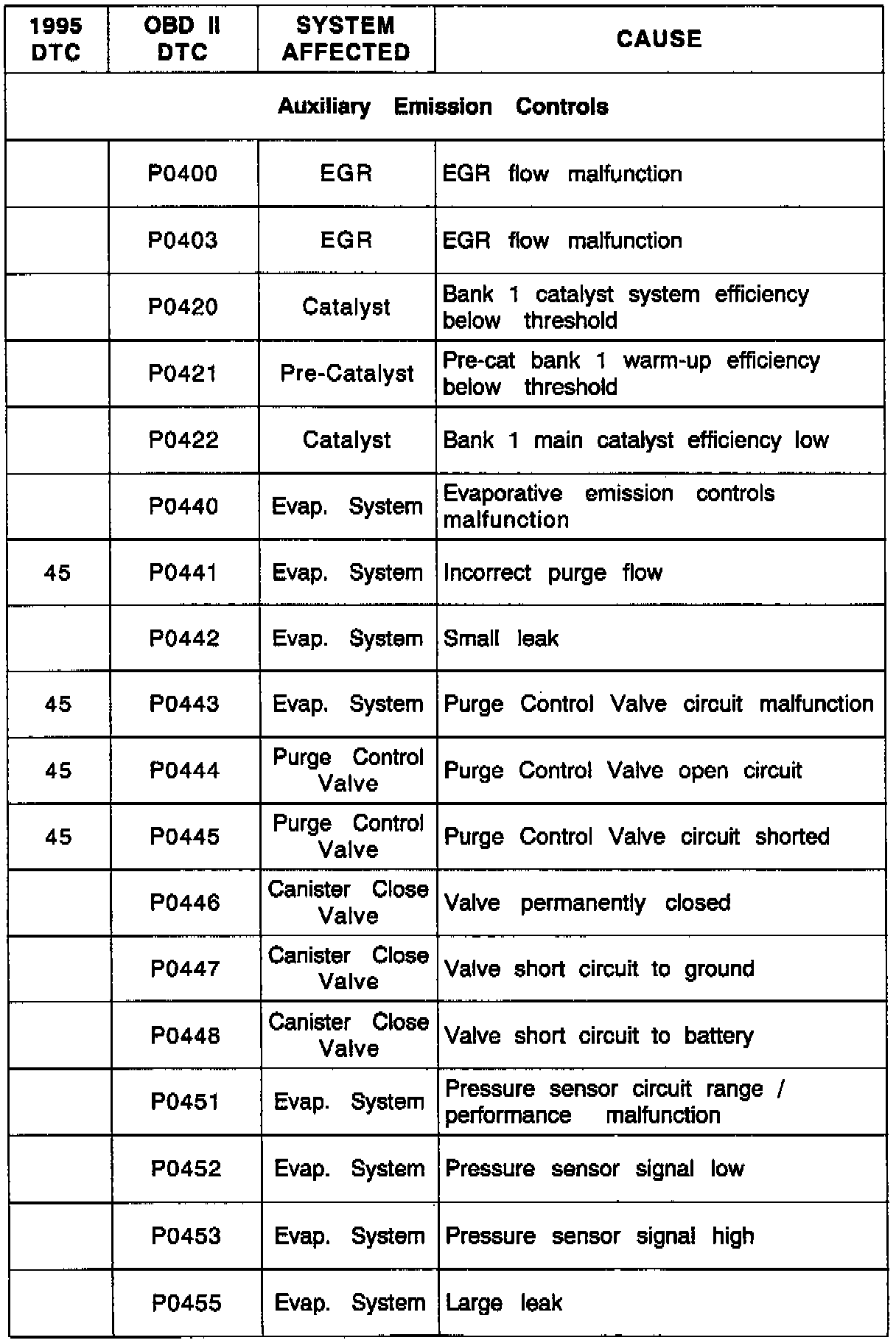

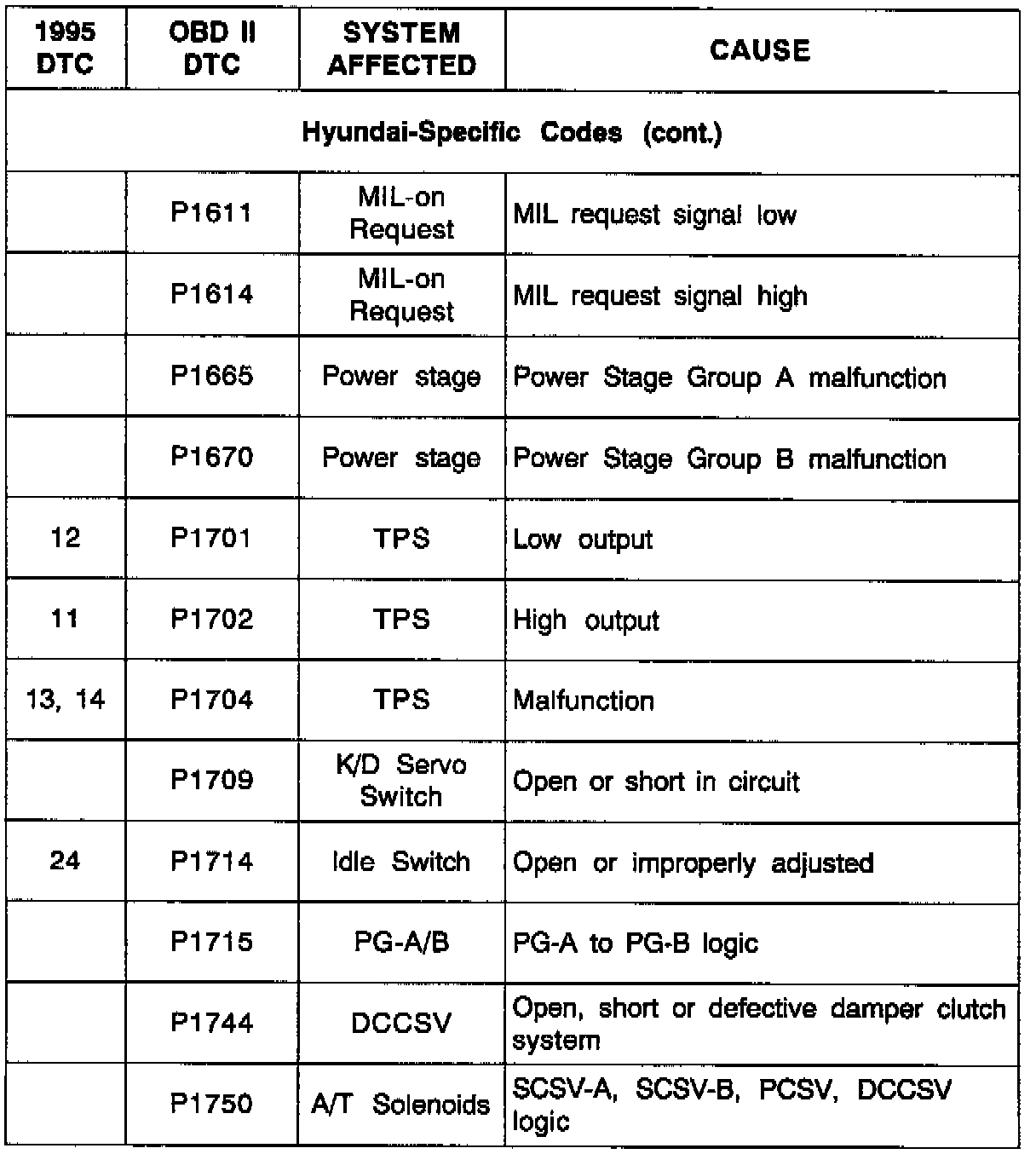

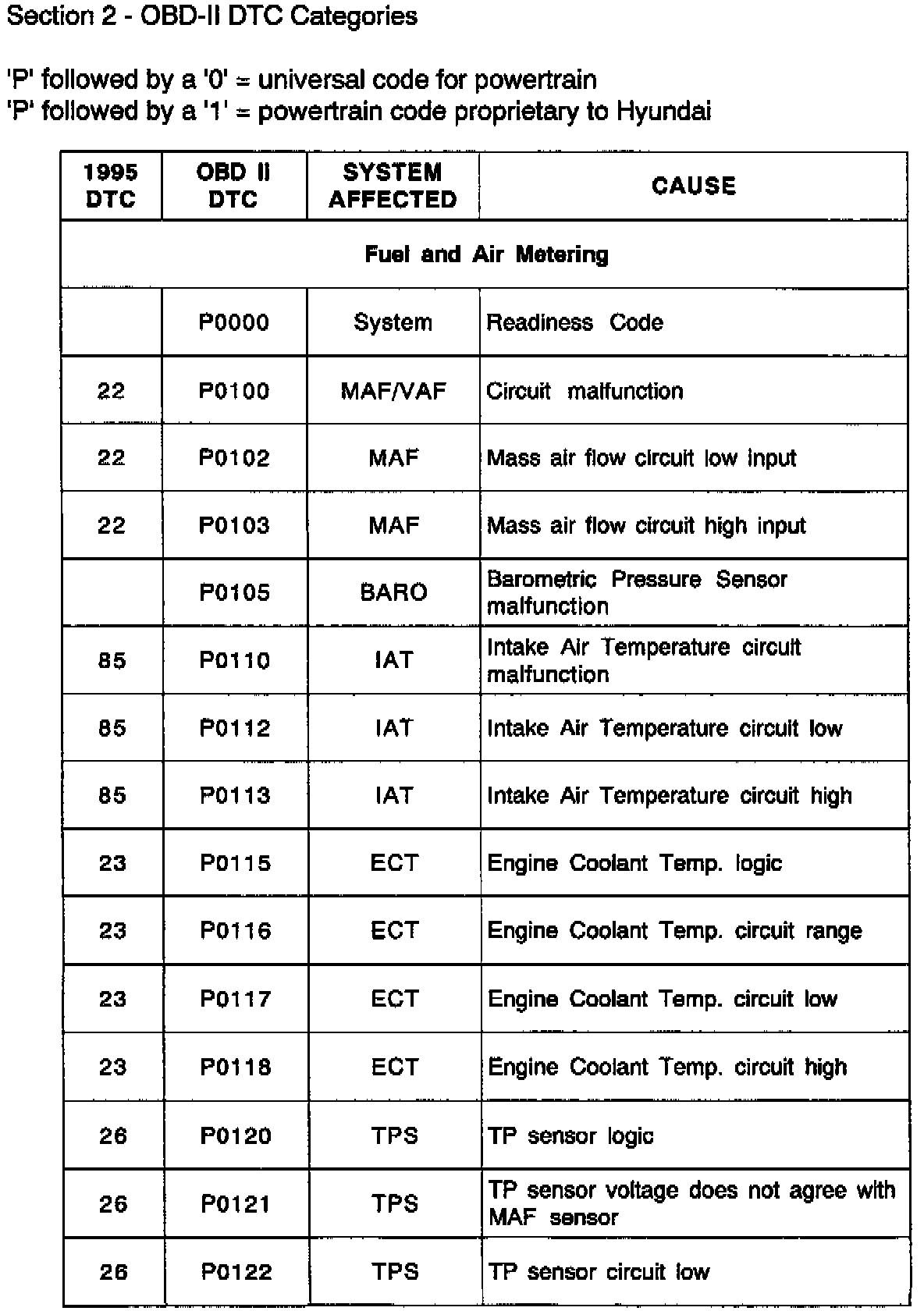

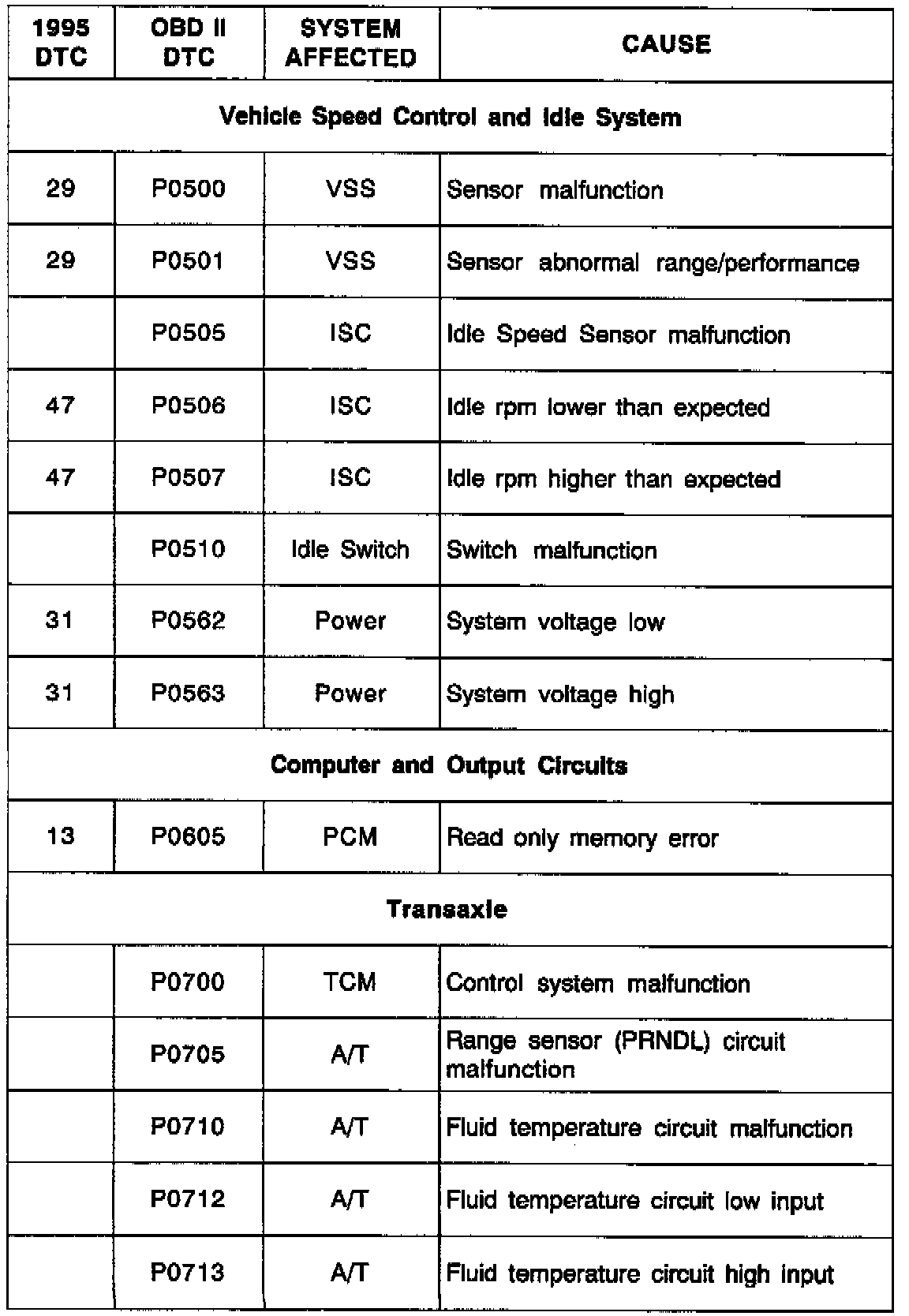

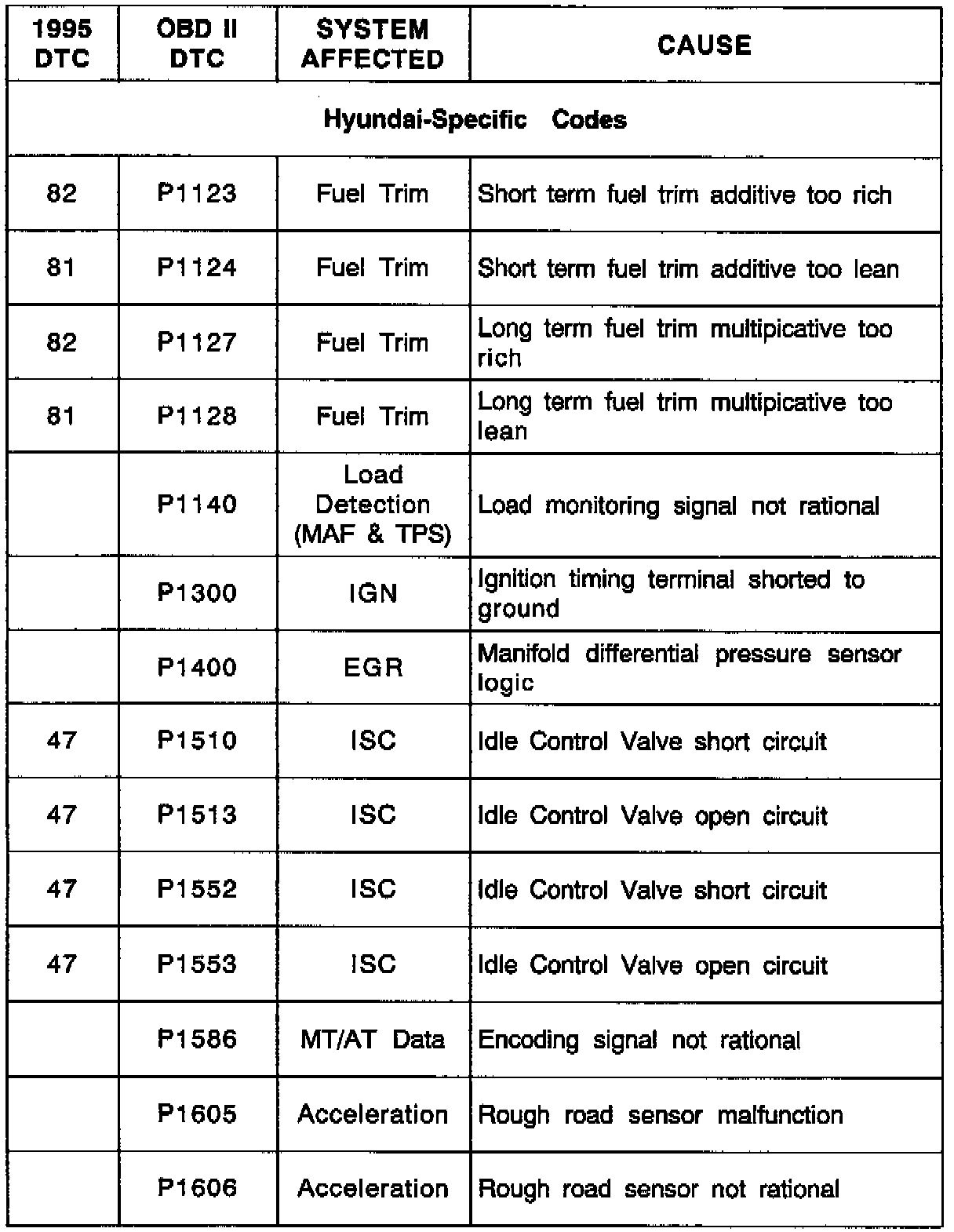

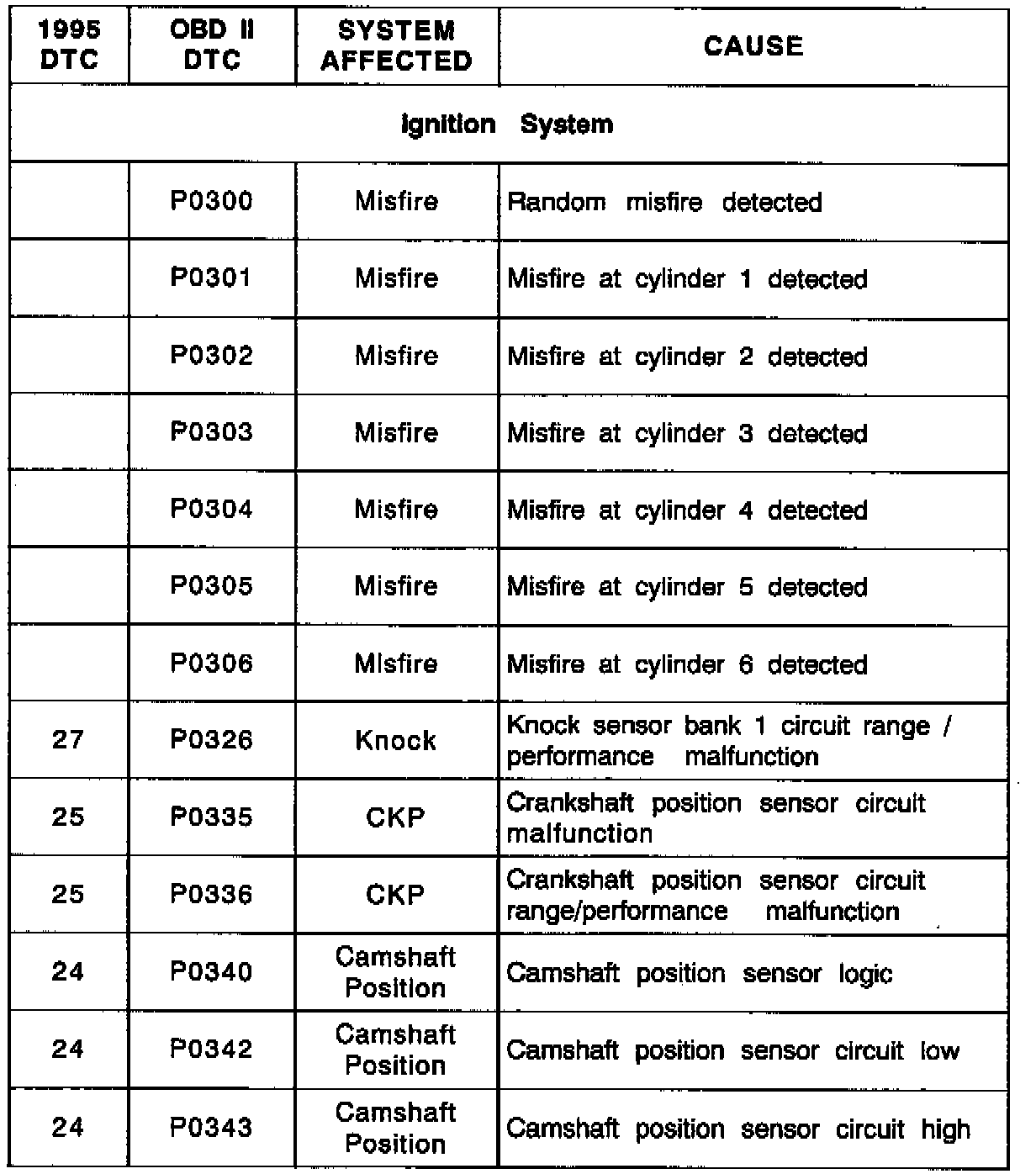

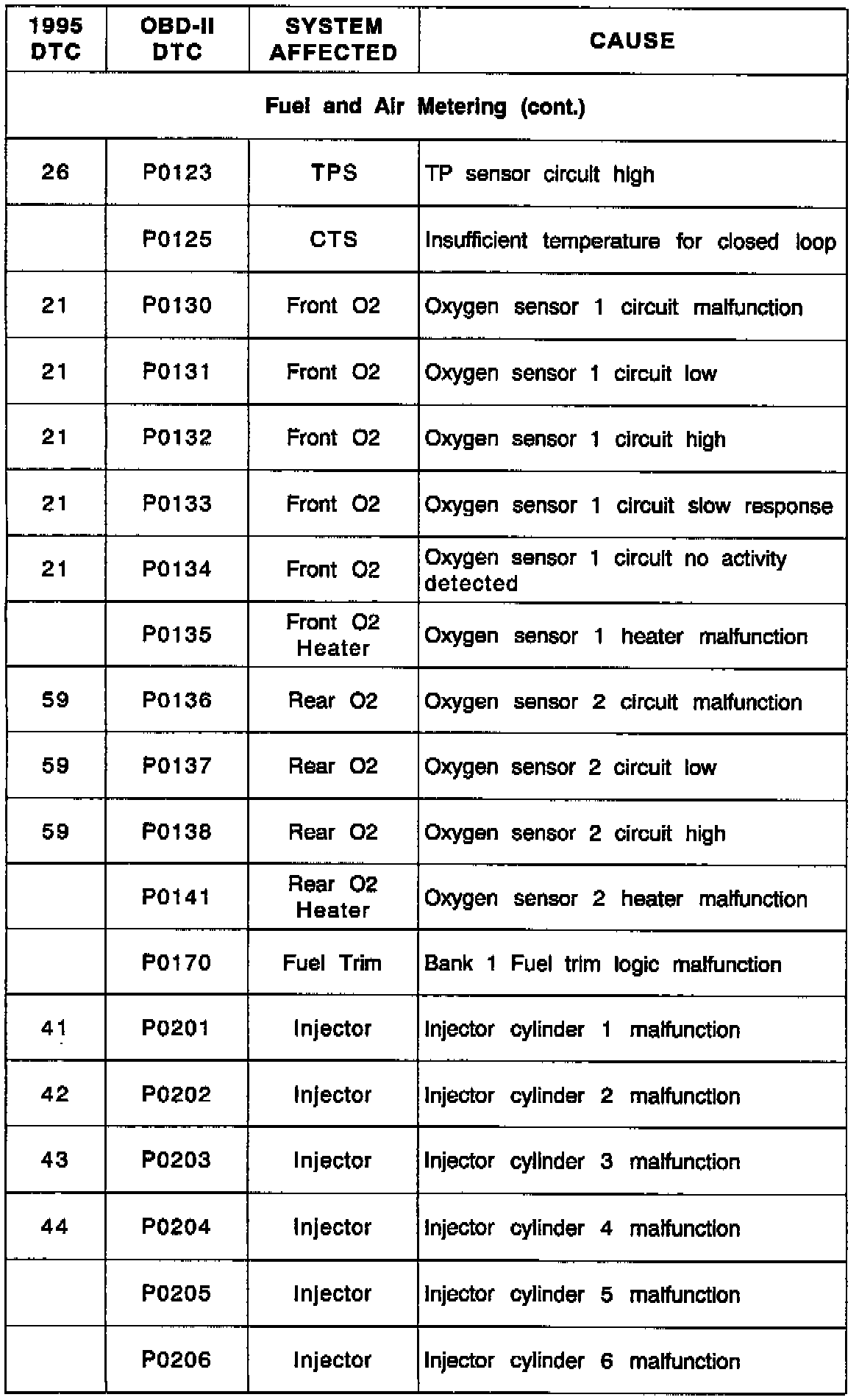

Section 2 - OBD-II DTC Categories
