Home >> Hyundai >> 1996 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C12 - C33

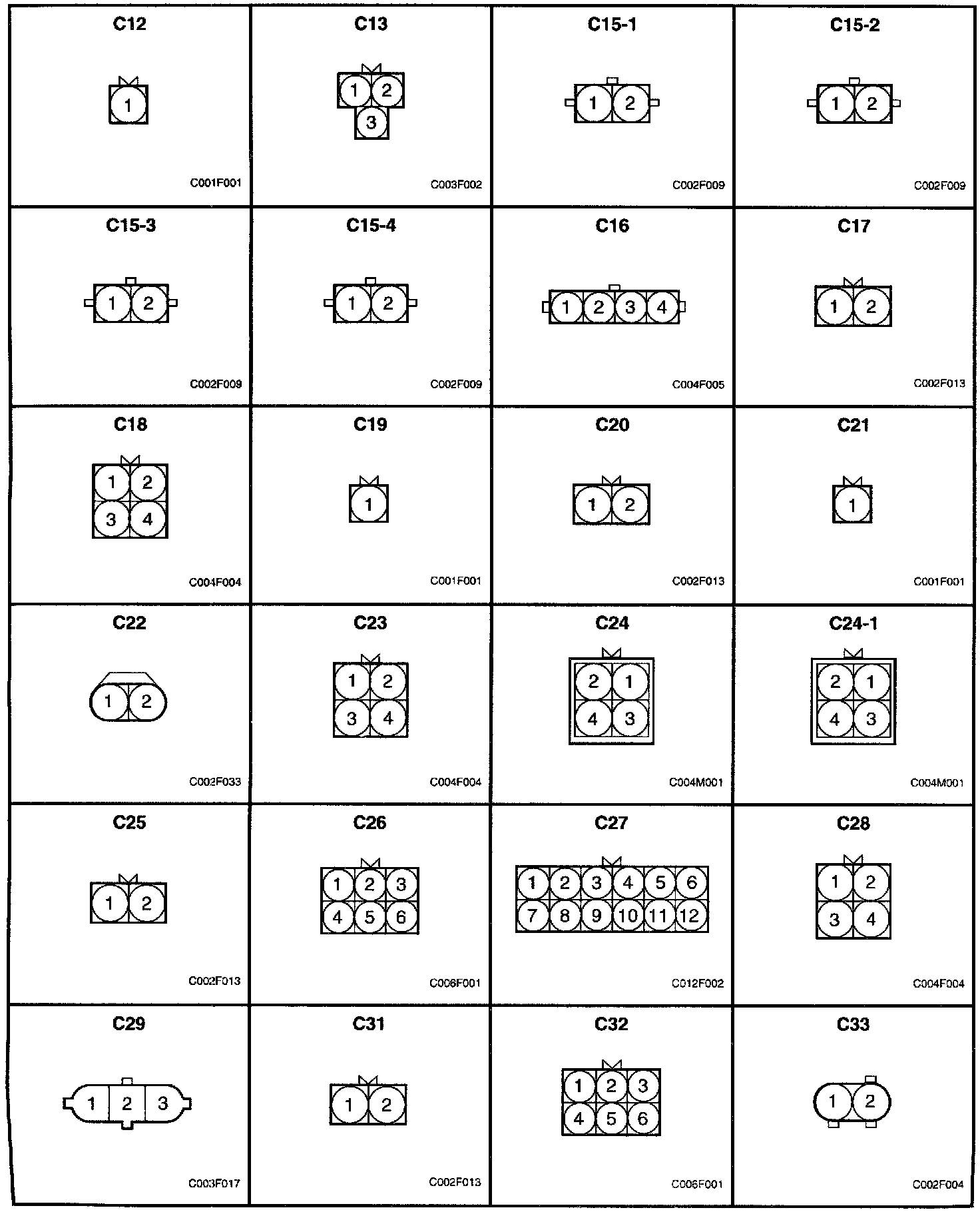

C12 - C33

C12 - C33:
