Home >> Hyundai >> 1996 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C34 - C52

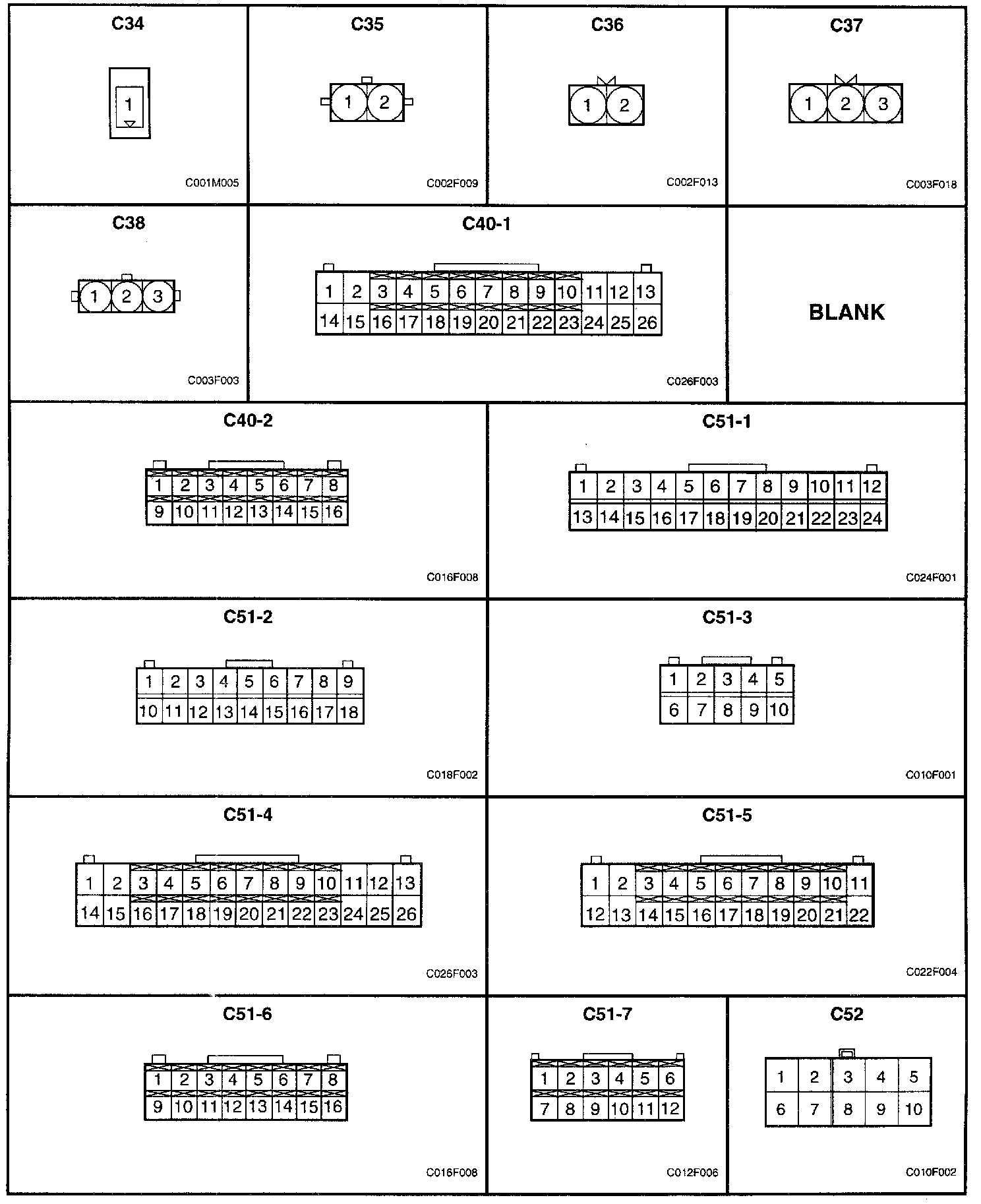

C34 - C52

C34 - C52:
