Home >> Hyundai >> 1996 >> Sonata L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heating and Air Conditioning >> Air Duct

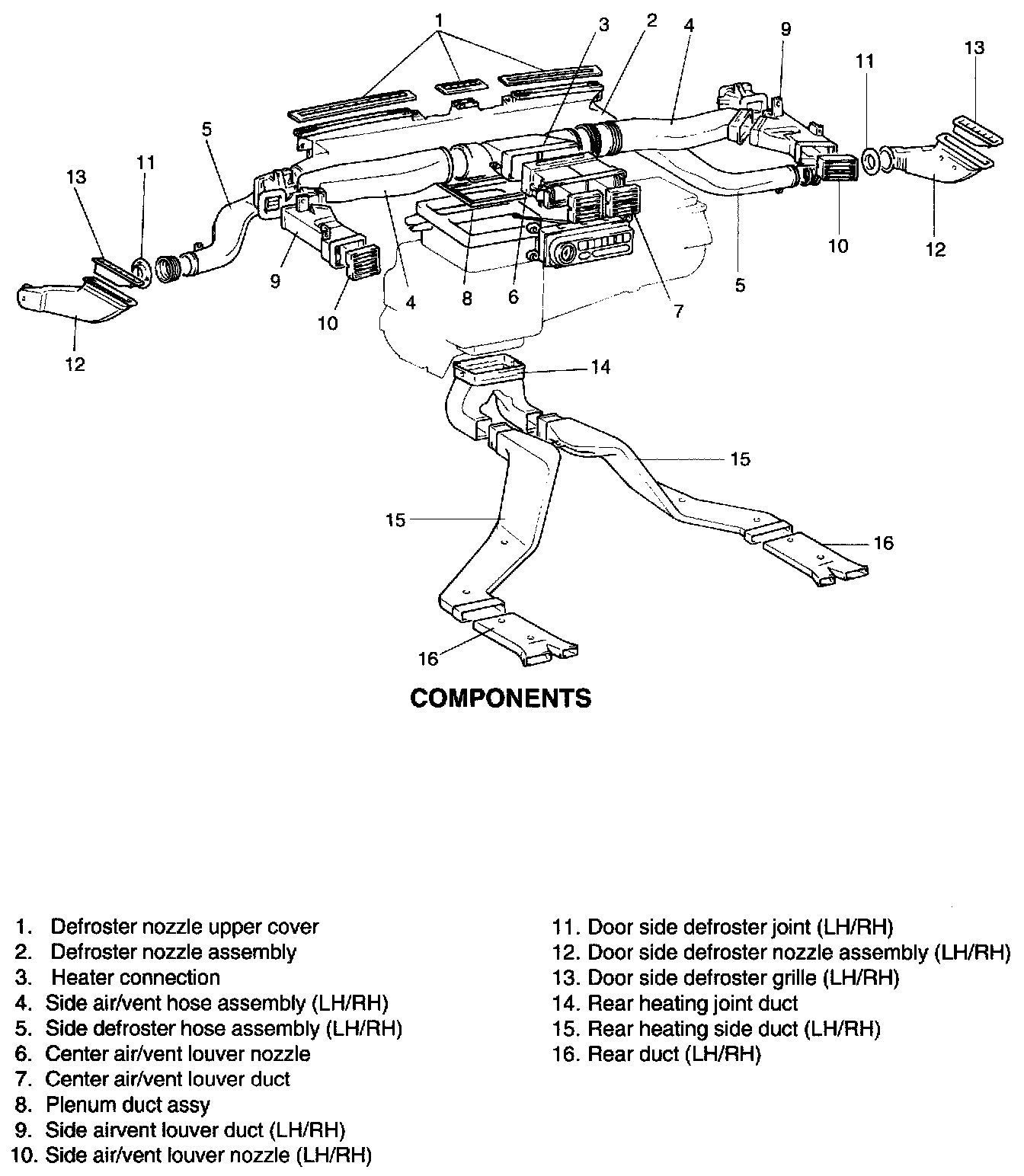

Air Duct






DUCT SYSTEM
