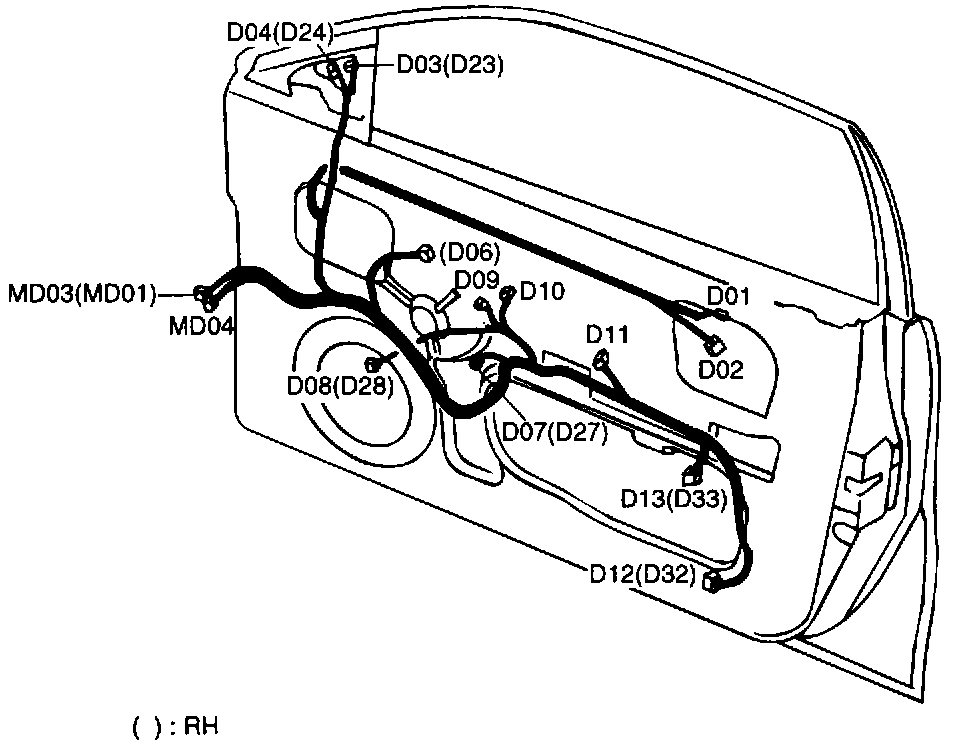

Door Harness (Front)

Door Harness (Front):

D01 Door unlock switch (B/Alarm)
D02 Door key ILL. lamp (Without B/Alarm)
D03 Tweeter speaker
D23 Tweeter speaker
D04 Outside mirror motor & Defogger
D24 Outside mirror motor & Defogger
D06 Power window switch (RH)
D07 Power window motor
D27 Power window motor
D08 Door speaker
D28 Door speaker
D09 Power window switch (LH)
D10 Power mirror switch
D11 Trunk lid opener switch
D12 Door actuator
D32 Door actuator
D13 Door lamp
D33 Door lamp
MD01 Connection with main harness (RH)
MD03 Connection with main harness (LH)
MDO4 Connection with main harness (LH)
