Engine Harness

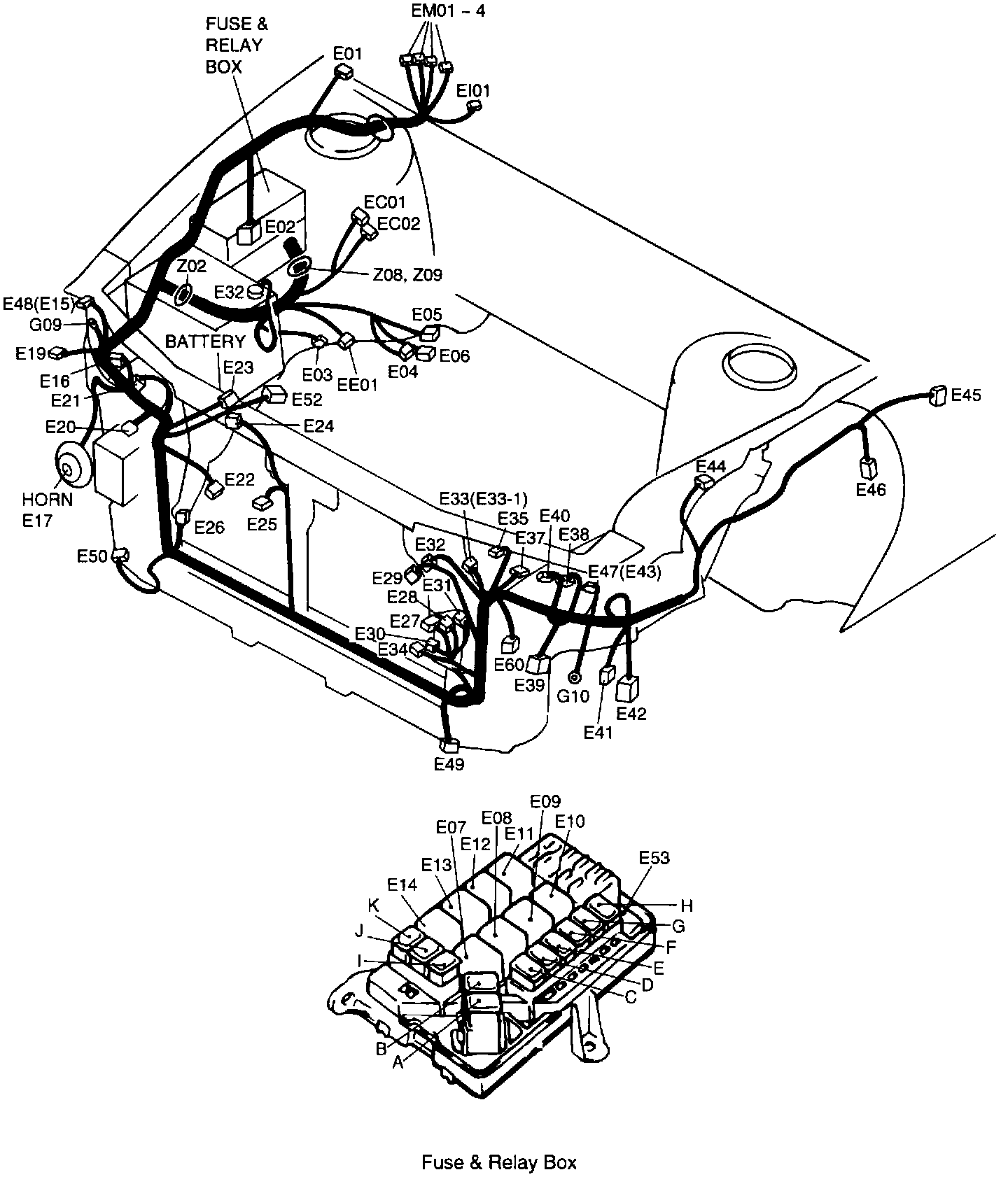

Engine Harness (1):

E01 Side repeater lamp (RH)
E02 ABS wheel sensor (Front RH)
E03 Connection with start solenoid ext.
E03-1 Start solenoid
E04 ABS modulator
E05 ABS relay box
E06 ABS relay box
E06-1 ABS motor pump
E07 A/C relay
E08 Tail relay
E09 Head lamp relay
E10 Head lamp relay
E11 Radiator fan relay (LOW)
E12 Radiator fan relay (HI)
E13 Condenser fan relay(LOW)
E14 Condenser tan relay (HI)
E15 Turn signal lamp (RH) (Except NAS)
E16 Head lamp (RH) (Except NAS)
E17 Horn (RH)
E19 Head lamp low beam (RH) (NAS)
E20 HLLD actuator (RH)
E21 Head lamp Hi beam (RH) (NAS)
E22 Radiator fan
E23 Dim dip module
E24 Front hood switch
E25 Horn (Center)
E26 Radiator resistor
E27 Generator (B+)
E28 Generator (L, R)
E29 P/Steering switch
E3O Oil pressure switch
E31 Condenser resistor
E32 Condenser fan
E33 A/C pressure switch (HIGH) (Except M/EAST)
E33-1 A/C cut off switch (M/EAST)
E35 Head lamp Hi beam (LH) (NAS)
E36 Battery
E37 HLLD actuator (LH)
E38 Head lamp low beam (LH) (NAS)
E39 Head lamp washer relay
E40 Head lamp (LH) (Except NAS)
E41 Head lamp washer motor
E42 Wind Shield washer motor
E43 Turn signal lamp (LH) (Except NAS)
E44 DRL control module
E45 Side repeater lamp (LH)
E46 ABS wheel sensor (Front LH)
E47 Turn signal lamp (LH) (NAS)
E48 Turn signal lamp (RH) (NAS)
E49 Front fog lamp (LH)
E50 Front fog lamp (RH)
E52 DRL relay
E53 Start relay
E60 DRL resistor
EC01 Connection with control harness
EC02 Connection with control harness
EI01 Connection with instrument harness
EM01 Connection with main harness
EM02 Connection with main harness
EM03 Connection with main harness
EM04 Connection with main harness
Z02 DRL relay Diode
Z08 Radiator fan motor Diode
Z09 Exterior lamp Diode
G09 Fender earth (RH)
G10 Fender earth (LH)
