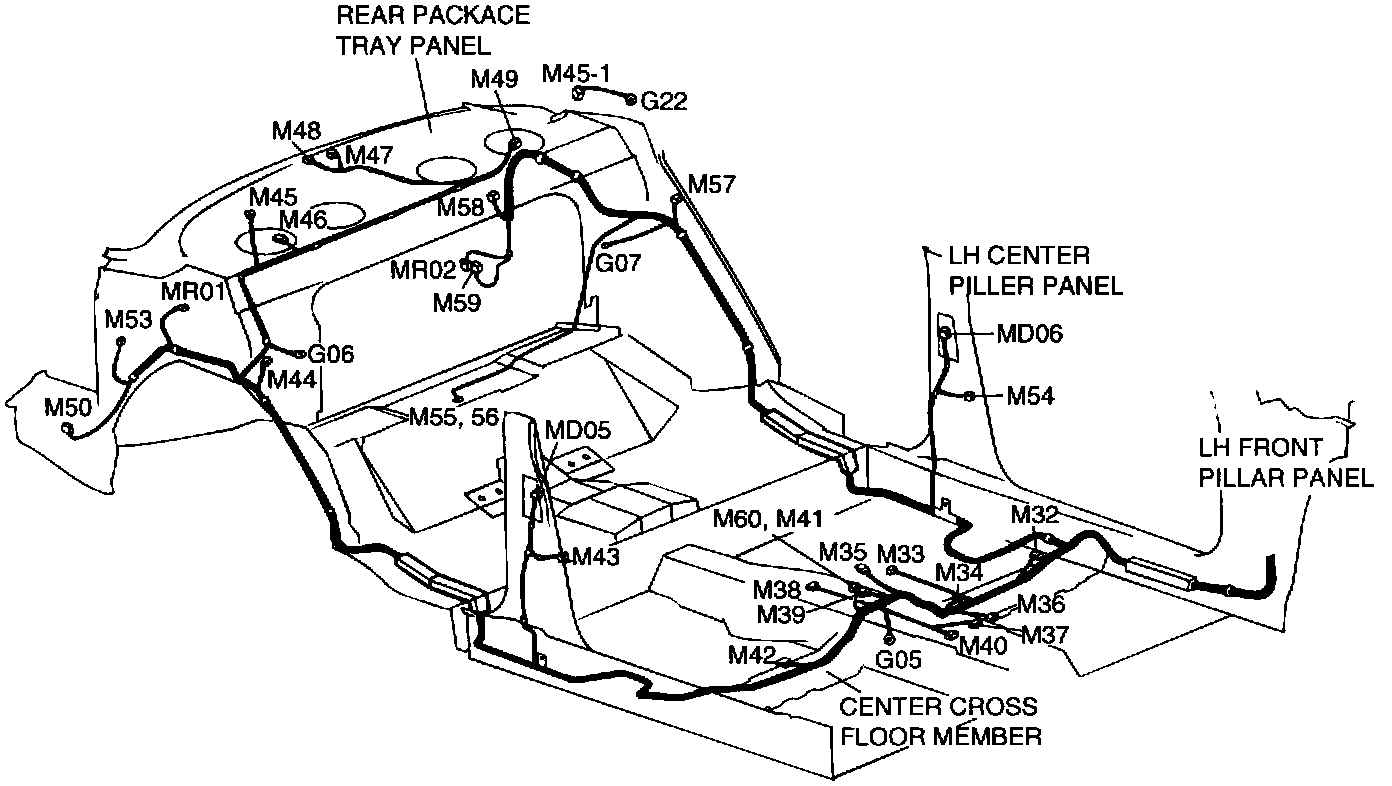

Main Harness (2)

Main Harness (2):

M32 Power seat switch
M33 Seat belt switch (Without rear fog)
M34 Seat warmer (Front LH)
M35 Keyless entry control module (B/Alarm)
M36 Seat warmer switch (Front LH)
M37 Power/Normal switch (A/T)
M38 Heated oxygen sensor (REAR)
M39 Parking brake switch
M4O Seat warmer switch (Front RH)
M41 ATM shift lever
M42 Seat warmer (Front RH)
M43 Front door switch (RH)
M44 Rear door switch (RH)
M45 Rear defogger glass (+)
M45-1 Rear defogger glass (-)
M46 Rear speaker (RH)
M47 High mounted stop lamp
M48 Trunk room lamp
M49 Rear speaker (LH)
M50 ABS wheel sensor (Rear RH)
M53 Defogger timer (Without ETACS)
M54 Front door switch (LH)
M55 Fuel pump sensor
M56 Fuel pump motor
M57 Rear door switch (LH)
M58 Power antenna
M59 ABS wheel sensor (Rear RH)
M60 Key inter lock switch (NAS With A/T)
MD05 Connection with rear door harness (RH)
MD06 Connection with rear door harness (LH)
MR01 Connection with T/Lid harness
MR02 Connection with T/Room harness
G05 Console earth
G06 Rear earth (RH)
G07 Rear earth (LH)
G22 Rear defogger glass earth
