Dash Console and Switch Lamps

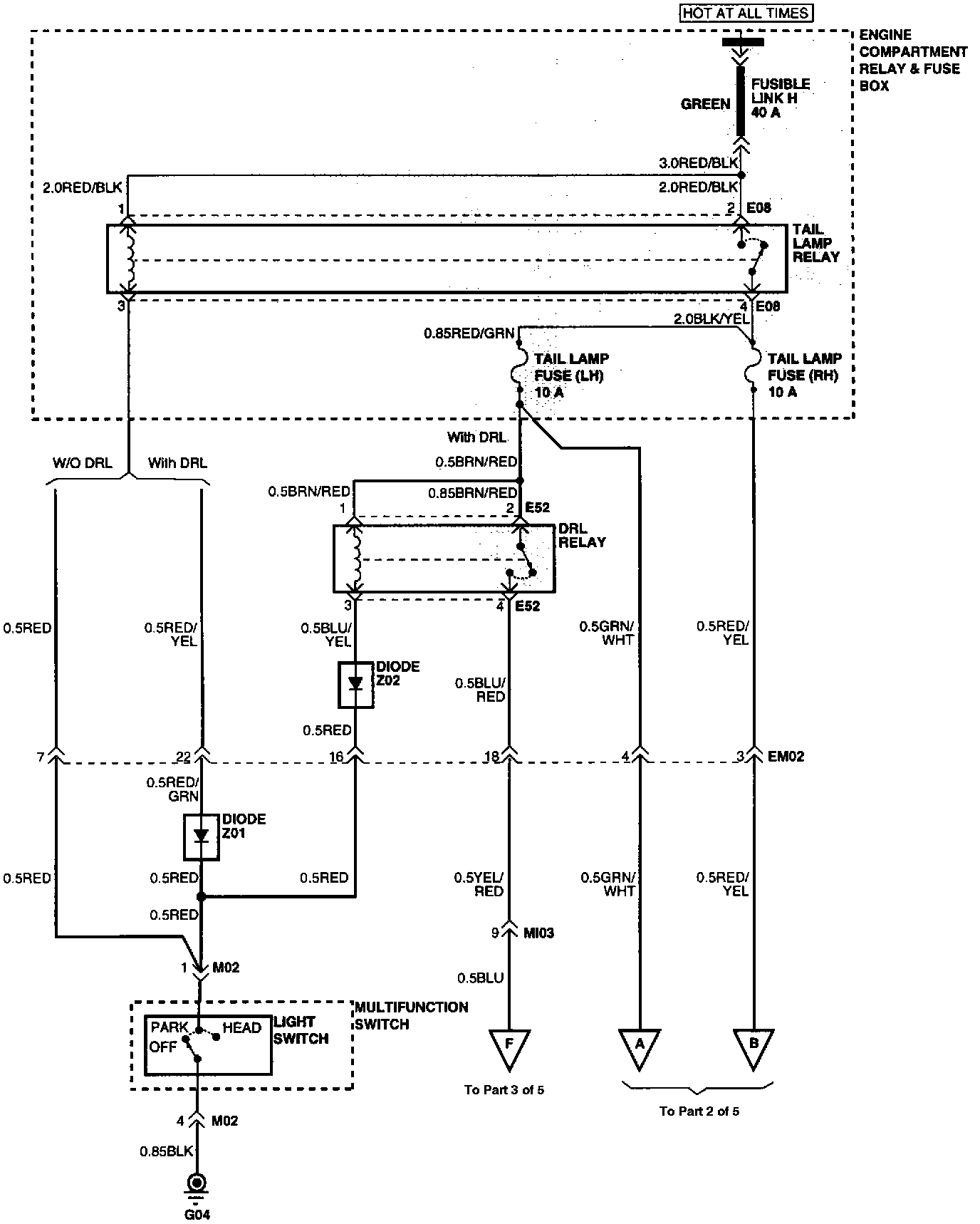

Dash, Console And Switch Lamps (Part 1 Of 5):

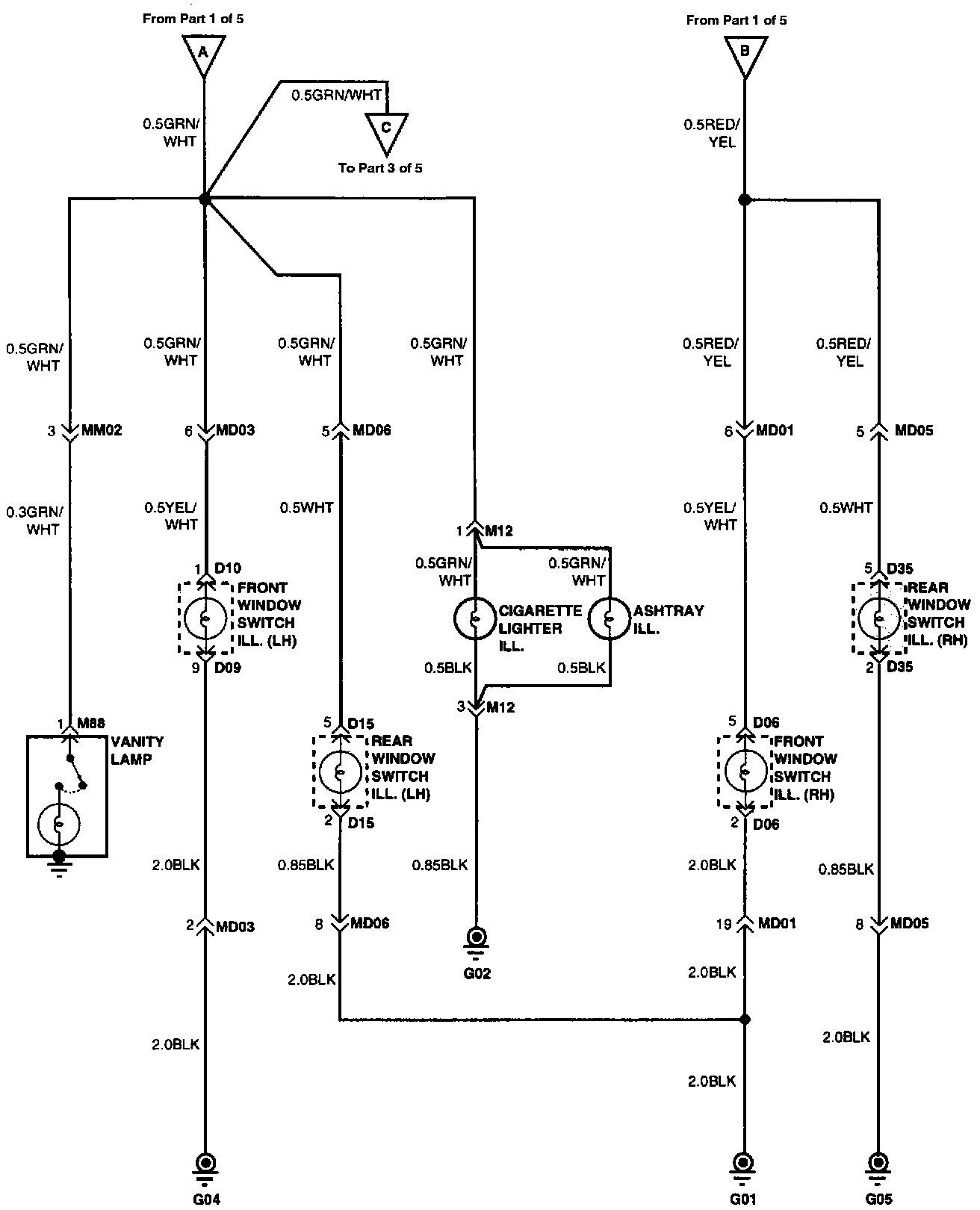

Dash, Console And Switch Lamps (Part 2 Of 5):

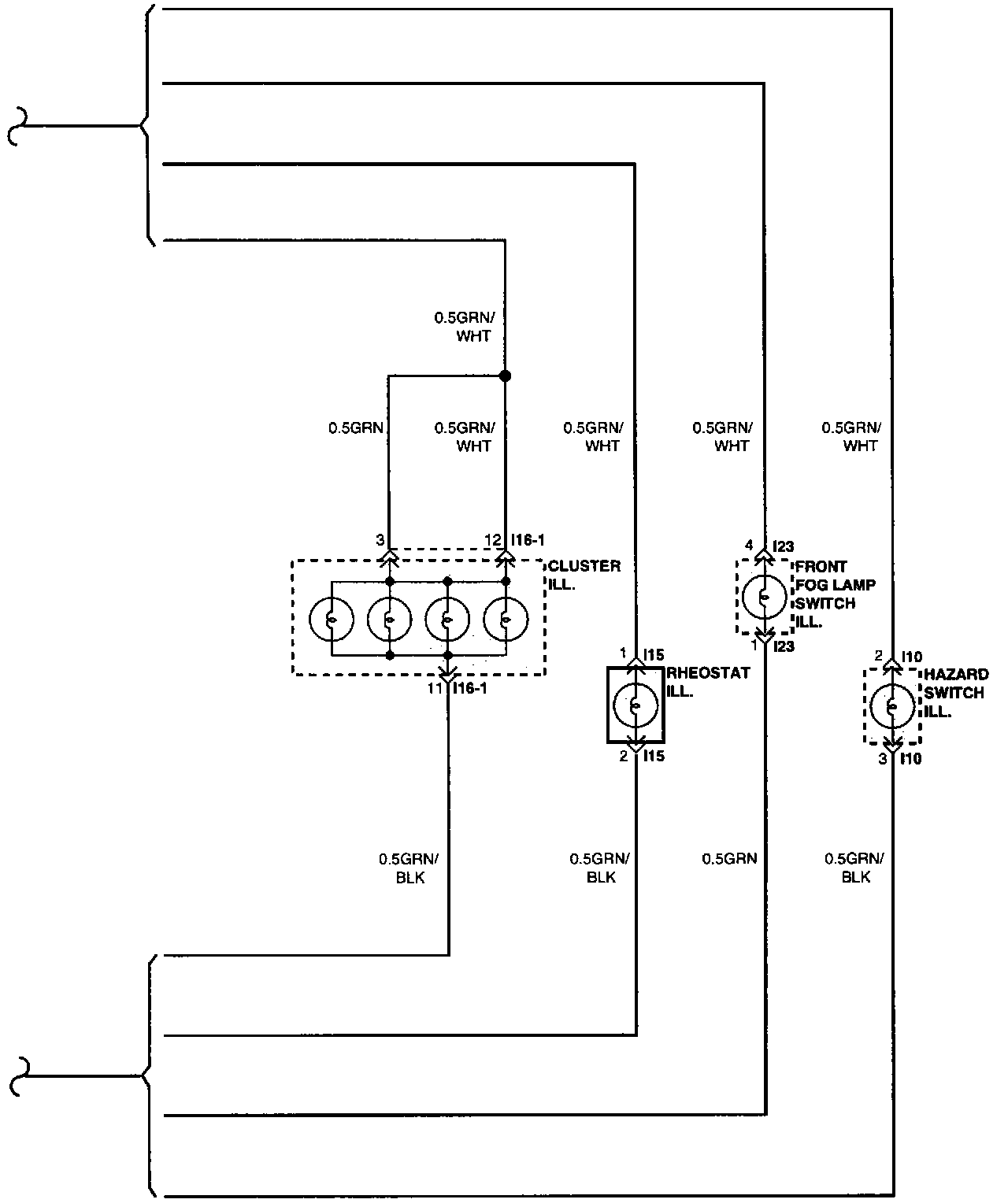

Dash, Console And Switch Lamps (Part 3 Of 5):

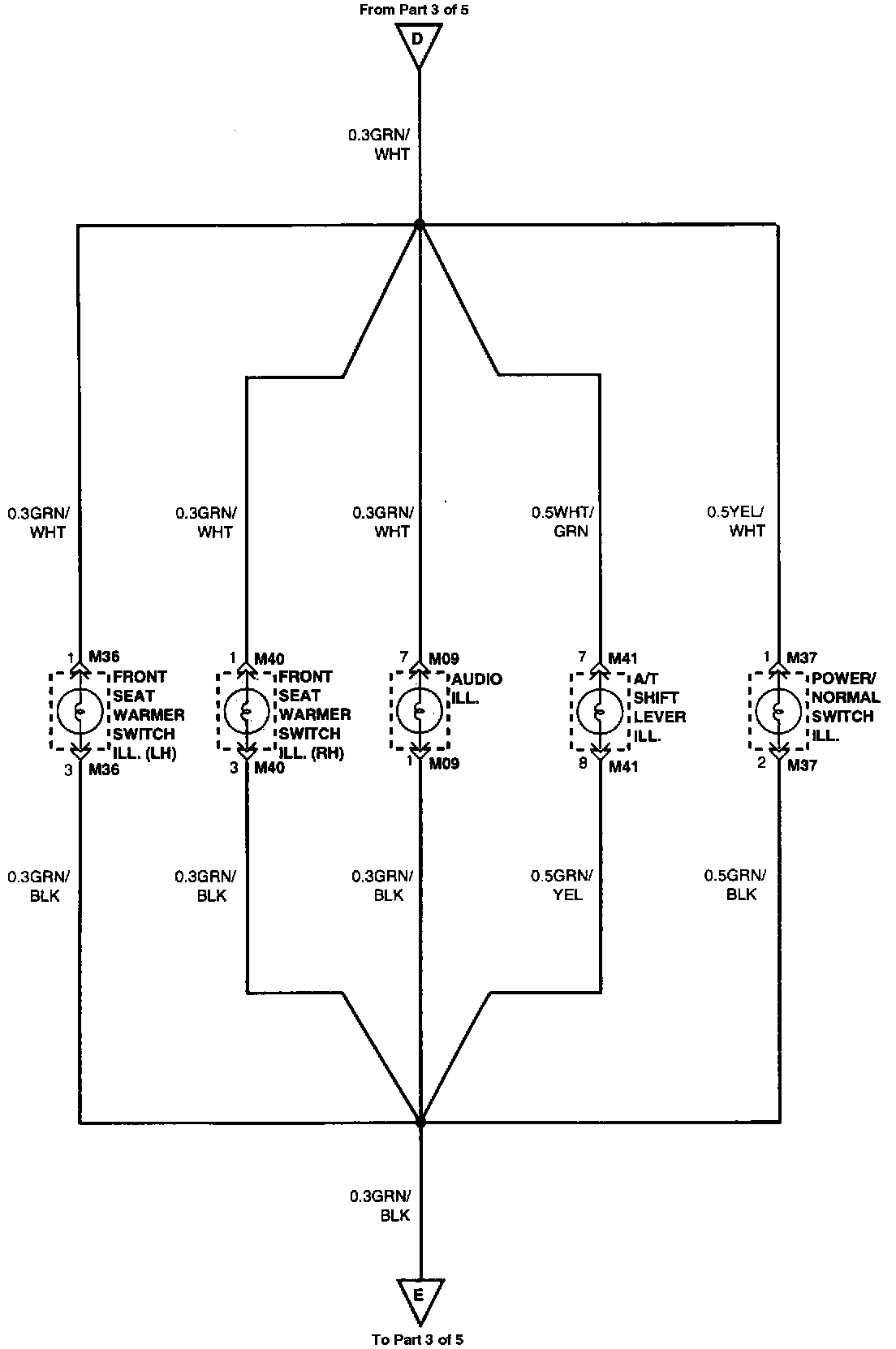

Dash, Console And Switch Lamps (Part 4 Of 5):




Dash, Console And Switch Lamps (Part 5 Of 5):
