Instrument Harness

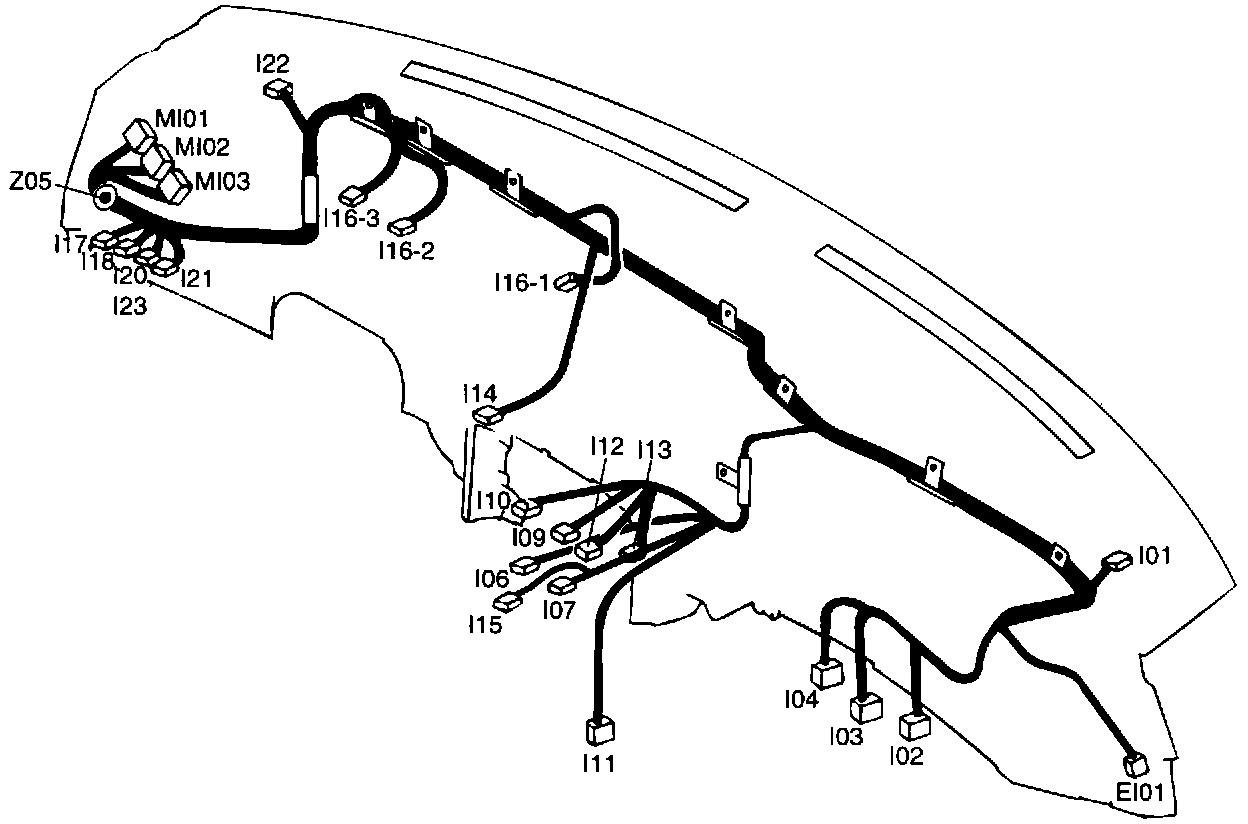

Instrument Harness (1):

101 Front speak (RH)
102 Thermostat
103 Blower motor
104 Blower resistor (Manual A/C)
105 Blower relay
106 Heater control ILL. & Blower actuator switch
107 Blower switch
109 A/C actuator (Manual A/C)
110 Hazard switch
111 A/C switch
112 Digital clock
113 Defogger switch
114 Rheostat
115 Rheostat ILL.
116-1 Cluster
116-2 Cluster
116-3 Cluster
117 Rear fog lamp switch
118 Cruise control switch
120 Head lamp leveling device switch
121 Head lamp washer switch
122 Front speak (LH)
MI01 Connection with main harness
MI02 Connection with main harness
MI03 Connection with main harness
EI01 Connection with engine harness
Z05 Fog lamp relay Diode
