Fuel Delivery and Air Induction: Adjustments

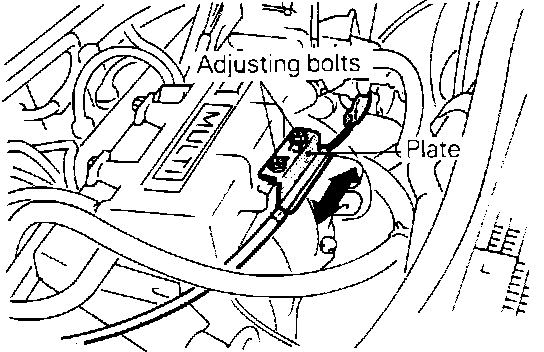

Accelerator Cable Adjustment Bolts:

1. Loosen the adjusting bolts.
2. Adjust the accelerator cable free play.

Clearance: 1 - 2 mm (0.04 - 0.08 in)

3. Tighten the adjusting bolts.
4. Confirm that the throttle valve fully opens and closes by operating the accelerator pedal.

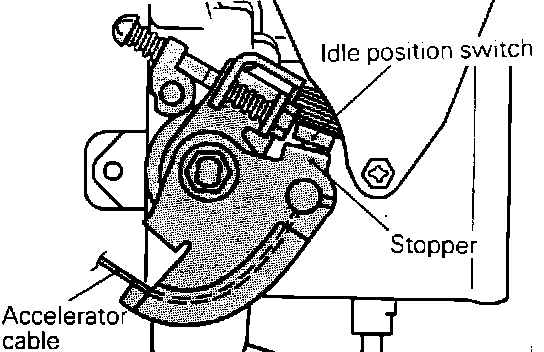

Accelerator Cable, Throttle Body End:

5. Confirm that the throttle lever stopper touches the idle position switch.
