Ignition Power Voltage Circuit (Voltage Too High/Low)

Voltage Too High/Too Low

The SRSCM measures the voltage at the ignition input to detect an operating voltage out of the normal operating range.

NOTE:
When the ignition voltage supply fuse (No. 12) is blown out, the Scan Tool cannot communicate with SRSCM, even though SRS SRI illuminates.









Inspection Procedure

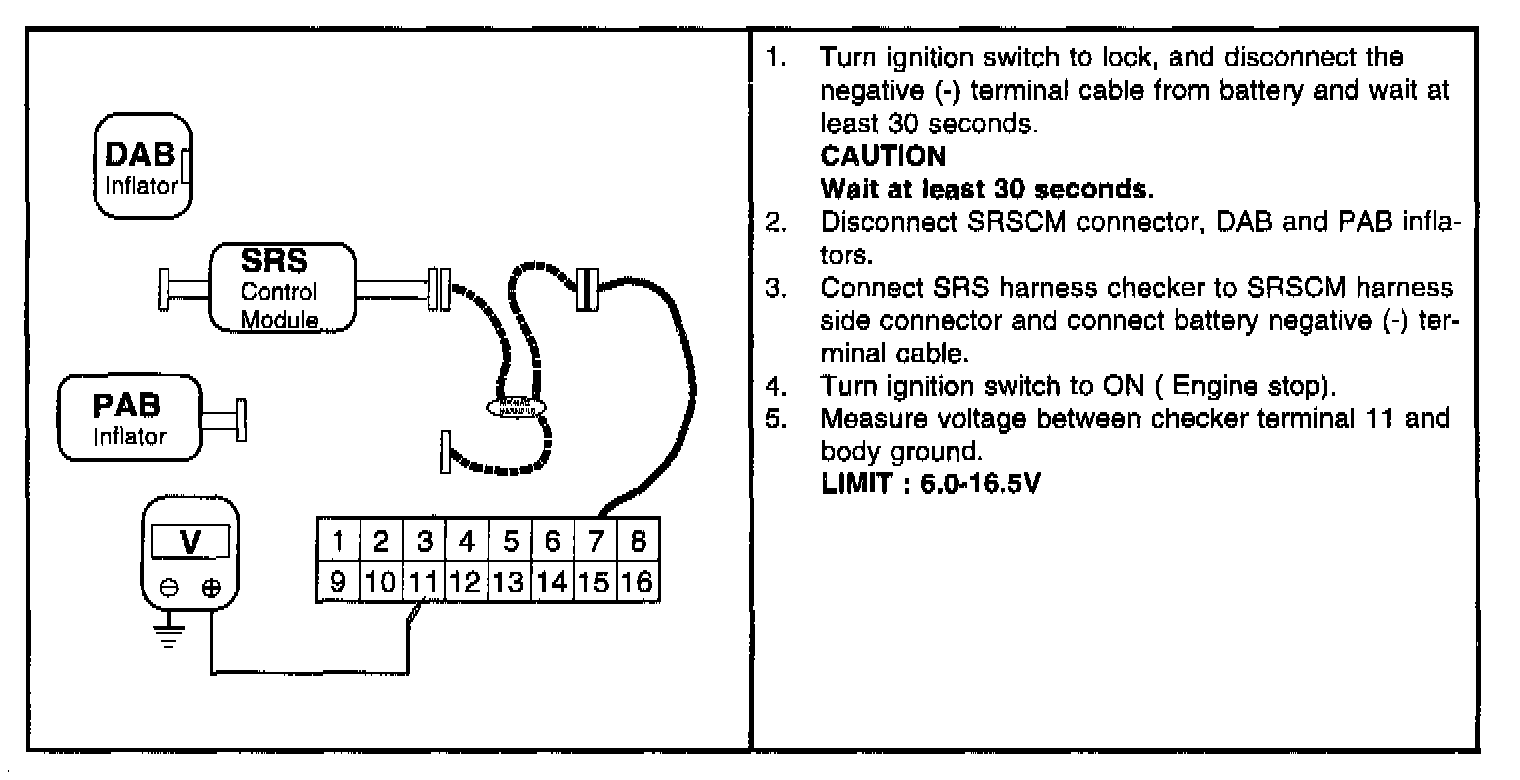

Step 1. Check Power Source:

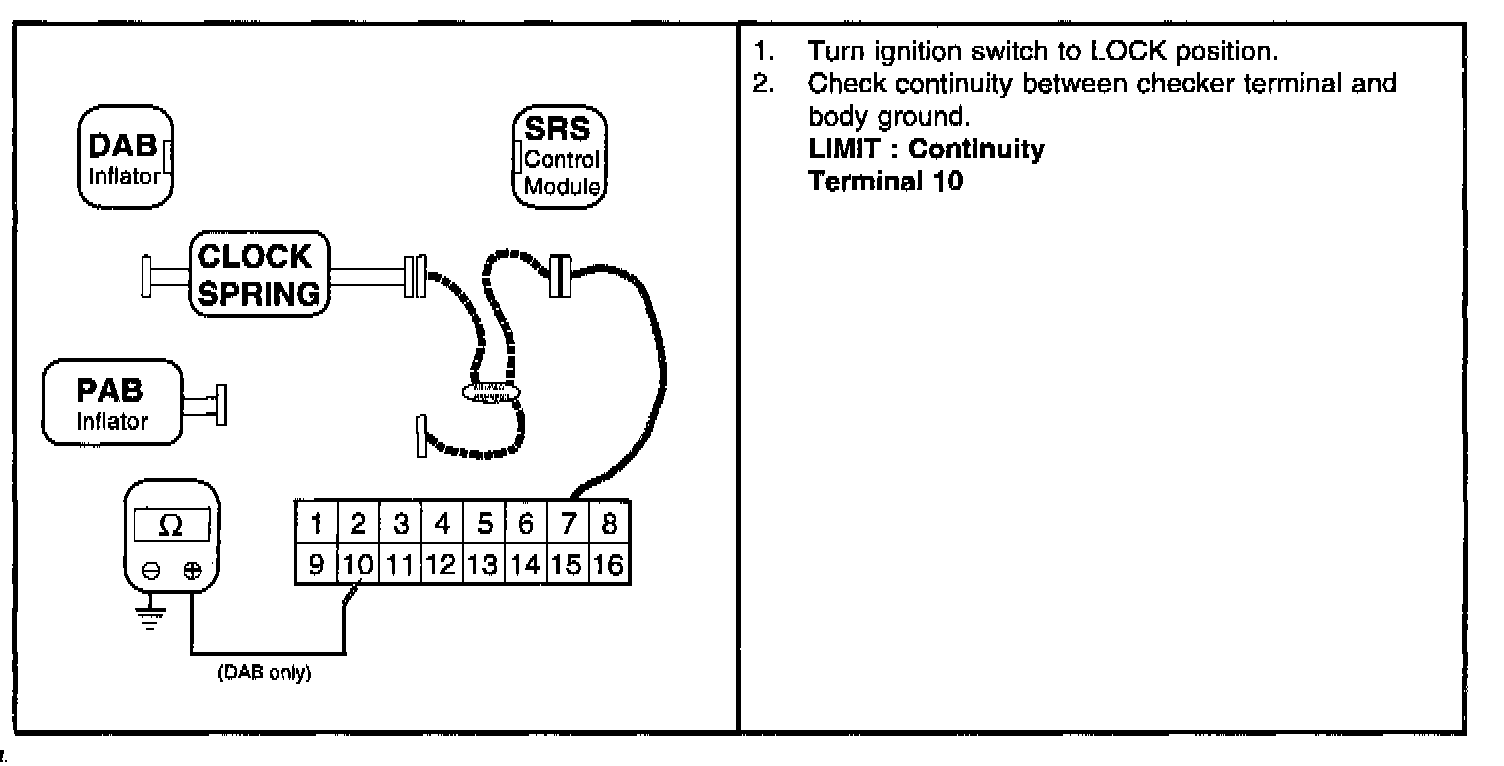

Step 2. Check Ground Connection:
