Passenger Air-Bag Module (Resistance Too Low)



Resistance Too Low, Short Circuit





The SRSCM shall measure the resistance of the PAB (Passenger Air-bag module) to detect a resistance which lies outside the allowed range. Never attempt to measure the resistance of PAB.

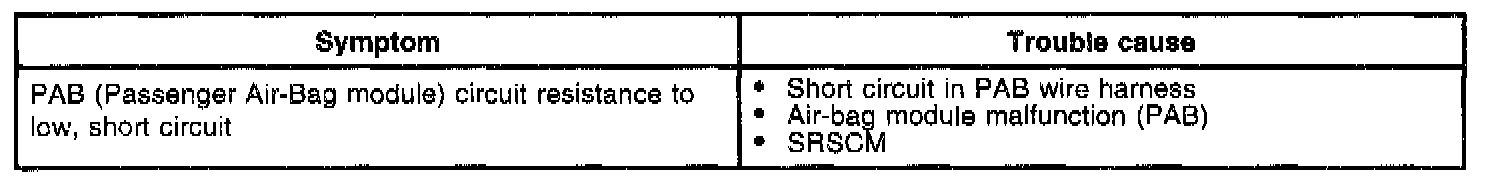

Symptom/Trouble Cause:









Inspection Procedure

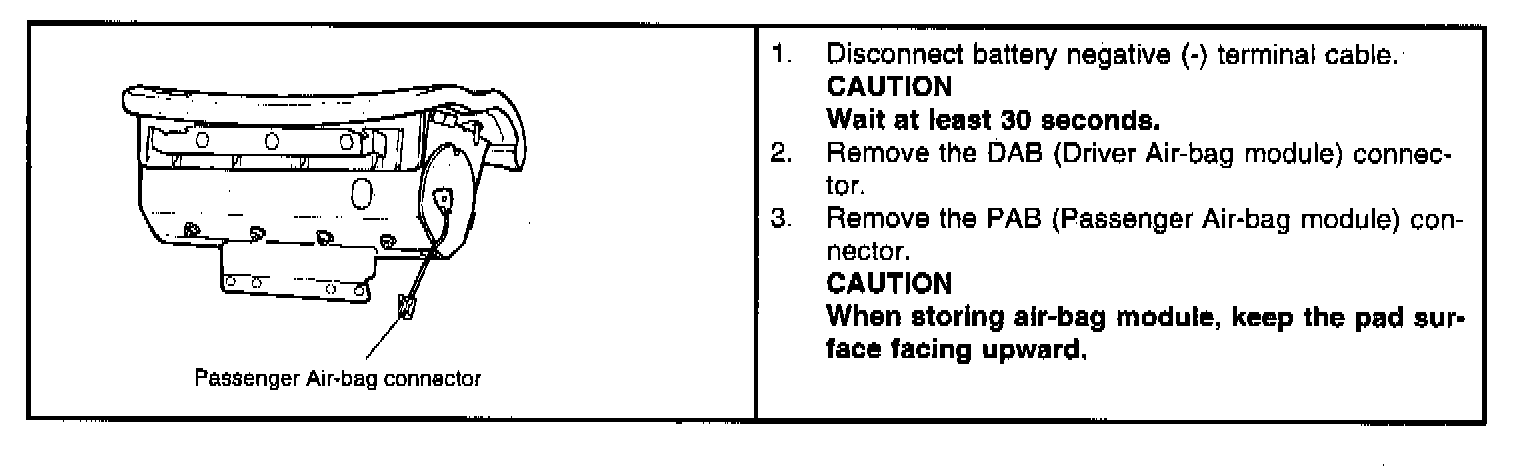

Step 1. Before Inspection:





Step 2. Check Inflator Circuit (Pass.):
