Passenger Air-Bag Module Circuit (Resistance Too High)

Resistance Too High, Open Circuit





The SRSCM shall measure resistance of the PAB (Passenger Air-Bag Module) to detect a resistance which lies outside the allowed range. Never Attempt to measure the resistance of the PAB

Symptom/Trouble Cause:

Inspection Procedure

Step 1. Before Inspection:

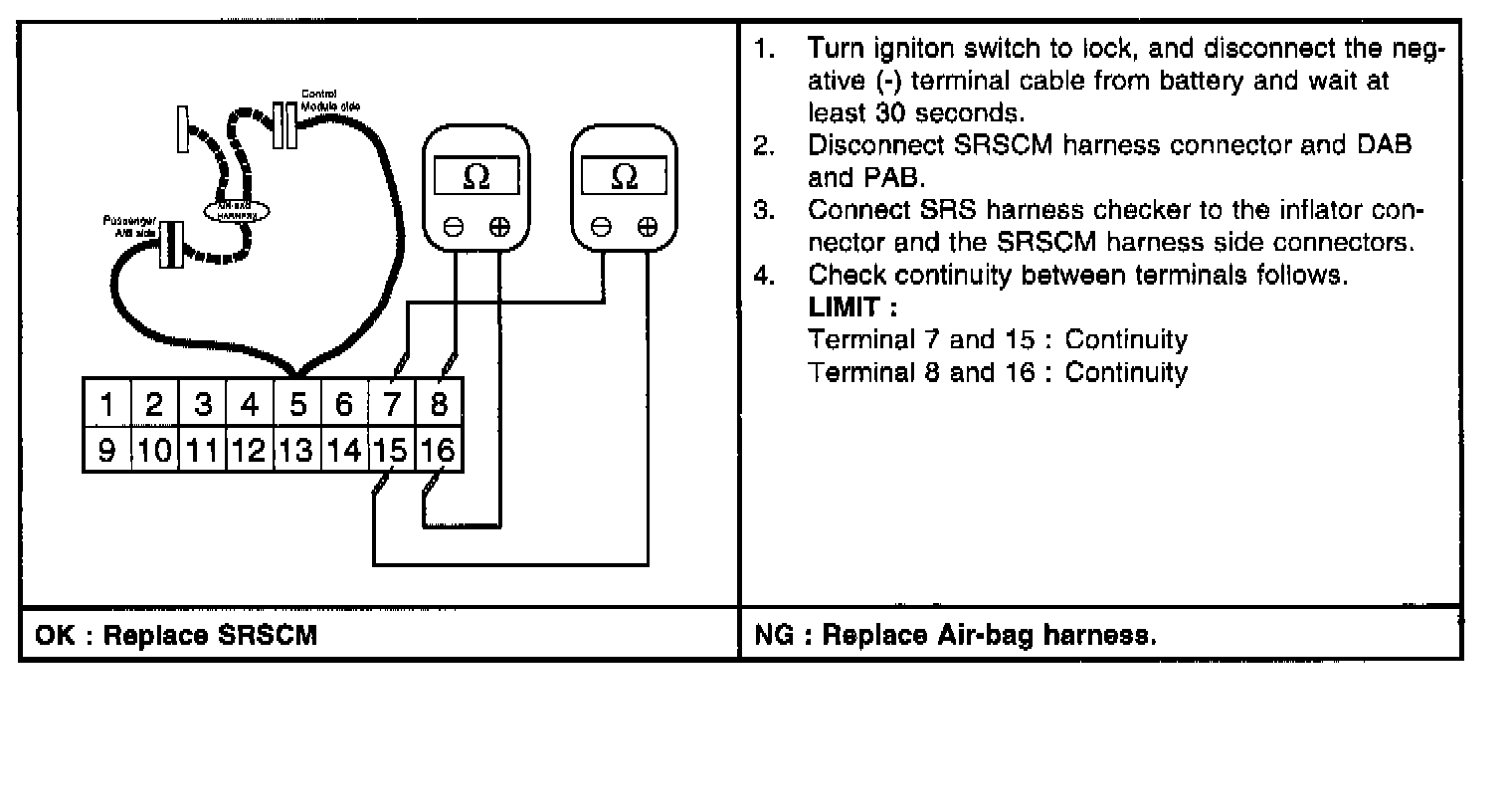

Step 2. Check Inflator Circuit (Pass.):
