Trunk / Liftgate: Adjustments








ADJUSTMENT

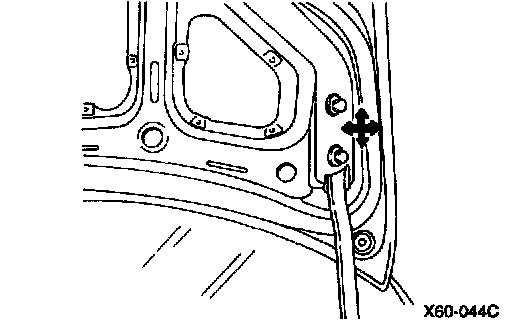

1. Adjust the striker upward or downward, and rightward or leftward until the trunk lid is flush with the rear edge of the body.
2. Adjust the trunk hinges upward or downward and rightward or leftward as necessary to equalizer the gap between the lid and body.
