Audio Inspection

AUDIO

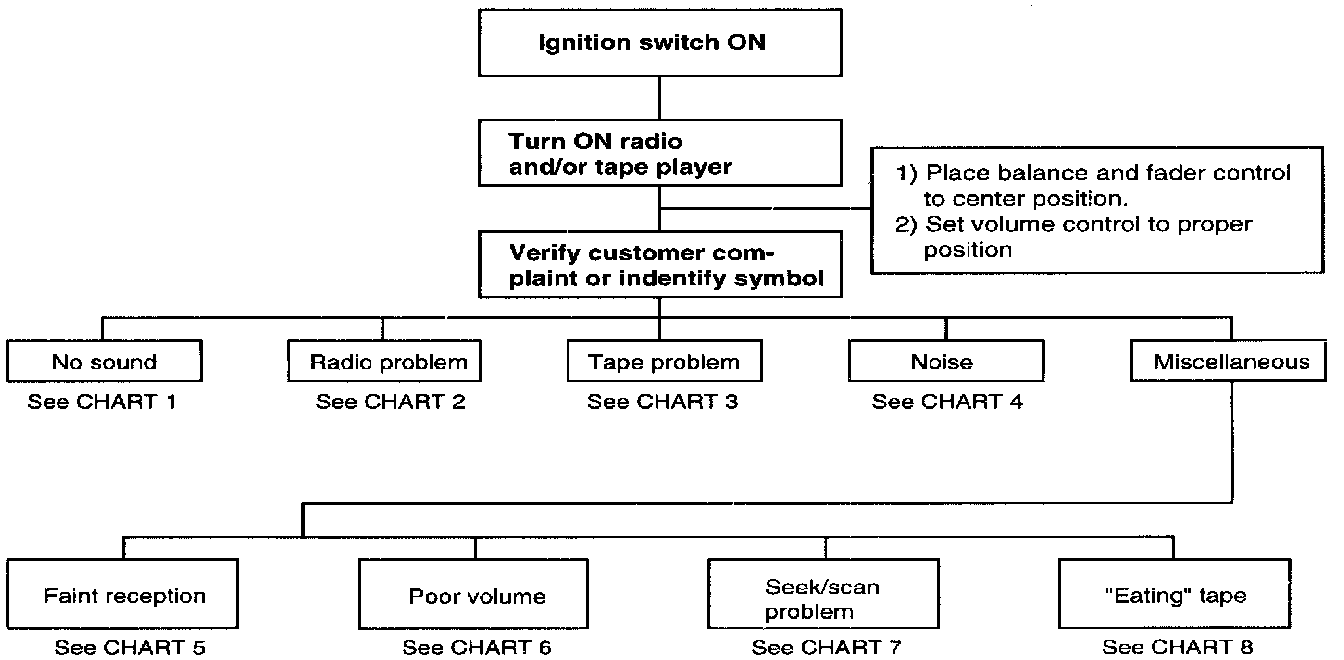

There are five areas where a problem can occur: the wiring harness, the radio, the cassette tape deck, the speaker, and the antenna. Troubleshooting will enable you to isolate the problem to a particular area.

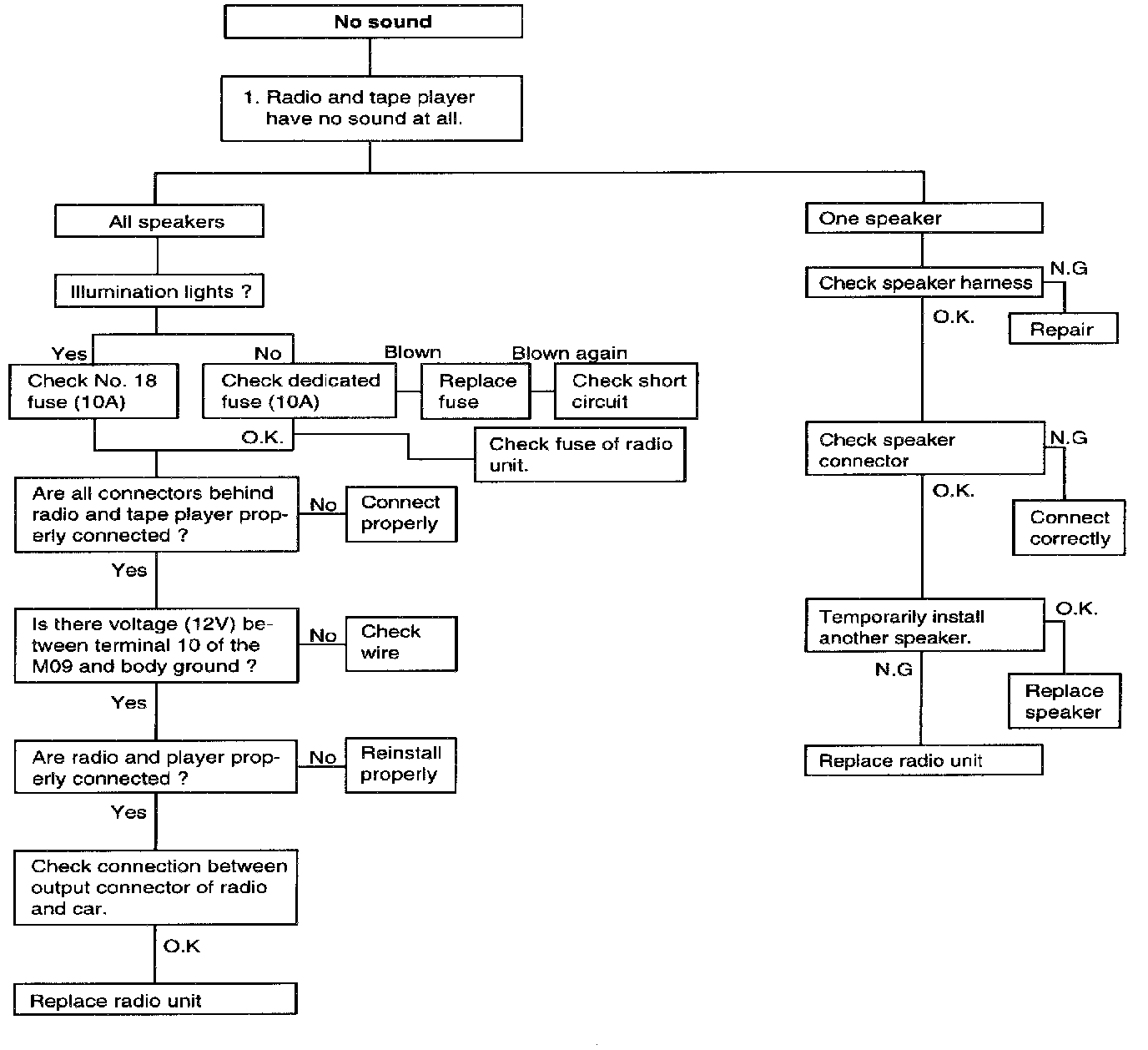

CHART 1




CHART 2




CHART 3

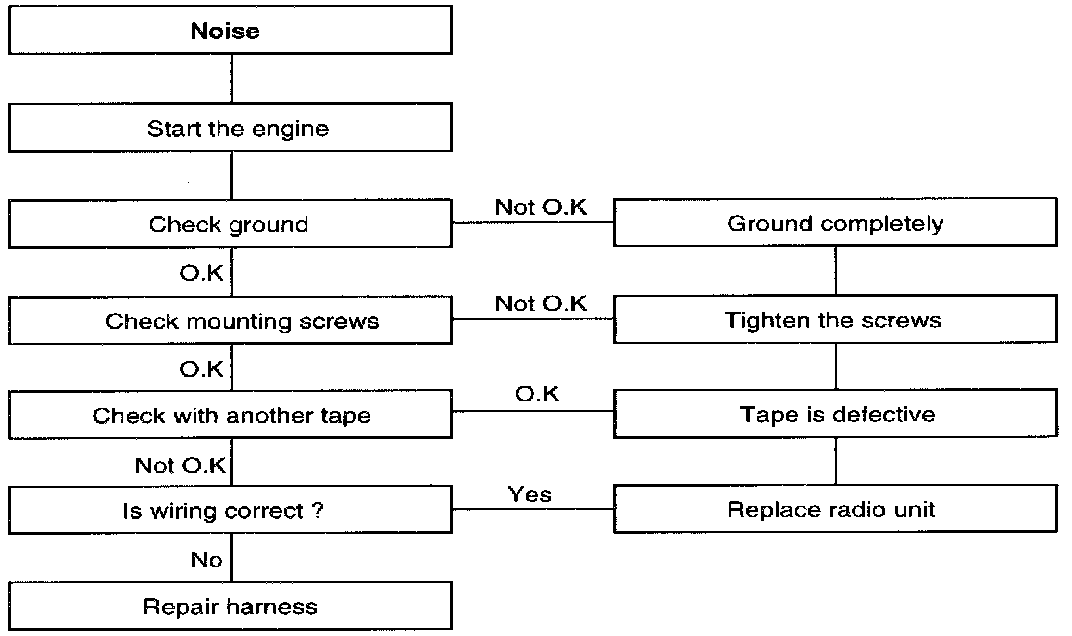

CHART 4

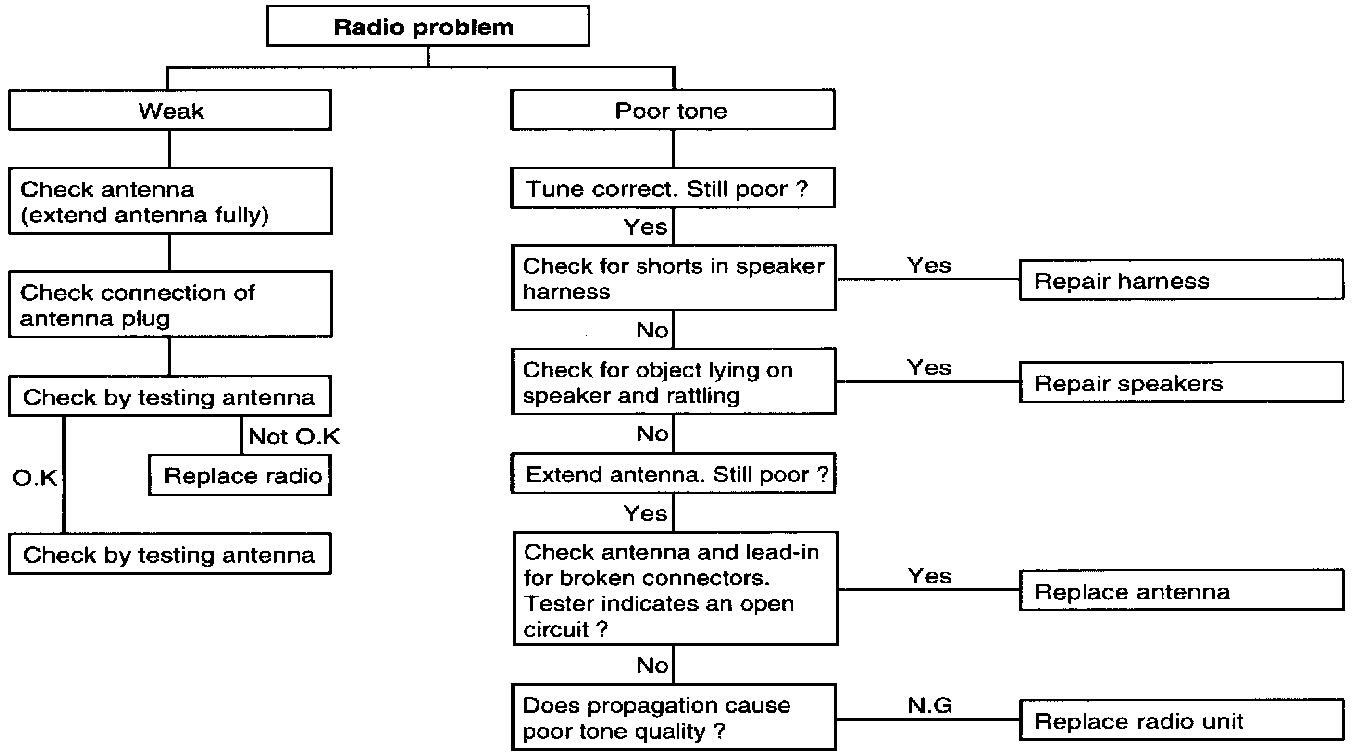

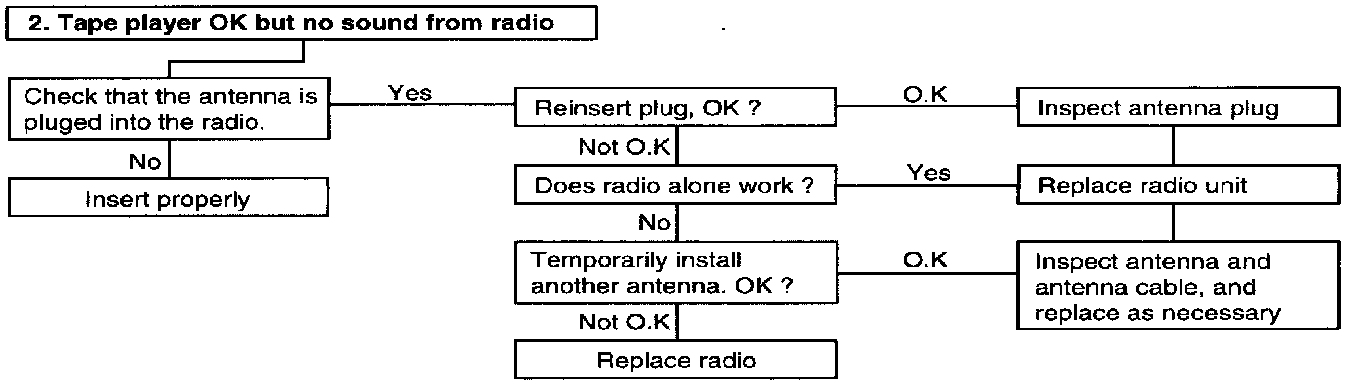

1. RADIO

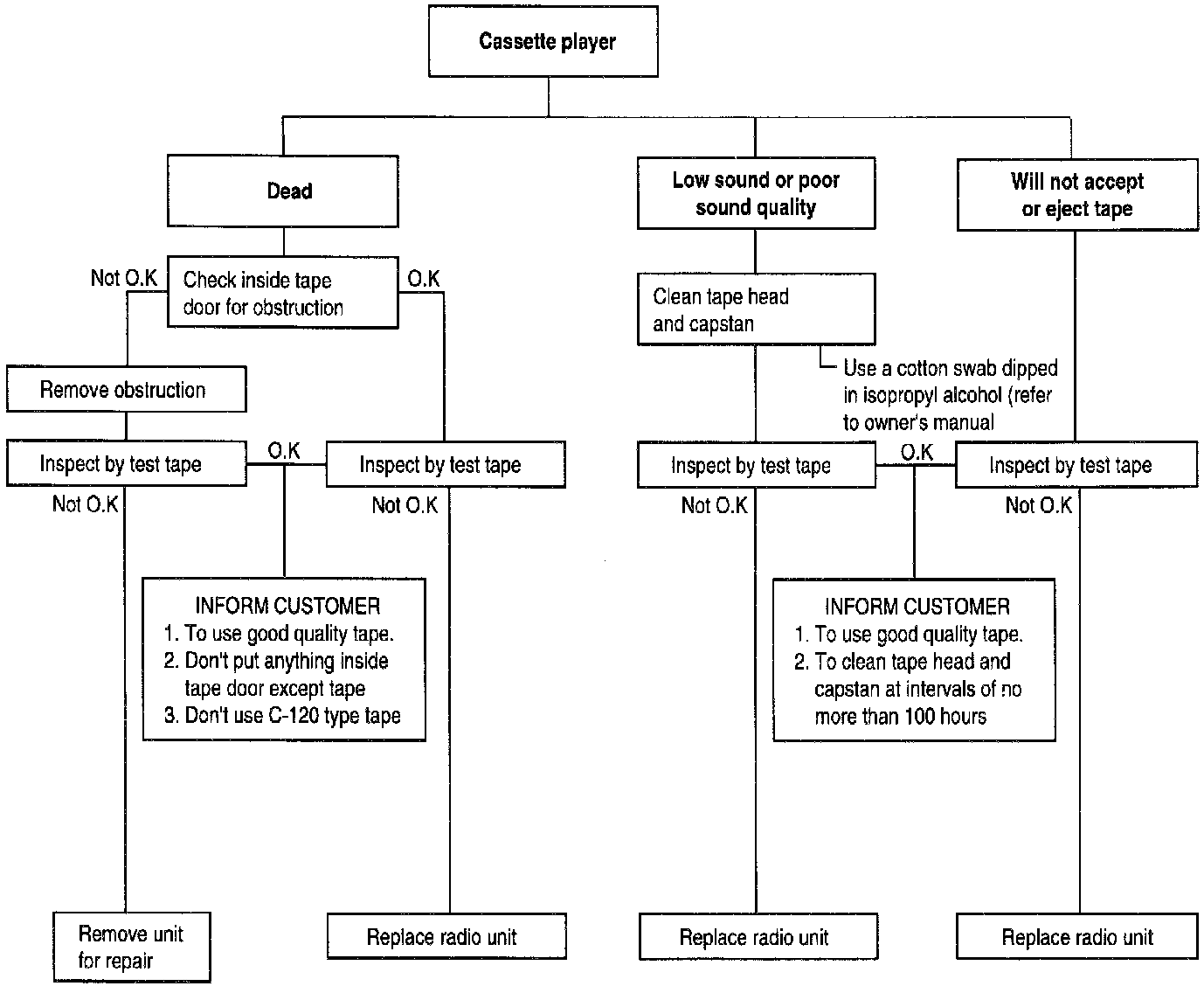

2. TAPE

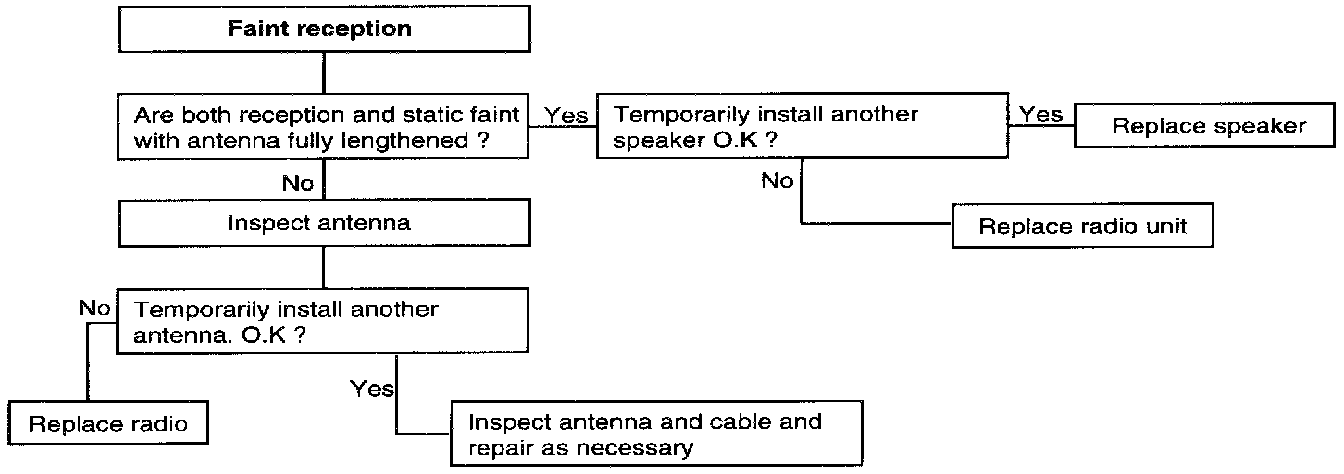

CHART 5

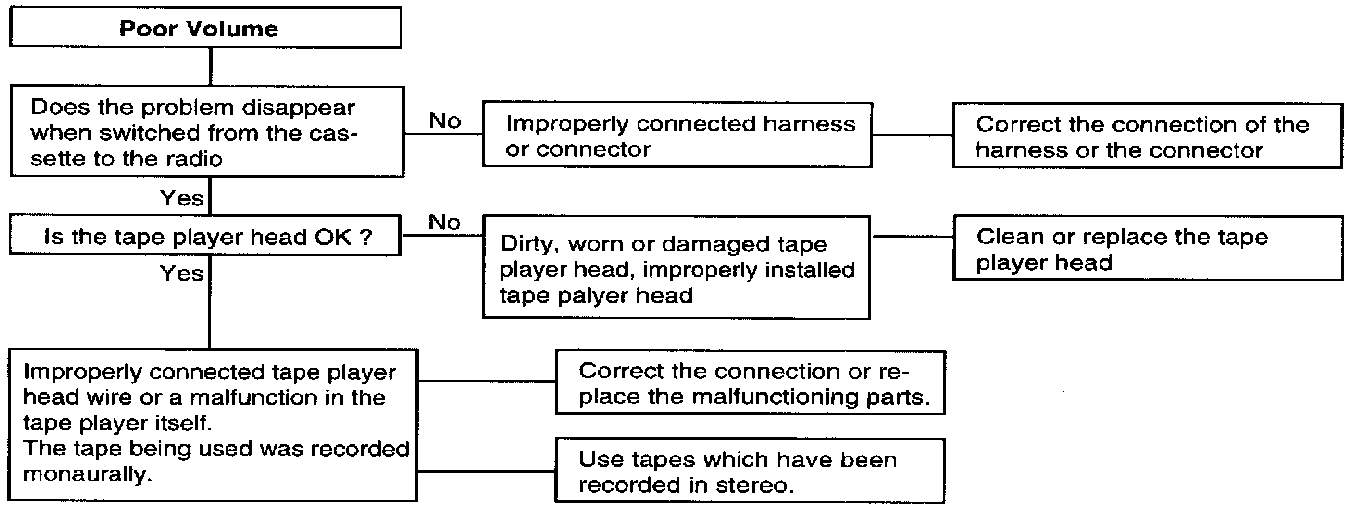

CHART 6




CHART 7

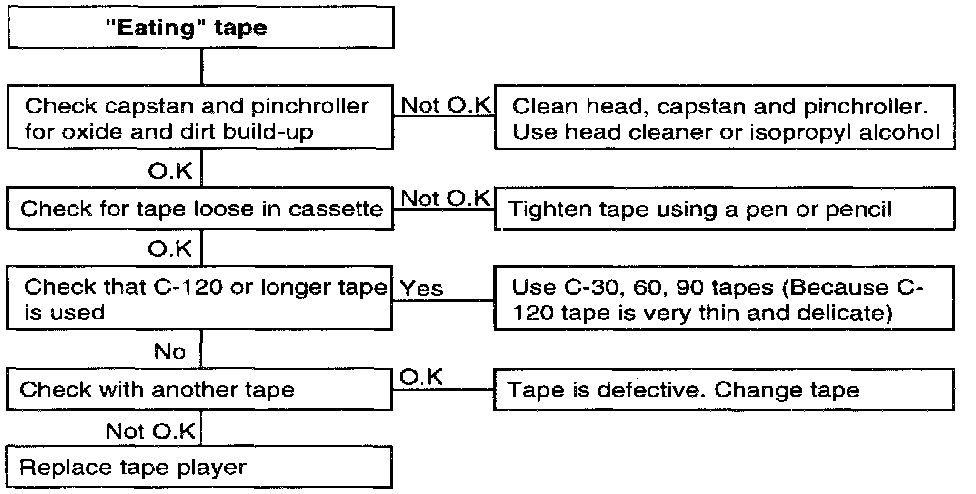

CHART 8
