Electrical Diagrams

Anti - Lock Brake System (Part 1 Of 3):

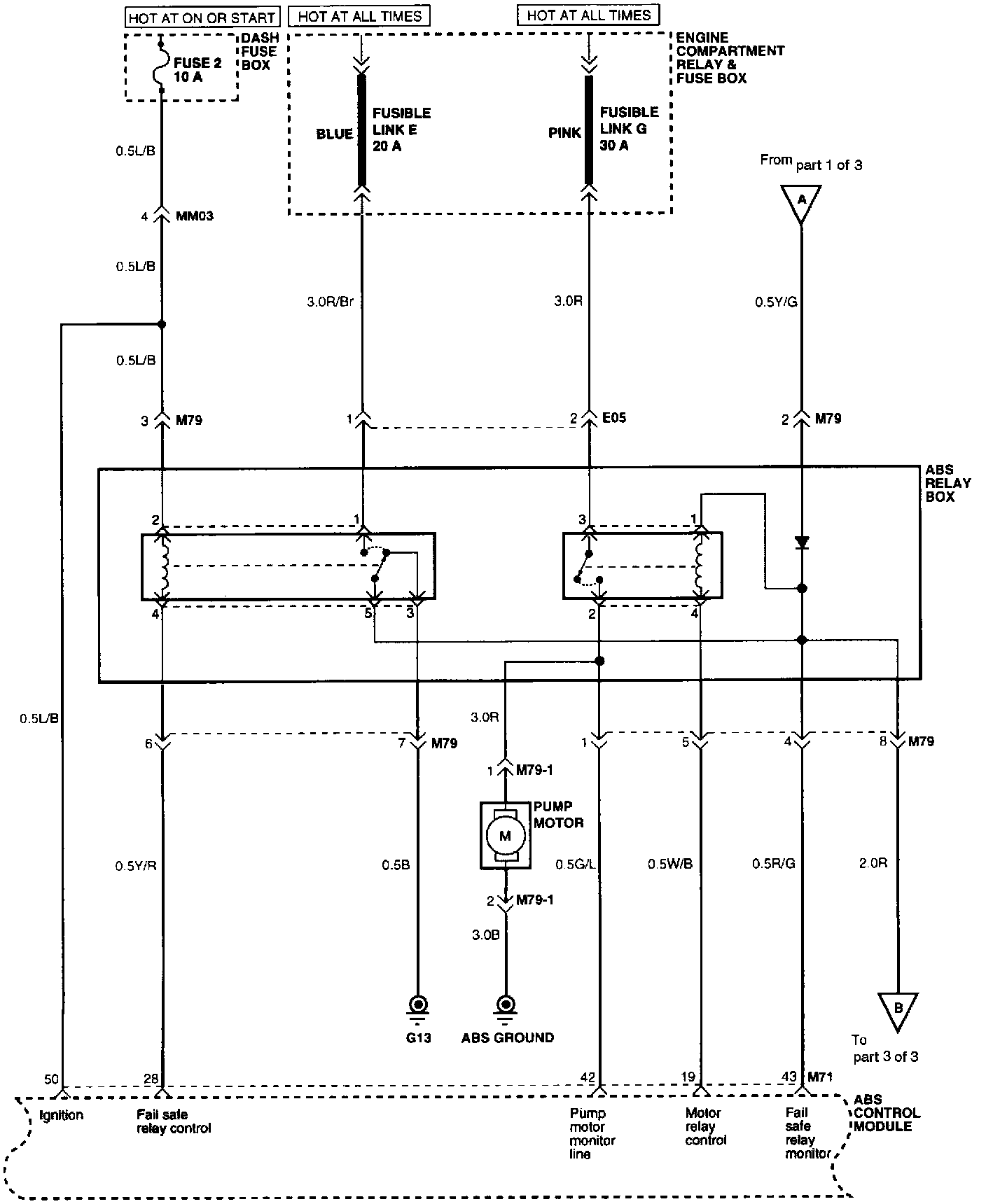

Anti - Lock Brake System (Part 2 Of 3):




Anti - Lock Brake System (Part 3 Of 3):
