Troubleshooting Hints

TROUBLESHOOTING

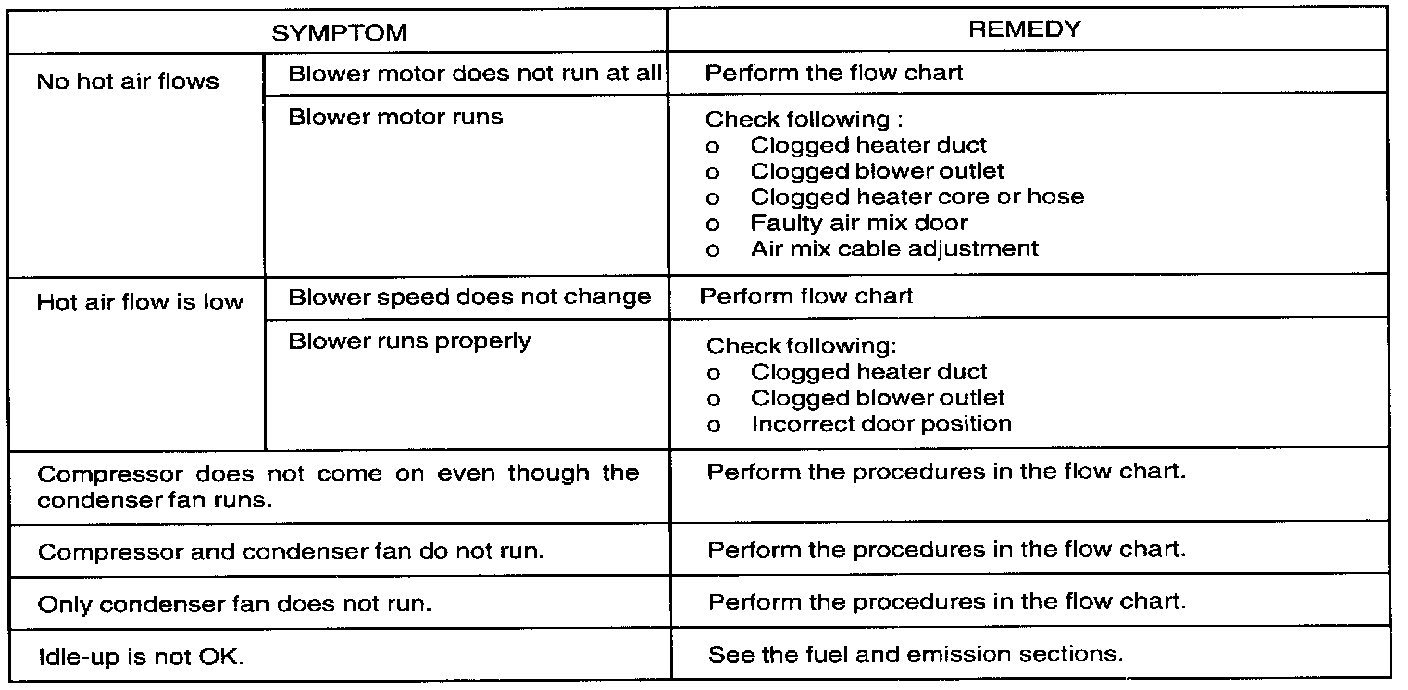

SYMPTOM CHART

QUICK TROUBLESHOOTING HINTS
1. Check the blower fuse (30 A) and fuse No.16 (10 A) for blower control system.
2. Check that blower relay (M23) is mounted in passenger compartment relay box.
3. Check fuse No.1 (10 A) in the dash fuse box and Fusible Link 1 (BLUE, 20 A) in the engine compartment relay & fuse box for A/C control system.
4. Check that A/C relay (E28) is mounted in engine compartment relay & fuse box.
5. Check that A/C system is properly charged.
6. Check condenser fuse (20 A) for condenser fan control and the Fusible Link D (BLUE, 20 A) for radiator fan control, which is mounted in the engine compartment relay & fuse box.
TROUBLESHOOTING

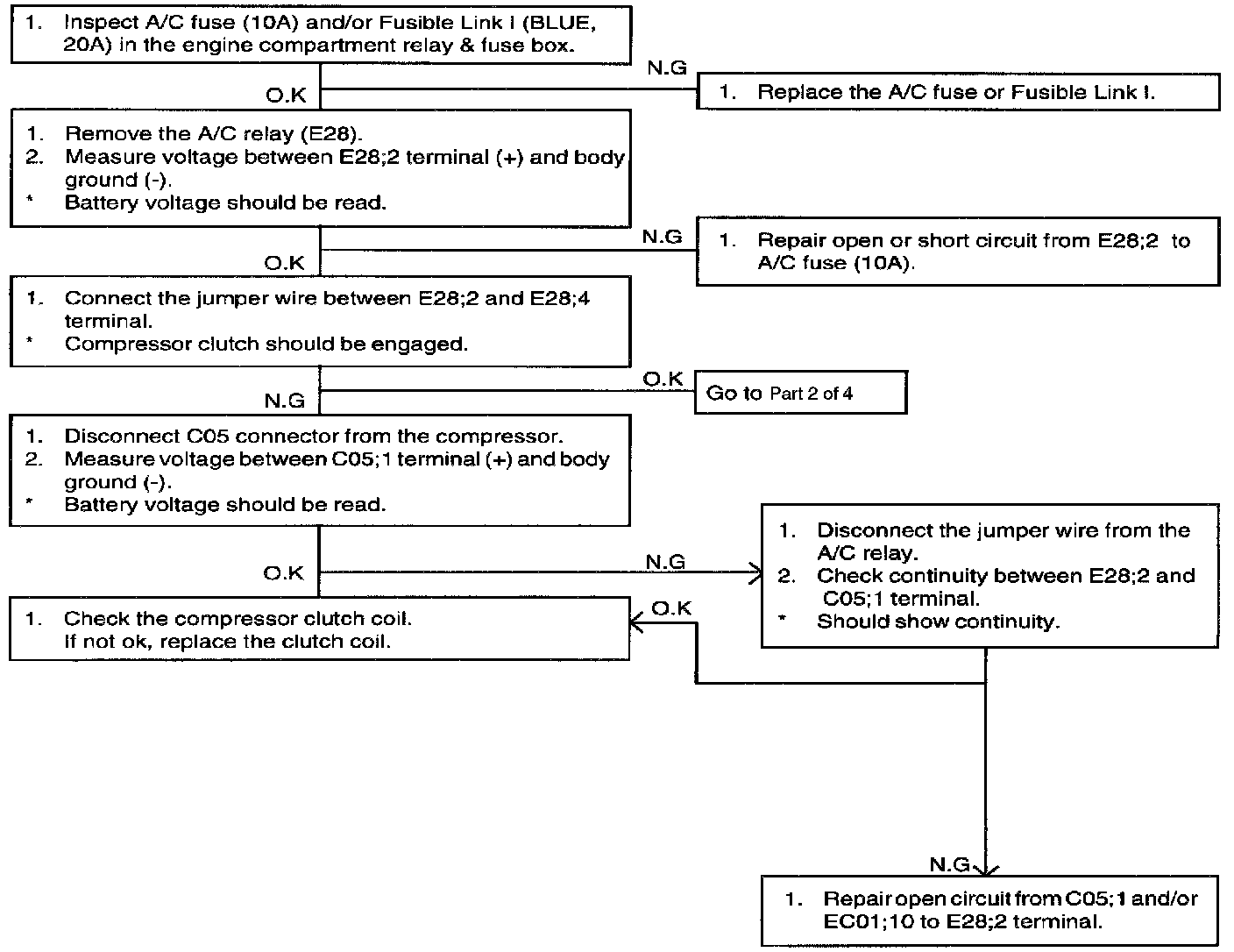

Part 1 Of 4:

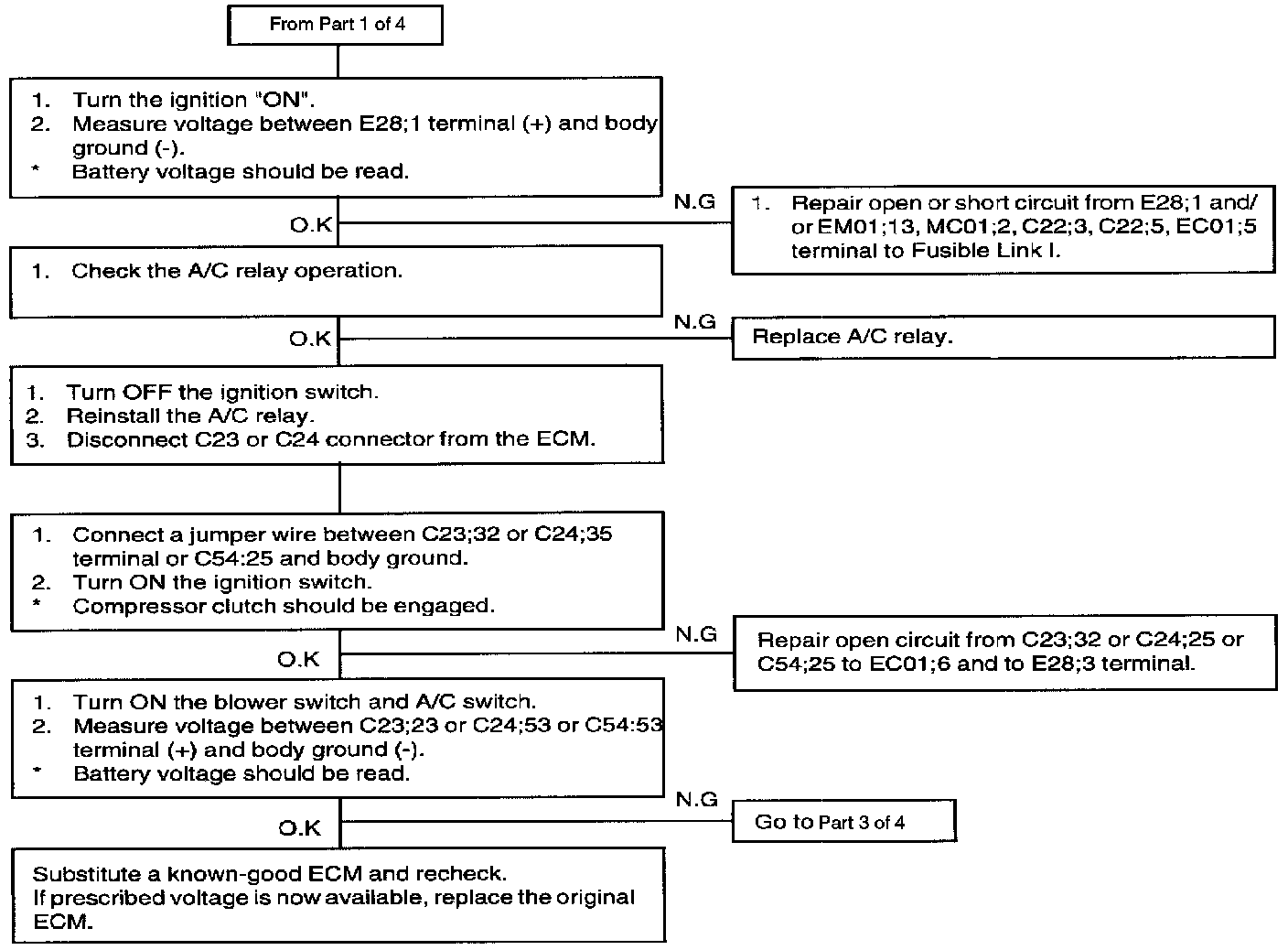

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

SYMPTOM: COMPRESSOR DOES NOT COME ON EVEN THOUGH THE CONDENSER FAN RUNS

Part 1 Of 2:

Part 2 Of 2:

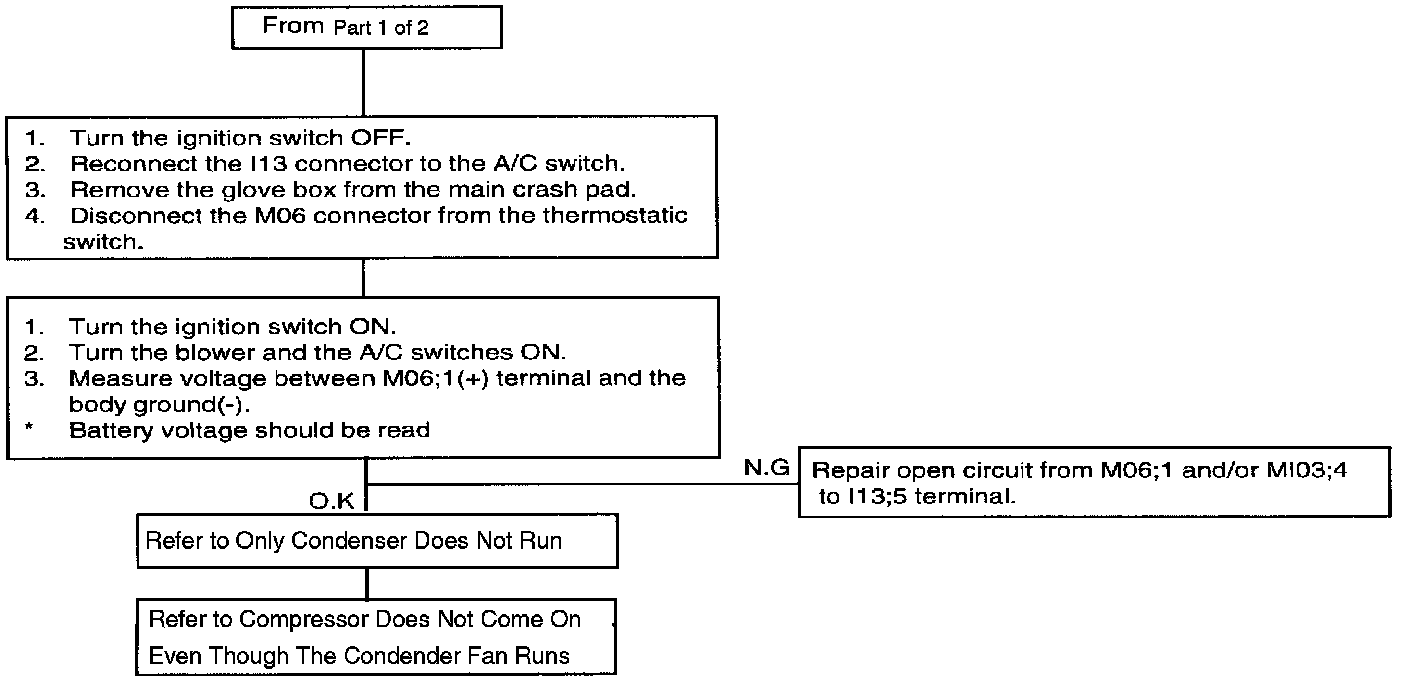

SYMPTOM: COMPRESSOR AND CONDENSER FAN DOES NOT RUN

Part 1 Of 2:

Part 2 Of 2:

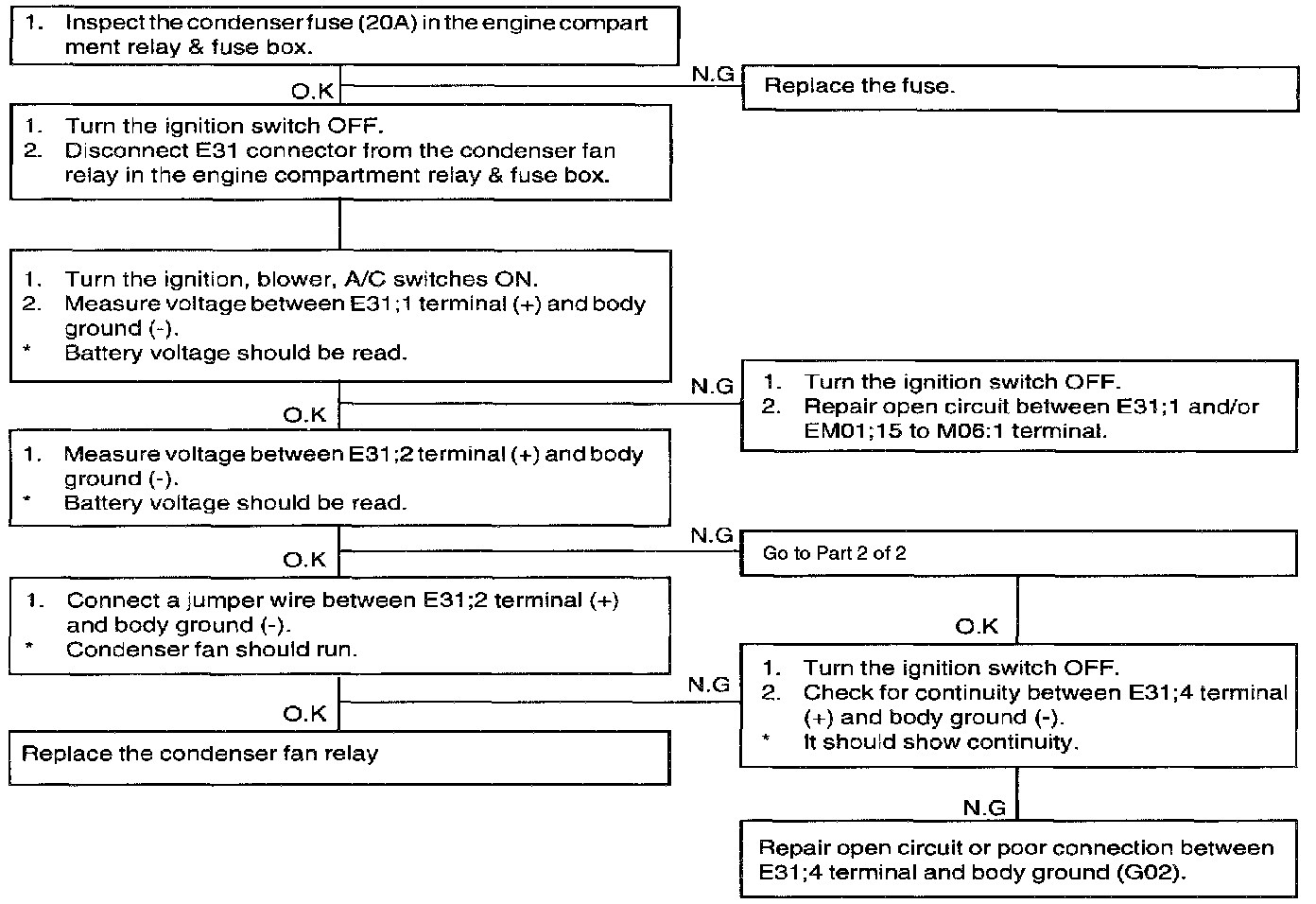

SYMPTOM: ONLY CONDENSER FAN DOES NOT RUN

Part 1 Of 2:

Part 2 Of 2:

SYMPTOM: BLOWER MOTOR DOES NOT RUN AT ALL

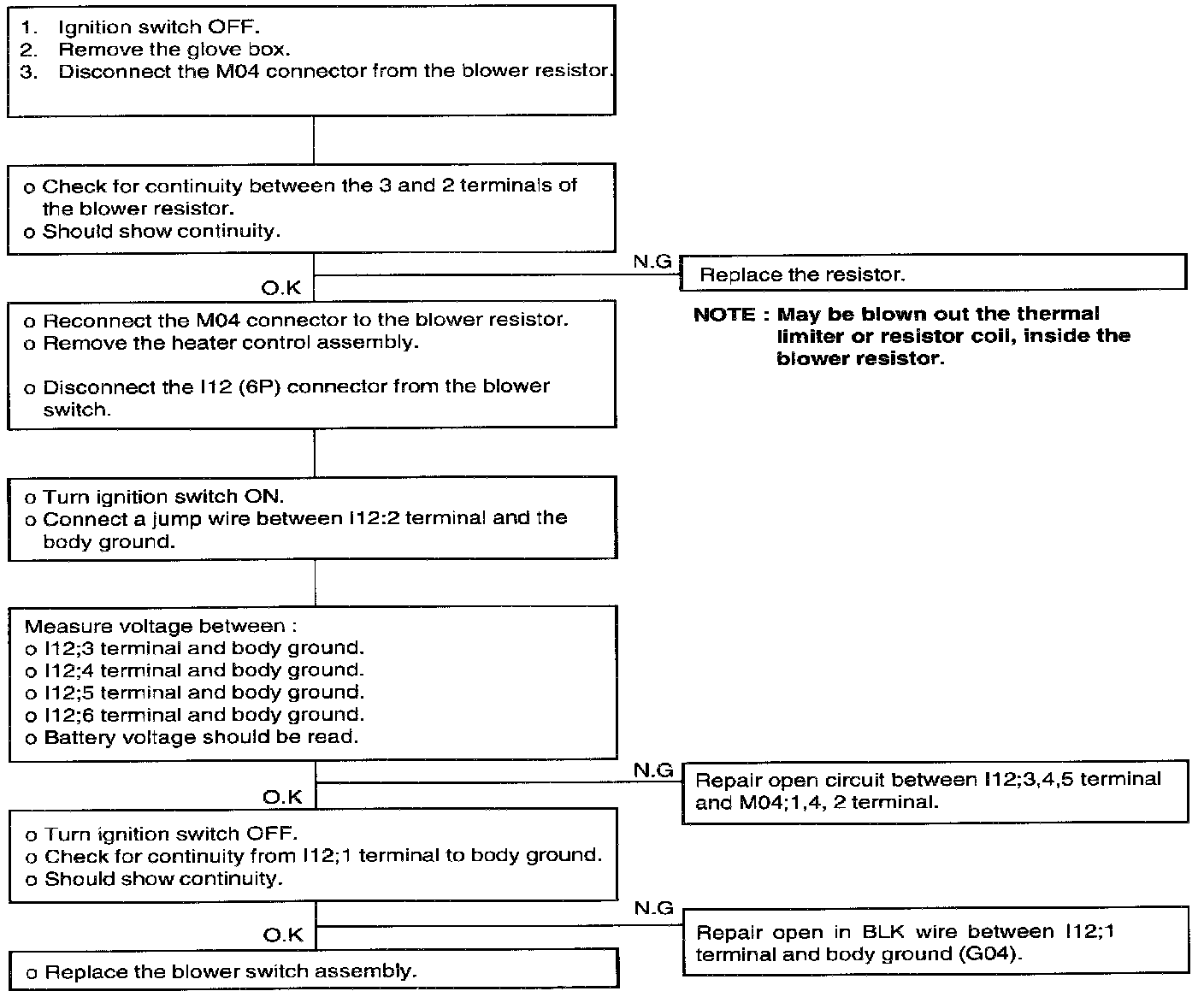

SYMPTOM: BLOWER MOTOR RUNNING SPEED DOES NOT CHANGE
