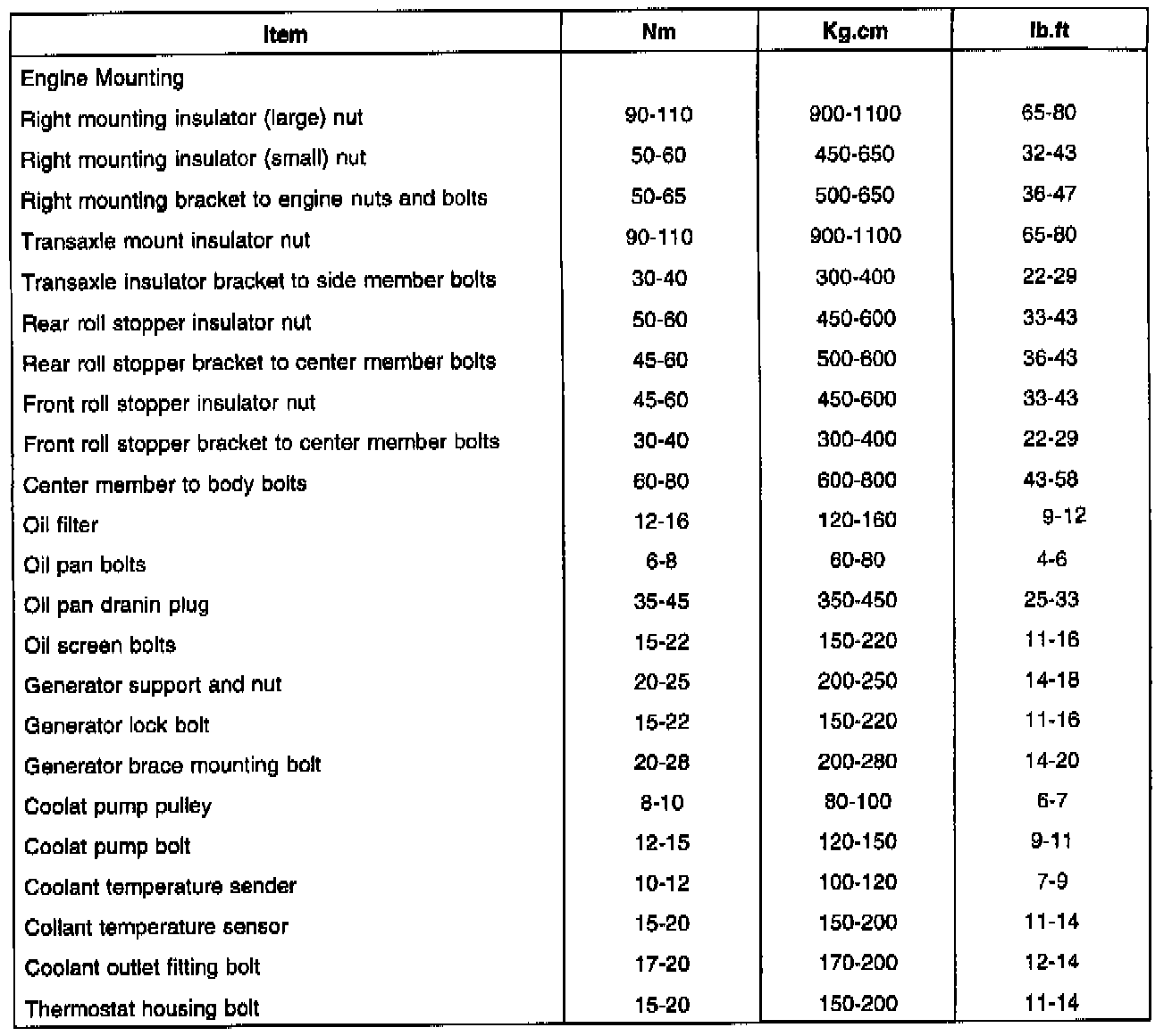

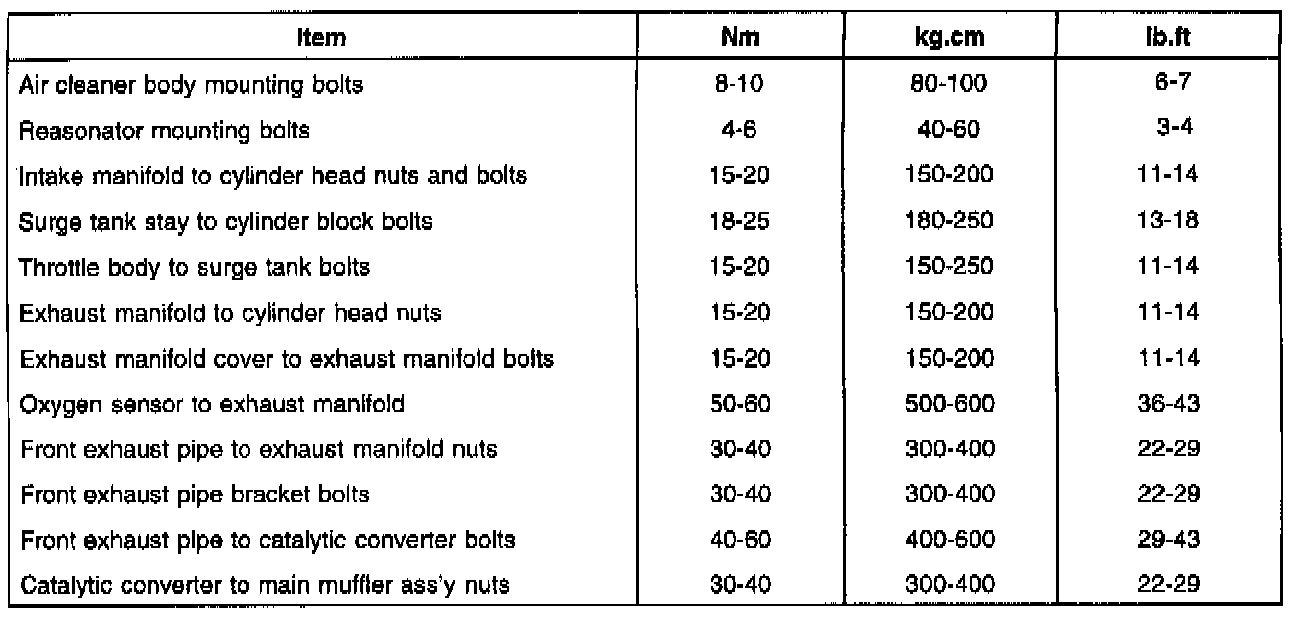

Tightening Torque Specifications

Part 1 of 12

Part 2 of 12

Part 3 of 12

Part 4 of 12

Part 5 of 12

Part 6 of 12

Tightening Sequence:

Part 7 of 12

Part 8 of 12

Part 9 of 12

Part 10 of 12

Part 11 of 12

Part 12 of 12
